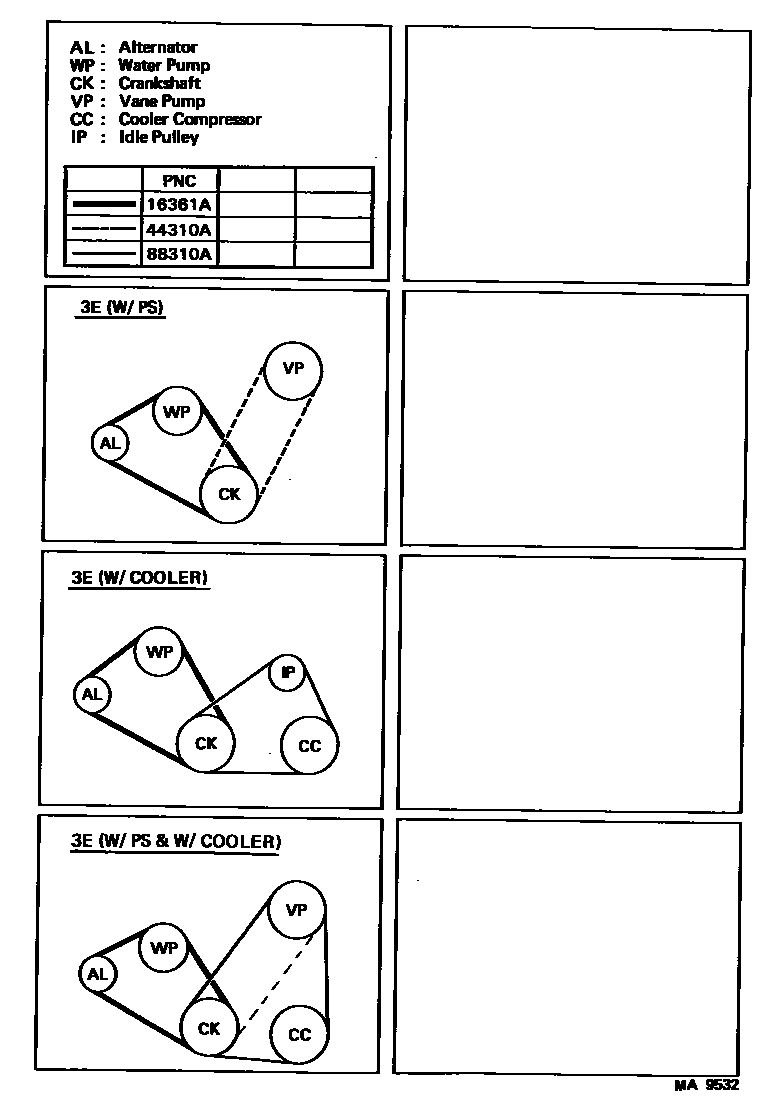

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02135i3E..EL31198608-198808

44310ABELT, V(FOR VANE PUMP)

main99365-50950iEL31..3FC,5F;EL31..4F..STD..CND198608-198808

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99365-50890iEL31..(3FC,5F)..USA198608-198805

main99365-50910iEL31..(DX,STD)..CND198805-198808

L=910

main99365-50910iEL31..TER..USA198608-198805

L=910,W/OPS,W/SUB-CONDENSER

main99365-51110iEL31..3FC,5F;EL31..4F..STD..CND198805-198808

W/PS

main99365-51120iEL31..3FC,5F;EL31..4F..STD..CND198608-198805

W/PS

main99365-51130iEL31..TER..USA198608-198805

W/PS,W/SUB-CONDENSER

3 parts on this diagram · 1 diagram in section
