ENGINE OVERHAUL GASKET KIT

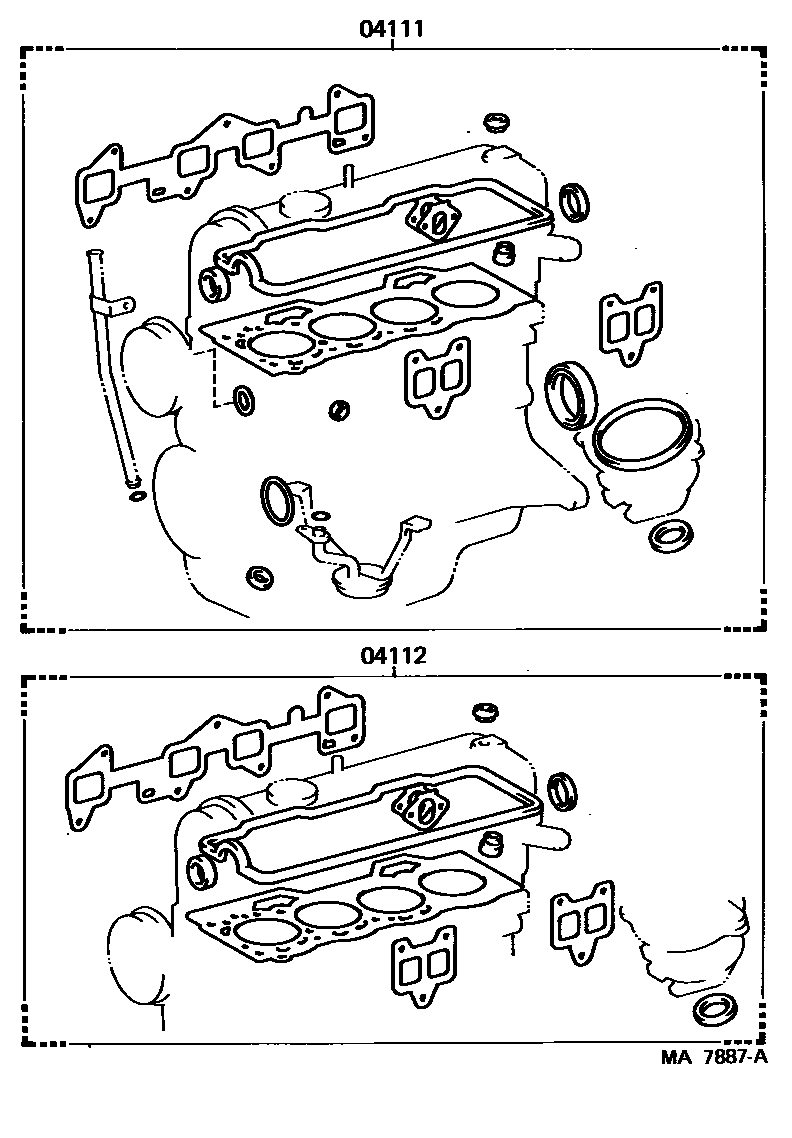

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-11050i198608-198708
sub04111-11051
main04111-11051i198708-198808
sub04111-11052
04112GASKET KIT, ENGINE VALVE GRIND
main04112-11040i198608-198808
sub04112-11041

2 parts on this diagram · 1 diagram in section
