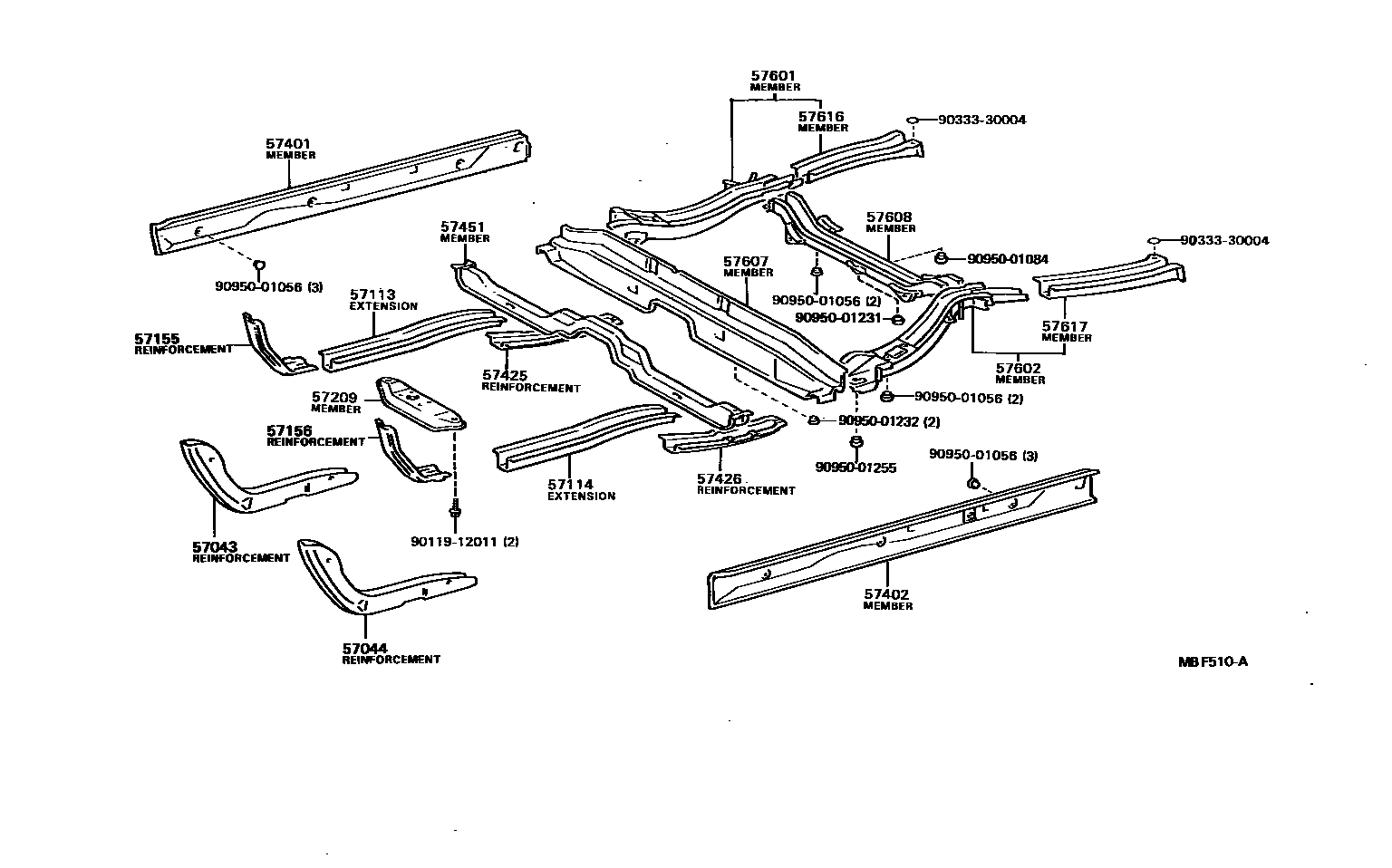

FLOOR SIDE MEMBER

0001 1 0002 1

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-16010iAL2#..ARL,EUR198205-198801

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-16010iAL2#..ARL,EUR198205-198801

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-16030iAL25..GEN198408-198801

main57113-16040iAL25..ARL198308-198408

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-16030iAL20,25..RHD;AL20,25..LHD..GEN198205-198408

main57114-16040iAL25..ARL198308-198408

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-16010iAL25..ARL198308-198408

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-16030iAL25198408-198801

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-16040iAL20,21..MTM198205-198408

main57209-16050iAL25..ARL;AL25..FRG,SDZ198605-198801

main57209-16060iAL20,21..3FC198205-198408

main57209-16070iAL25..EUG;AL25..GEN; AL25..SDZ198605-198801

SWEDEN SPEC

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-16100iAL25198208-198801

main57401-16120iAL20,21198205-198408

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-16100iAL25198208-198801

main57402-16120iAL20,21198205-198408

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-16020iAL2#198205-198801

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-16020iAL2#198205-198801

57451MEMBER, FRONT FLOOR CROSS

main57408-16010iAL25198208-198801

main57408-16020iAL20,21198205-198408

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-16040iAL20,21198205-198408

main57601-16110iAL25198208-198708

main57601-16111iAL25198708-198801

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-16040iAL20,21198205-198408

main57602-16110iAL25198208-198708

main57602-16111iAL25198708-198801

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-16010iAL20,21198205-198408

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-16040iAL20,21198205-198408

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-16900iAL20,21198205-198408

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-16900iAL20,21198205-198408

9011912011

main90119-12011

9033330004

main90333-30004

9095001056

main90950-01056

9095001084

main90950-01084

9095001231

main90950-01231

9095001232

main90950-01232

9095001255

main90950-01255

25 parts on this diagram · 2 diagrams in section
