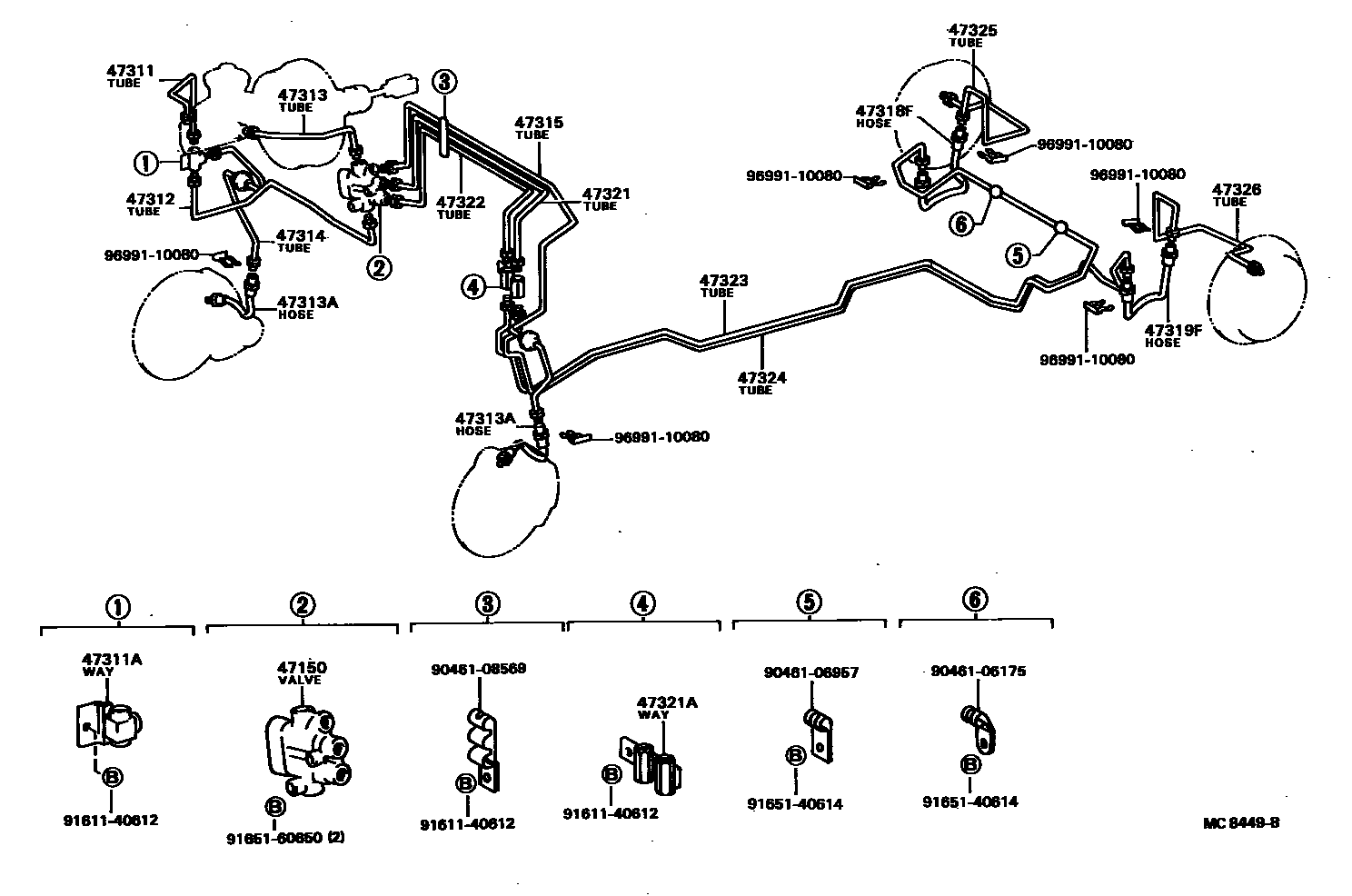

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47150VALVE ASSY, PROPORTIONING

main47150-16020iAL20,25..RHD198402-198408

main47150-16040iAL25..ARL198705-198801

main47150-16050iAL25..EUR,GEN198705-198801

47311TUBE, FRONT BRAKE, NO.1

main47311-16040iAL20,25..RHD198205-198408

main47311-16041iAL25..RHD198408-198801

main47311-16060iAL2#..LHD198205-198402

main47311-16061iAL2#..LHD198402-198408

main47311-16062iAL25..LHD198408-198801

main47311-16070iAL21..3DS..DLX; AL25..SDZ198208-198402

SWEDEN SPEC

main47311-16071iAL21..3DS..DLX; AL25..SDZ198402-198408

SWEDEN SPEC

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10004iAL20,25..RHD198205-198801

main90413-10124iAL2#..LHD198205-198801

47312TUBE, FRONT BRAKE, NO.2

main47312-16040iAL20,25..RHD198205-198408

main47312-16041iAL25..RHD198408-198801

main47312-16050iAL2#..LHD198205-198402

main47312-16051iAL25..LHD198408-198801

main47312-16052iAL2#..LHD198402-198408

main47312-16060iAL21..3DS..DLX; AL25..SDZ198208-198402

SWEDEN SPEC

main47312-16061iAL21..3DS..DLX; AL25..SDZ198402-198408

SWEDEN SPEC

47313TUBE, FRONT BRAKE, NO.3

main47313-16050iAL20,25..RHD198205-198408

main47313-16051iAL25..RHD198408-198801

main47313-16060iAL2#..LHD198205-198402

main47313-16061iAL25..LHD198408-198801

main47313-16062iAL2#..LHD198402-198408

main47313-16070iAL21..3DS..DLX; AL25..SDZ198208-198402

SWEDEN SPEC

main47313-16071iAL21..3DS..DLX; AL25..SDZ198402-198408

SWEDEN SPEC

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02437×2iAL2#198205-198801

47314TUBE, FRONT BRAKE, NO.4

main47314-16040iAL20,25..RHD198205-198408

main47314-16041iAL25..RHD198408-198801

main47314-16050iAL2#..LHD198205-198408

main47314-16051iAL25..LHD198408-198801

main47314-16060iAL21..3DS..DLX; AL25..SDZ198208-198408

SWEDEN SPEC

47315TUBE, FRONT BRAKE, NO.5

main47315-16020iAL20,25..RHD198205-198408

main47315-16021iAL25..RHD198408-198801

main47315-16030iAL2#..LHD198205-198402

main47315-16031iAL25..LHD198408-198801

main47315-16032iAL2#..LHD198402-198408

main47315-16040iAL21..3DS..DLX; AL25..SDZ198208-198402

SWEDEN SPEC

main47315-16041iAL21..3DS..DLX; AL25..SDZ198402-198408

SWEDEN SPEC

47318FHOSE, FLEXIBLE(FOR REAR RH)

main96950-33005iAL25198208-198801

main96950-33205iAL20,21198205-198408

47319FHOSE, FLEXIBLE(FOR REAR LH)

main96950-32605iAL25198208-198801

main96950-33205iAL20,21198205-198408

47321TUBE, REAR BRAKE, NO.1

main47321-16030iAL20,25..RHD198205-198408

main47321-16031iAL25..RHD198408-198801

47321AWAY(FOR REAR BRAKE TUBE)

main90412-10096iAL20,25..RHD198205-198801

47322TUBE, REAR BRAKE, NO.2

main47322-16020iAL20,25..RHD198205-198408

main47322-16021iAL25..RHD198408-198801

47323TUBE, REAR BRAKE, NO.3

main47323-16030iAL20..RHD198205-198408

main47323-16040iAL20,21..LHD198205-198402

main47323-16042iAL20,21..LHD198402-198408

main47323-16050iAL25..RHD198208-198408

main47323-16051iAL25..RHD198408-198801

main47323-16060iAL25..LHD198208-198402

main47323-16061iAL25..LHD198408-198801

main47323-16062iAL25..LHD198402-198408

main47323-16070iAL21..3DS..DLX198208-198402

SWEDEN SPEC

main47323-16071iAL21..3DS..DLX198402-198408

SWEDEN SPEC

main47323-16080iAL25..SDZ198208-198402

SWEDEN SPEC

main47323-16081iAL25..SDZ198402-198408

SWEDEN SPEC

47324TUBE, REAR BRAKE, NO.4

main47324-16020iAL20..RHD198205-198408

main47324-16030iAL20,21..LHD198205-198402

main47324-16032iAL20,21..LHD198402-198408

main47324-16040iAL25..RHD198208-198408

main47324-16041iAL25..RHD198408-198801

main47324-16050iAL25..LHD198208-198402

main47324-16051iAL25..LHD198408-198801

main47324-16052iAL25..LHD198402-198408

main47324-16060iAL21..3DS..DLX198208-198402

SWEDEN SPEC

main47324-16061iAL21..3DS..DLX198402-198408

SWEDEN SPEC

main47324-16070iAL25..SDZ198208-198402

SWEDEN SPEC

main47324-16071iAL25..SDZ198402-198408

SWEDEN SPEC

47325TUBE, REAR BRAKE, NO.5

main47325-16030iAL20,21198205-198408

main47325-16040iAL25198208-198408

main47325-16041iAL25198408-198801

main47325-16050iAL21..3DS..DLX198208-198408

SWEDEN SPEC

main47325-16060iAL25..SDZ198208-198408

SWEDEN SPEC

47326TUBE, REAR BRAKE, NO.6

main47326-16010iAL20,21198205-198408

main47326-16020iAL25198208-198408

main47326-16021iAL25198408-198801

main47326-16030iAL21..3DS..DLX198208-198408

SWEDEN SPEC

main47326-16040iAL25..SDZ198208-198408

SWEDEN SPEC

9046106175

main90461-06175

9046106957

main90461-06957

9046108569

main90461-08569

9161140612

main91611-40612

9165140614

main91651-40614

9165160650

main91651-60650

9699110080

main96991-10080

24 parts on this diagram · 4 diagrams in section
