INDICATOR

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11017iAL11..3FC197908-198204

12V 1.7W

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-12030iAL11..3FC197908-198204

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-16010iAL11..RHD198008-198204

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11014iAL11197901-198204

14V 1.4W,12V 1.4W

81931LENS, HEATER CONTROL INDICATOR

main81943-16010iAL11..RHD197901-198008

main81943-16011iAL11..RHD198008-198204

main81943-16021iAL11..LHD198008-198204

main81943-16030iAL11..LHD197901-198008

main81943-16040iAL11..LHD197901-198008

W/BOOST VENTILATOR

main81943-16041iAL11..LHD198008-198204

W/BOOST VENTILATOR

81942SHEET, HEATER CONTROL NAME

main81942-16010iAL11..RHD197901-198008

main81942-16011iAL11..RHD198008-198204

8401

9356655514

main93566-55514

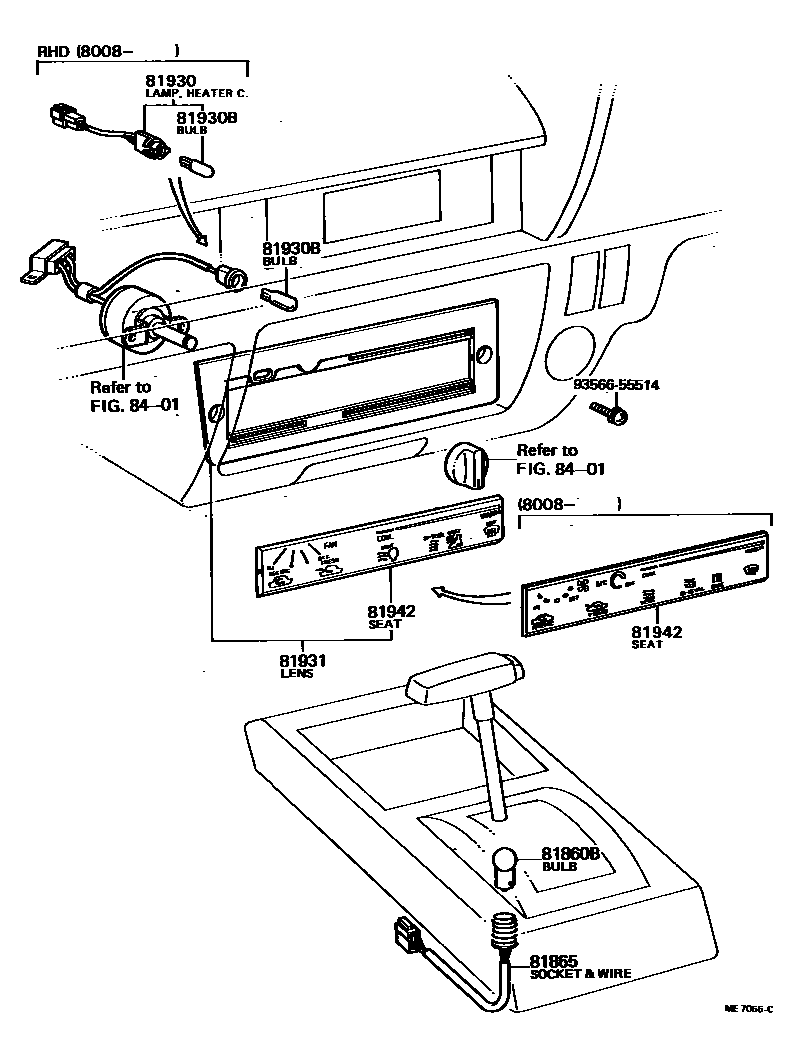

8 parts on this diagram · 1 diagram in section
