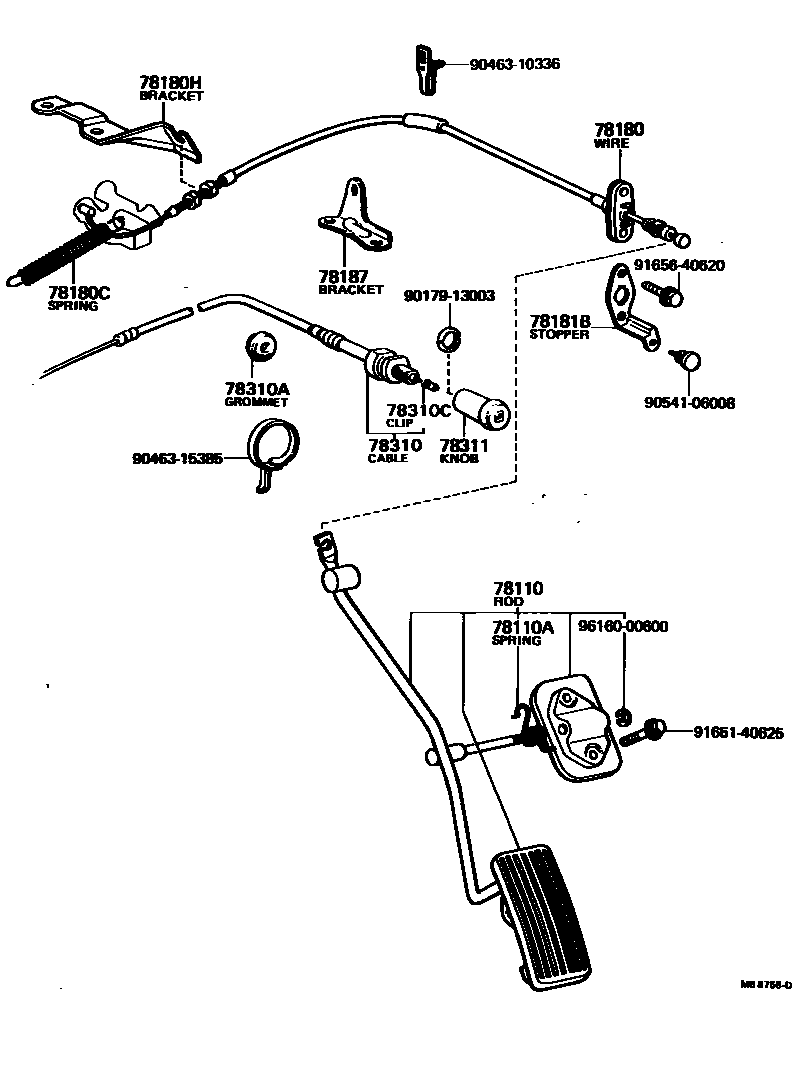

ACCELERATOR LINK

0001 1 0002 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-16010iAL11..RHD197901-197908

main78120-16011iAL11..RHD197908-198204

sub78120-16010

main78120-16020iAL11..LHD197901-197908

sub78120-16021

main78120-16021iAL11..LHD197908-198204

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18014iAL11..LHD197901-198204

main90508-18398iAL11..RHD197901-198204

78180WIRE ASSY, ACCELERATOR

main78180-16010iAL11..RHD197901-198204

main78180-16030iAL11..LHD197901-198204

78180CSPRING, TENSION (FOR ACCELERATOR WIRE)

main90507-12004iAL11197901-198204

78180HBRACKET, ACCELERATOR CONTROL CABLE

main78184-16010iAL11..RHD197901-198204

main78184-16020iAL11..LHD197901-198204

78181BSTOPPER, ACCELERATOR IDLE ADJUSTING

main78181-16010iAL11197901-198204

78187BRACKET, ACCELERATOR PULL BACK SPRING

main78187-16010iAL11..RHD197901-197908

78310CABLE ASSY, CHOKE

main78310-16010iAL11..RHD197901-198104

sub78310-16011

sub78311-12021

main78310-16011iAL11..RHD198104-198204

main78310-16020iAL11..EUR197904-198008

WEST GERMANY SPEC

main78310-16030iAL11..EUR198008-198204

WEST GERMANY SPEC

main84506-16010iAL11..LHD197901-198008

main84506-16011iAL11..LHD198008-198104

sub84506-16012

sub78311-12031

main84506-16012iAL11..LHD198104-198204

78310AGROMMET, CHOKE CABLE

main90480-13055iAL11..RHD197901-198204

78310CCLIP (FOR CHOKE CABLE)

main78312-12010iAL11198104-198204

78311KNOB, CHOKE CONTROL CABLE

main78311-12020iAL11..RHD197901-198104

sub78311-19015

main78311-12021iAL11..RHD198104-198204

main78311-12030iAL11..LHD198008-198104

sub78311-19025

main78311-12031iAL11..LHD198104-198204

main84811-16010iAL11..LHD197901-198008

9017913003

main90179-13003

9046310336

main90463-10336

9046315385

main90463-15385

9054106008

main90541-06008

9165140625

main91651-40625

9165640620

main91656-40620

9616000600

main96160-00600

18 parts on this diagram · 2 diagrams in section
