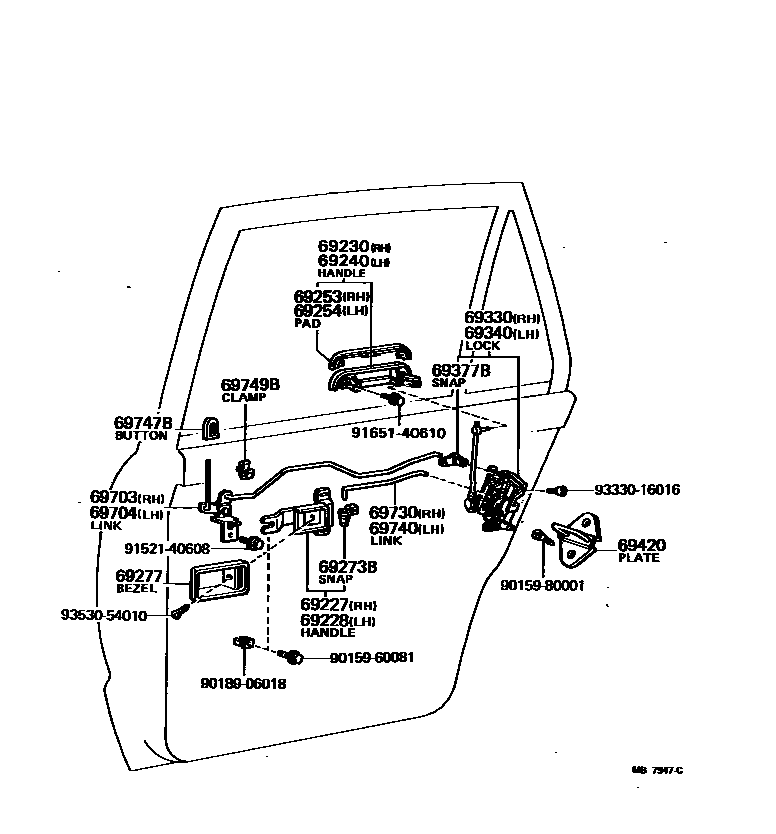

REAR DOOR LOCK & HANDLE
69227HANDLE, REAR DOOR INSIDE, RH
69228HANDLE, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
BLACK PAINTED TYPE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
BLACK PAINTED TYPE
69253PAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
69254PAD, DOOR OUTSIDE HANDLE, REAR LH
69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
RH
LH
69277BEZEL, REAR DOOR INSIDE HANDLE
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69377BSNAP, REAR DOOR LOCK CONTROL ROD
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)
69749BCLAMP, REAR DOOR LOCK LINK
9015960081
main90159-60081
9015980001
main90159-80001
9018906018
main90189-06018
9152140608
main91521-40608
9165140610
main91651-40610
9333016016
main93330-16016
9353054010
main93530-54010
25 parts on this diagram · 1 diagram in section
