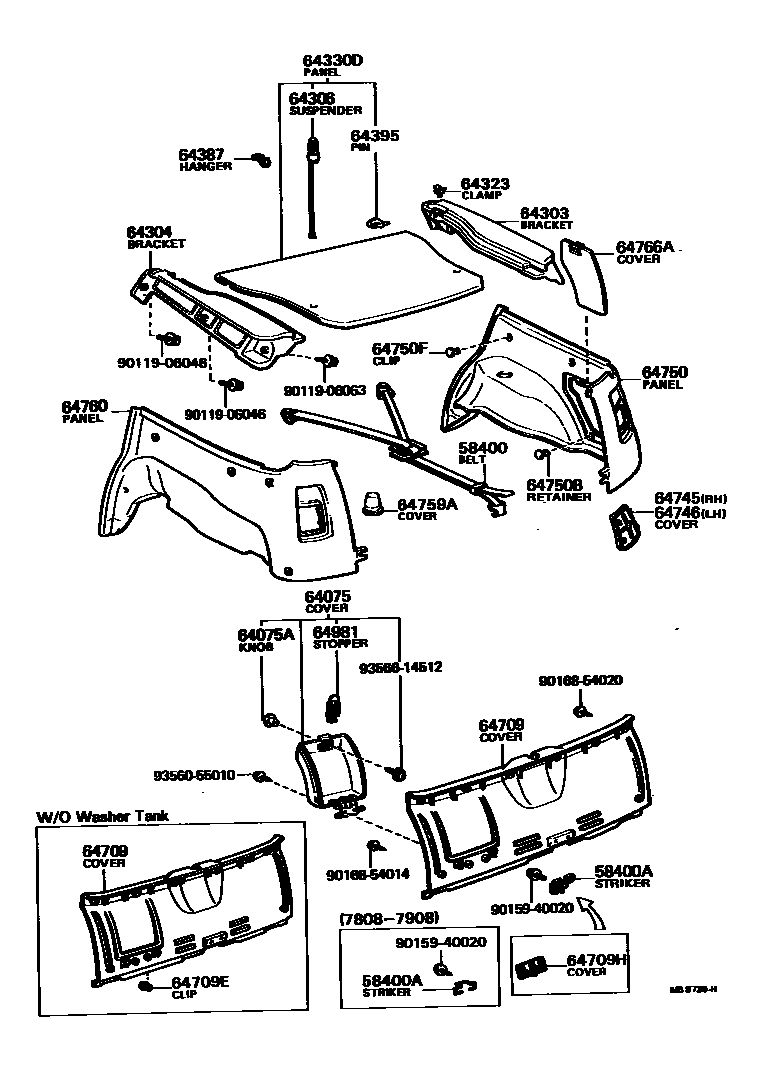

DECK BOARD & DECK TRIM COVER
58400ASTRIKER, LUGGAGE HOLD BELT
sub58461-14040
64075COVER SUB-ASSY, DECK TRIM WASHER
64075AKNOB, DECK TRIM WASHER COVER
64303BRACKET SUB-ASSY, PACKAGE TRAY, RH
64304BRACKET SUB-ASSY, PACKAGE TRAY, LH
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
sub64306-12030
64323CLAMP, PACKAGE TRAY TRIM, NO.1
64330DPANEL ASSY, PACKAGE TRAY TRIM
64387HANGER, PACKAGE TRAY TRIM
64395PIN, PACKAGE TRAY TRIM HINGE
64709COVER SUB-ASSY, LOWER BACK PANEL
W/RR WIPER,BLACK,BLACK,TRIM2#
W/RR WIPER,BLUE,BLUE,TRIM8#
W/RR WIPER,LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
64709ECLIP, LOWER BACK PANEL COVER
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
64709HCOVER, DECK TRIM
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
64745COVER, REAR COMBINATION LAMP SERVICE, RH
64746COVER, REAR COMBINATION LAMP SERVICE, LH
64750PANEL ASSY, DECK SIDE TRIM, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
64750BRETAINER(FOR DECK SIDE TRIM PANEL)
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64759ACOVER, SHOCK ABSORBER HEAD
64760PANEL ASSY, DECK SIDE TRIM, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
64766ACOVER, DECK SIDE TRIM TOOL
64981STOPPER, WASHER TANK COVER
9011906046
main90119-06046
9011906063
main90119-06063
9015940020
main90159-40020
9016854014
main90168-54014
9016854020
main90168-54020
9356055010
main93560-55010
9356614512
main93566-14512
30 parts on this diagram · 1 diagram in section
