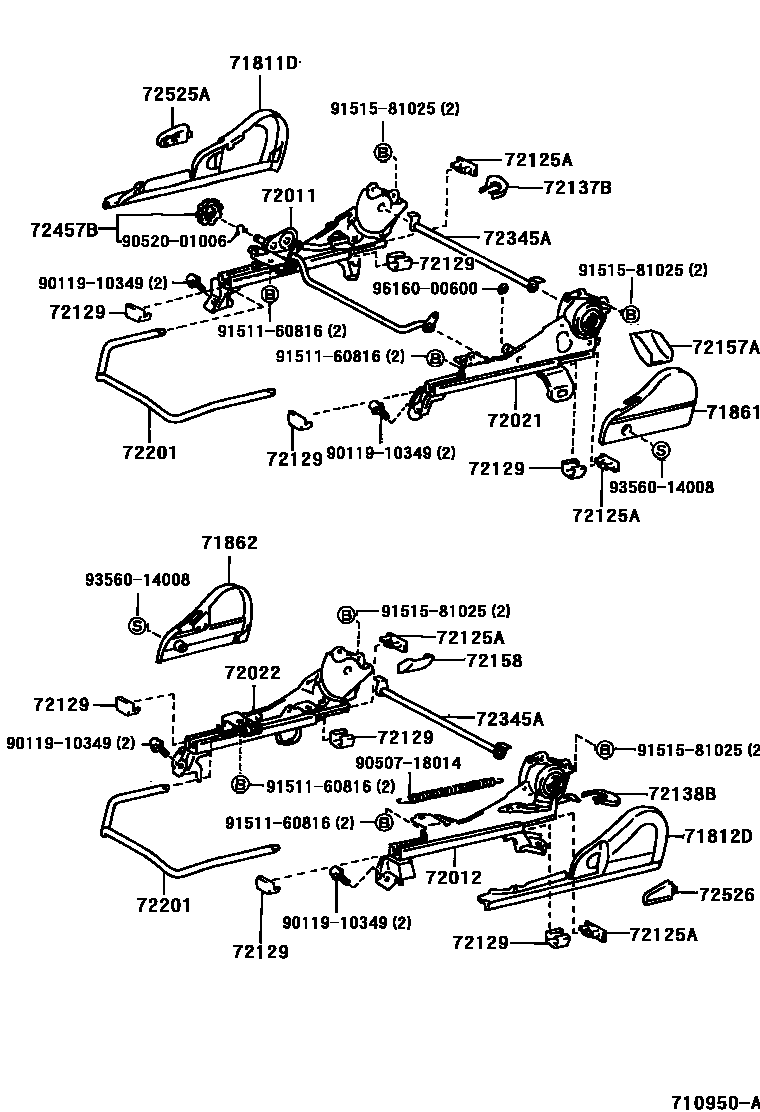

FRONT SEAT & SEAT TRACK

0001 1VERTICAL SEAT ADJUSTER 0002 1 0003 1 0004 1

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-10220-B0iEP91..LHD..3D199601-199907

BLUISH GRAY,TRIM1#

main71811-20300-B1iEP91..RHD;EP91..LHD..5D199601-199907

BLUISH GRAY,TRIM1#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-10170-B0iEP91..RHD..3D199601-199907

BLUISH GRAY,TRIM1#

main71812-20270-B1iEP91..5D;EP91..LHD..3D199601-199907

BLUISH GRAY,TRIM1#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-16220-B1iEP91199601-199907

BLUISH GRAY,TRIM1#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-16190-B1iEP91199601-199907

BLUISH GRAY,TRIM1#

72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

main72011-10010iEP91..RHD;EP91..LHD..5D199601-199706

main72011-10011iEP91..RHD;EP91..LHD..5D199706-199811

main72011-10012iEP91..RHD;EP91..LHD..5D199811

main72011-10021iEP91..RHD199712-199811

W(VERTICAL SEAT AJDUSTER)

main72011-10022iEP91..RHD199811

W(VERTICAL SEAT AJDUSTER)

main72011-10030iEP91..LHD..3D199601-199706

main72011-10031iEP91..LHD..3D199706-199811

main72011-10032iEP91..LHD..3D199811

72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

main72012-10010iEP91..5D;EP91..LHD..3D199601-199706

main72012-10011iEP91..5D;EP91..LHD..3D199706-199811

main72012-10012iEP91..5D;EP91..LHD..3D199811

main72012-10020iEP91..RHD..3D199601-199706

main72012-10021iEP91..RHD..3D199706-199811

main72012-10022iEP91..RHD..3D199811

main72012-10040iEP91..LHD199712-199811

W(VERTICAL SEAT AJDUSTER)

main72012-10041iEP91..LHD199811

W(VERTICAL SEAT AJDUSTER)

72021ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

main72021-10010iEP91..RHD;EP91..LHD..5D199601-199706

main72021-10011iEP91..RHD;EP91..LHD..5D199706-199811

main72021-10012iEP91..RHD;EP91..LHD..5D199811

main72021-10021iEP91..RHD199712-199811

W(VERTICAL SEAT AJDUSTER)

main72021-10022iEP91..RHD199811

W(VERTICAL SEAT AJDUSTER)

main72021-10030iEP91..LHD..3D199601-199706

main72021-10031iEP91..LHD..3D199706-199811

main72021-10032iEP91..LHD..3D199811

72022ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

main72022-10010iEP91..5D;EP91..LHD..3D199601-199706

main72022-10011iEP91..5D;EP91..LHD..3D199706-199811

main72022-10012iEP91..5D;EP91..LHD..3D199811

main72022-10020iEP91..RHD..3D199601-199706

main72022-10021iEP91..RHD..3D199706-199811

main72022-10022iEP91..RHD..3D199811

main72022-10050iEP91..LHD199712-199811

W(VERTICAL SEAT AJDUSTER)

main72022-10051iEP91..LHD199811

W(VERTICAL SEAT AJDUSTER)

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-10010×2iEP91199601

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-12010×2iEP91199806

REAR

main72129-20020×2iEP91199601

FRONT

main72129-20040×2iEP91199601-199806

REAR

72137BCOVER, SEAT TRACK, RH

main72137-10040iEP91199601

72138BCOVER, SEAT TRACK, LH

main72138-10030iEP91199601

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-10070iEP91199601

72158COVER, SEAT TRACK BRACKET, INNER LH

main72157-10070iEP91199601

72201HANDLE SUB-ASSY, SEAT TRACK

main72201-10060iEP91199601

72345APIPE, RECLINING CONNECTING

main72345-10020iEP91199601

72457BKNOB, VERTICAL SEAT ADJUSTER, RH

main72457-18010-B3iEP91..RHD199712-199907

SHADOW GRAY,TRIM1#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-16010-B5iEP91199601-199907

BLUISH GRAY,TRIM1#

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-16010-B5iEP91199601-199907

BLUISH GRAY,TRIM1#

9011910349

main90119-10349

9050718014

main90507-18014

9052001006

main90520-01006

9151160816

main91511-60816

9151581025

main91515-81025

9356014008

main93560-14008

9616000600

main96160-00600

26 parts on this diagram · 4 diagrams in section
