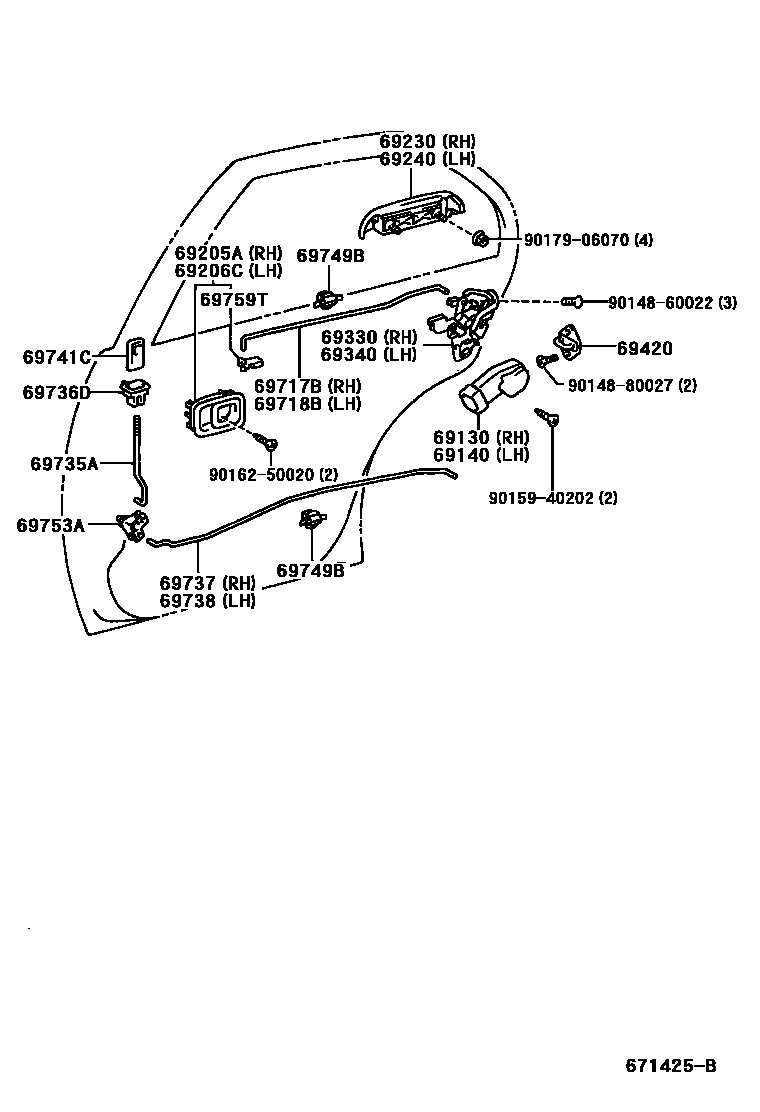

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
sub69230-10090
CHROME PLATED
COOL WATER PACKAGE,GREEN M.M.,6P5
BLUE SUMMER PACKAGE,BLUE M.,8M2
COOL WATER PACKAGE,BLUE M.M.,8L5
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
sub69240-10090
CHROME PLATED
COOL WATER PACKAGE,GREEN M.M.,6P5
BLUE SUMMER PACKAGE,BLUE M.,8M2
COOL WATER PACKAGE,BLUE M.M.,8L5
69330LOCK ASSY, REAR DOOR, RH
W(POWER WINDOW)
69340LOCK ASSY, REAR DOOR, LH
W(POWER WINDOW)
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69735AROD, REAR DOOR LOCK PUSH BUTTON
69736DGUIDE, REAR DOOR LOCKING LINK
69737LINK, REAR DOOR INSIDE LOCKING, RH
69738LINK, REAR DOOR INSIDE LOCKING, LH
69741CKNOB, REAR DOOR LOCK CONTROL
69753ABELLCRANK, DOOR LOCK CONTROL
69759TSNAP, REAR DOOR INSIDE HANDLE
GRAY
GREEN
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9016250020
main90162-50020
9017906070
main90179-06070
24 parts on this diagram · 1 diagram in section
