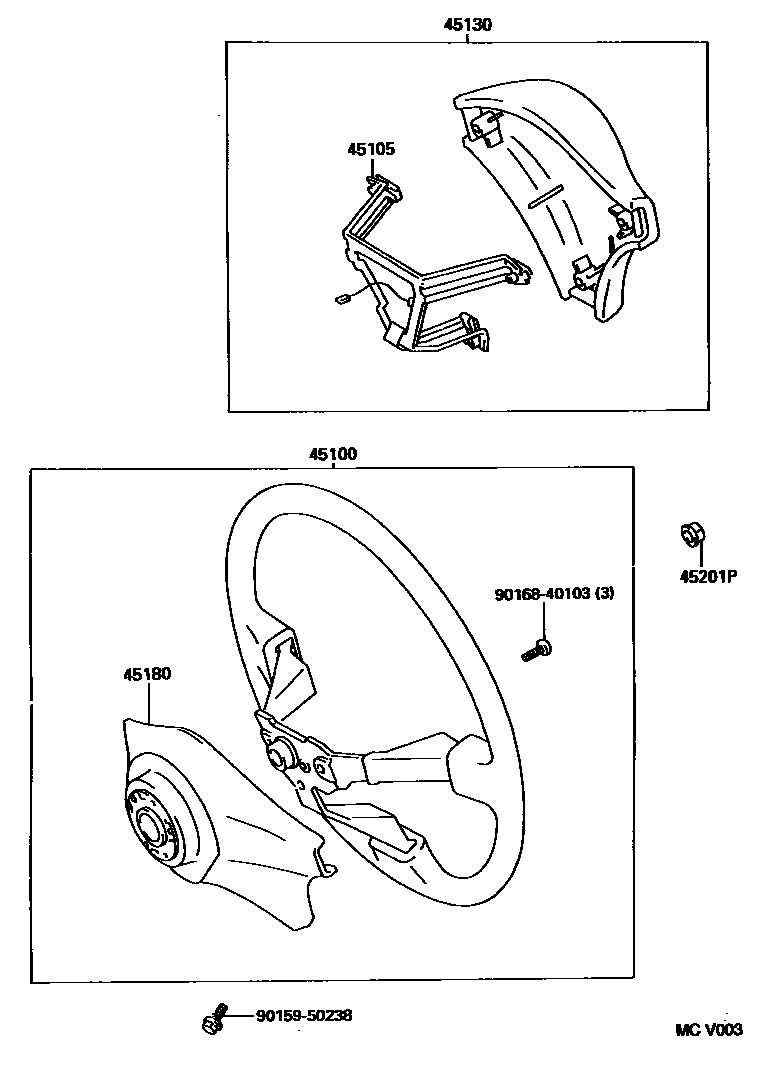

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80,DRIVER SIDE),BLUISH GRAY,TRIM1#
sub45100-10431
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80,DRIVER SIDE),BLUISH GRAY,TRIM1#
sub45100-10431
4-SPOKE,URETHANE,W(ELECTRIC TYPE *80,DRIVER SIDE & FRONT PASSENGER SIDE),BLUISH GRAY,TRIM1#
sub45100-10440
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80,DRIVER SIDE),BLUISH GRAY,TRIM1#
sub45100-16500
4-SPOKE,URETHANE,W(ELECTRIC TYPE *80,DRIVER SIDE & FRONT PASSENGER SIDE),BLUISH GRAY,TRIM1#
sub45100-16510
3-SPOKE,URETHANE,W(ELECTRICAL TYPE *80),BLUISH GRAY,TRIM1#
sub45100-16570
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45130BUTTON ASSY, HORN
W(ELECTRIC TYPE *80,DRIVER SIDE & FRONT PASSENGER SIDE),BLUISH GRAY,TRIM1#
sub45130-16350
W(MECHANICAL TYPE *80,DRIVER SIDE),BLUISH GRAY,TRIM1#
sub45130-16371
W(MECHANICAL TYPE *80,DRIVER SIDE),BLUISH GRAY,TRIM1#
sub45130-16391
W(ELECTRIC TYPE *80,DRIVER SIDE & FRONT PASSENGER SIDE),BLUISH GRAY,TRIM1#
sub45130-16400
45180COVER SUB-ASSY, STEERING WHEEL
45201PNUT, STEERING WHEEL SET
9015950238
main90159-50238
9016840103
main90168-40103
7 parts on this diagram · 4 diagrams in section
