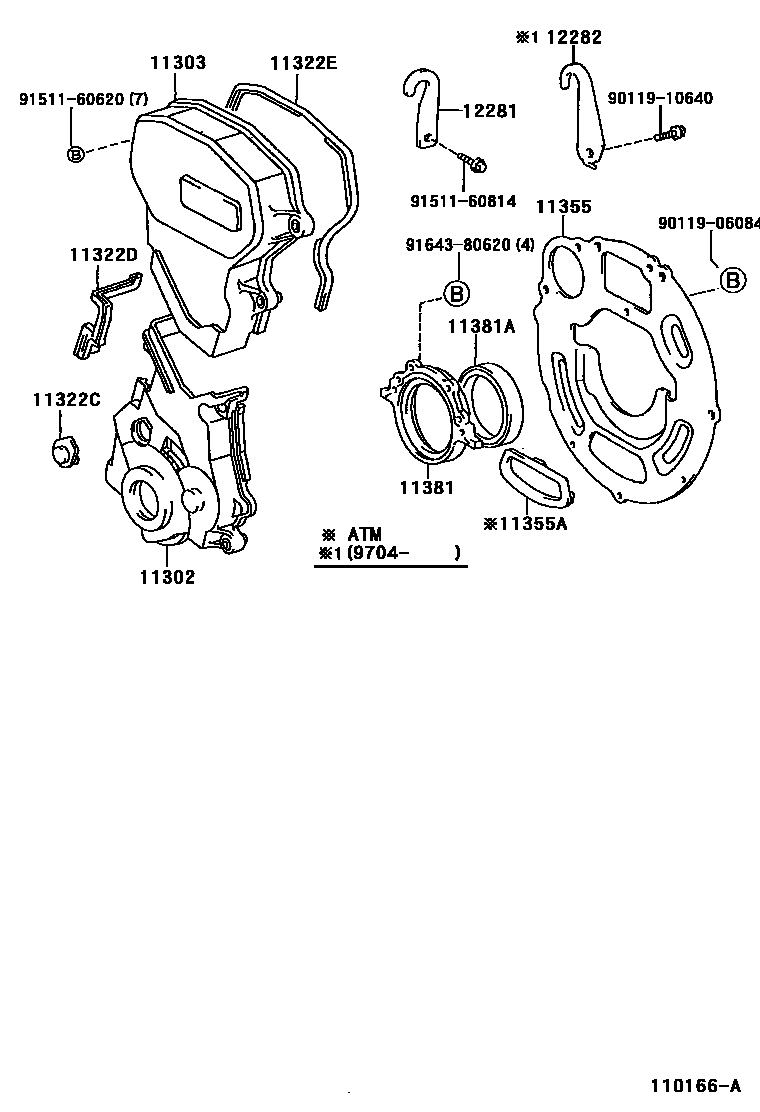

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11062i4EFE..EP91199601

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-11031i4EFE..EP91199601

11322CCOVER, TIMING BELT, NO.3

main11323-10011i4EFE..EP91199601

11322DGASKET, TIMING BELT COVER, NO.1

main11328-11041i4EFE..EP91199601

11322EGASKET, TIMING BELT COVER, NO.2

main11329-11010i4EFE..EP91199601

11355PLATE, REAR END

main11355-10011i4EFE..EP91..5F199601-199611

sub11355-10012

main11355-10012i4EFE..EP91..5F199611

main11355-11011i4EFE..EP91..3FC199601-199611

sub11355-11012

main11355-11012i4EFE..EP91..3FC199611

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01548i4EFE..EP91..3FC199601

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10021i4EFE..EP91199601

11381ASEAL, ENGINE REAR OIL

main90311-75009i4EFE..EP91199601

12281HANGER, ENGINE, NO.1

main12281-11031i4EFE..EP91199601

12282HANGER, ENGINE, NO.2

main12282-11021i4EFE..EP91199704-199706

sub12282-11022

main12282-11022i4EFE..EP91199706

9011906084

main90119-06084

9011910640

main90119-10640

9151160620

main91511-60620

9151160814

main91511-60814

9164380620

main91643-80620

16 parts on this diagram · 1 diagram in section
