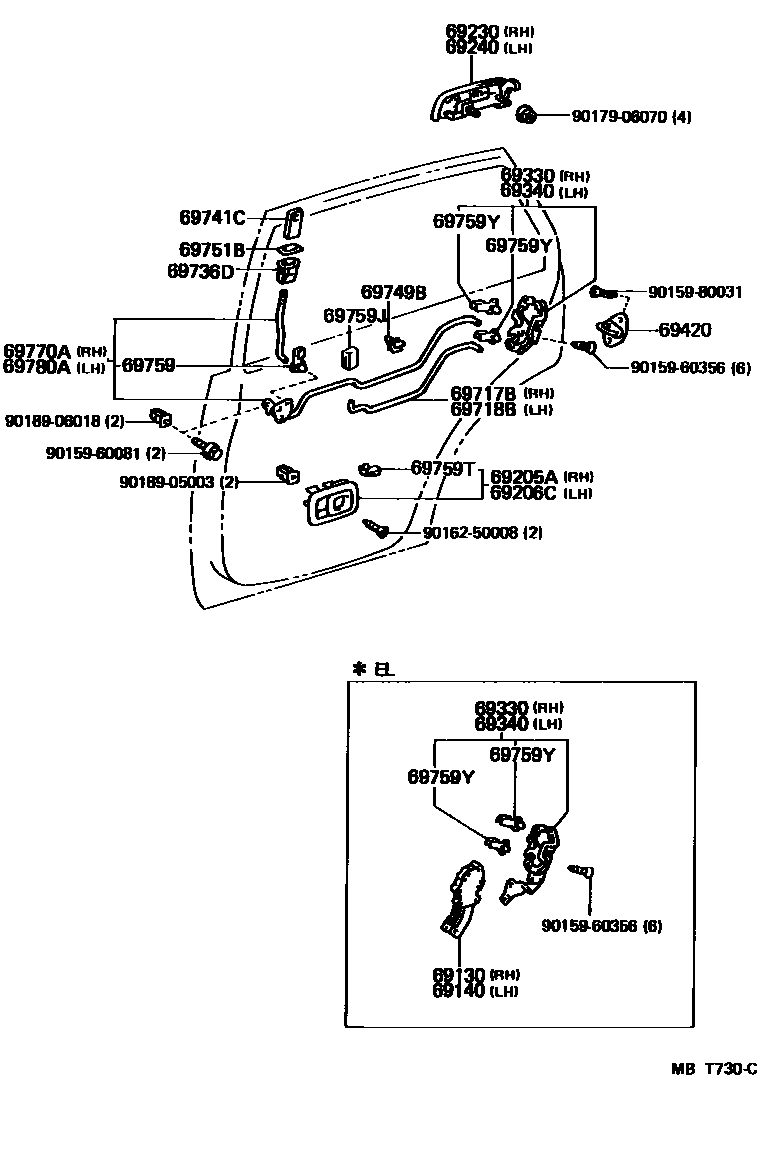

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-10010iEP8#..5D..(GL,XL,XLI)198912-199201

main69130-10020iEP8#..5D..(XL,XLI)199201-199601

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-10010iEP8#..5D..(GL,XL,XLI)198912-199201

main69140-10020iEP8#..5D..(XL,XLI)199201-199601

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-20040-03iEP8#..5D198912-199601

GRAY,TRIM1#

sub69205-20040

main69205-20040-14iEP8#..5D198912-199201

DARK BLUE,TRIM8#

sub69205-20040

main69205-20040-E0iEP8#..5D199201-199212

OAK,TRIM4#

sub69205-20040

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-20040-03iEP8#..5D198912-199601

GRAY,TRIM1#

sub69206-20040

main69206-20040-14iEP8#..5D198912-199201

DARK BLUE,TRIM8#

sub69206-20040

main69206-20040-E0iEP8#..5D199201-199212

OAK,TRIM4#

sub69206-20040

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-10040iEP8#..5D198912-199601

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-10040iEP8#..5D198912-199601

69330LOCK ASSY, REAR DOOR, RH

main69330-10080iEP8#..5D198912-199201

main69330-10090iEP8#..5D..(GL,XL,XLI)198912-199201

W(POWER DOOR LOCK)

main69330-10110iEP8#..5D199201-199601

main69330-10130iEP8#..5D..(XL,XLI)199201-199601

W(POWER DOOR LOCK)

69340LOCK ASSY, REAR DOOR, LH

main69340-10080iEP8#..5D198912-199201

main69340-10090iEP8#..5D..(GL,XL,XLI)198912-199201

W(POWER DOOR LOCK)

main69340-10110iEP8#..5D199201-199601

main69340-10130iEP8#..5D..(XL,XLI)199201-199601

W(POWER DOOR LOCK)

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070iEP8#..5D199010-199601

main69410-87001iEP8#..5D198912-199010

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-10040iEP8#..5D198912-199601

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-10030iEP8#..5D198912-199601

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-10040iEP8#..5D198912-199601

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-10030-03iEP8#..5D199010-199601

GRAY,TRIM1#

sub69741-12040

main69741-10030-E0iEP8#..5D199201-199212

OAK,TRIM4#

sub69741-12040

main69741-10040-04iEP8#..5D199010-199201

BLUE,TRIM8#,PAINTED WHITE

sub69741-10030

main69741-90K00-43iEP8#..5D198912-199010

GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-54iEP8#..5D198912-199010

DARK BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12030iEP8#..5D198912-199601

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-12020iEP81..5D199505-199601

sub69751-20031

main69751-12020-03iEP80..5D;EP81..5D..(XL,XLI)198912-199505

SHADOW GRAY,TRIM1#

sub69751-20031

sub69751-12020

main69751-12020-14iEP80..5D;EP81..5D..(XL,XLI)198912-199201

DARK BLUE,TRIM8#

sub69751-20031

sub69751-12020

main69751-12020-E0iEP8#..5D199201-199212

OAK,TRIM4#

sub69751-20031

sub69751-12020

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24030iEP8#..5D198912-199601

RH

main69759-24040iEP8#..5D198912-199601

LH

69759JSILENCER, DOOR LOCK LINK

main69759-10040iEP81..5D199405-199601

main69759-10050iEP8#..5D198912-199201

sub69759-12060

main69759-12060iEP8#..5D199201-199405

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iEP8#..5D198912-199601

LH

main69759-24070iEP8#..5D198912-199601

RH

69759YSILENCER, REAR DOOR LOCK LINK

main69759-24050iEP8#..5D198912-199601

LH

main69759-24060iEP8#..5D198912-199601

RH

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-10050iEP8#..5D198912-199601

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-10050iEP8#..5D198912-199601

9015960081

main90159-60081

9015960356

main90159-60356

9015980031

main90159-80031

9016250008

main90162-50008

9017906070

main90179-06070

9018905003

main90189-05003

9018906018

main90189-06018

28 parts on this diagram · 1 diagram in section
