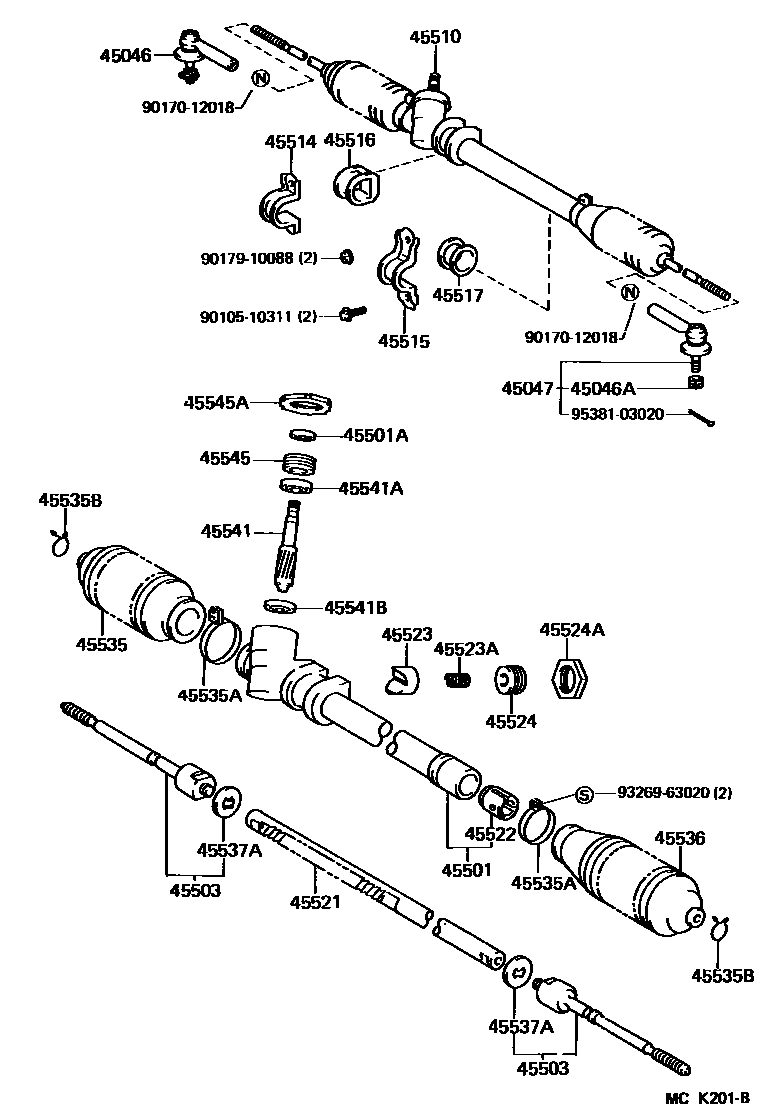

FRONT STEERING GEAR & LINK
45046ANUT, CASTLE(FOR TIE ROD END)
45501HOUSING SUB-ASSY, STEERING RACK
45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45514BRACKET, STEERING RACK HOUSING, NO.1
45515BRACKET, STEERING RACK HOUSING, NO.2
45516GROMMET, STEERING RACK HOUSING, NO.1
W(POWER STEERING)
45517GROMMET, STEERING RACK HOUSING, NO.2
W(POWER STEERING)
45521RACK, STEERING
45522BUSH, STEERING RACK
45523GUIDE, RACK(FOR STEERING GEAR)
W(POWER STEERING)
W(POWER STEERING)
sub45523-10041
W(POWER STEERING)
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
W(POWER STEERING)
45535ACLAMP(FOR STEERING RACK BOOT)
NO.1,ID=41.5
NO.2,ID=38.0
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
W(POWER STEERING)
45537AWASHER, CLAW(FOR STEERING RACK END LOCK)
45541PINION, STEERING
45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)
45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)
45545SCREW, PINION BEARING ADJUSTING
45545ANUT(FOR PINION BEARING ADJUSTING SCREW)
9010510311
main90105-10311
9017012018
main90170-12018
9017910088
main90179-10088
9326963020
main93269-63020
9538103020
main95381-03020
32 parts on this diagram · 7 diagrams in section
