STEERING WHEEL

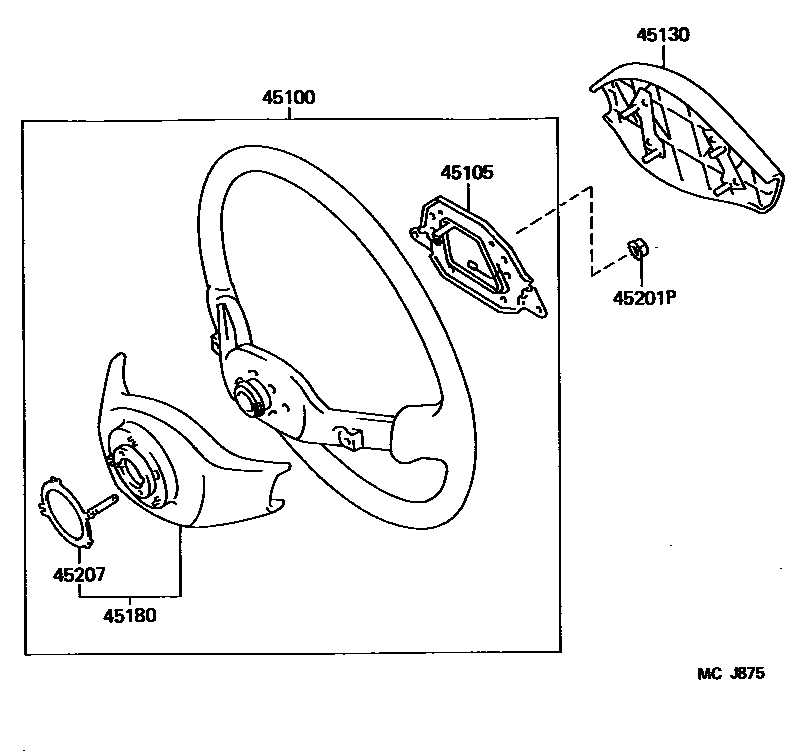

Parts diagram
45100WHEEL ASSY, STEERING
main45100-10310-03i198912-199201
2-SPOKE,2-SPOKE,GRAY,GRAY,TRIM1#
sub45100-10310
main45100-10310-04i198912-199201
2-SPOKE,2-SPOKE,BLUE,BLUE,TRIM8#
sub45100-10310
main45100-10320-03i198912-199201
2-SPOKE,URETHANE,2-SPOKE,URETHANE,GRAY,GRAY,TRIM1#
sub45100-10320
main45100-10320-04i198912-199201
2-SPOKE,URETHANE,2-SPOKE,URETHANE,BLUE,BLUE,TRIM8#
sub45100-10320
main45100-10330-03i198912-199201
3-SPOKE,3-SPOKE,LEATHER,GRAY,GRAY,TRIM1#
sub45100-10330
main45100-10330-04i198912-199201
3-SPOKE,3-SPOKE,LEATHER,BLUE,BLUE,TRIM8#
sub45100-10330
main45100-10350-B0i199201-199405
2-SPOKE,2-SPOKE,GRAY,GRAY,TRIM1#
sub45100-10350
main45100-10350-E0i199201-199212
2-SPOKE,2-SPOKE,OAK,OAK,TRIM4#
sub45100-10350
main45100-10360-B0i199201-199601
2-SPOKE,URETHANE,2-SPOKE,URETHANE,GRAY,GRAY,TRIM1#
sub45100-10360
main45100-10360-E0i199201-199212
2-SPOKE,URETHANE,2-SPOKE,URETHANE,OAK,OAK,TRIM4#
sub45100-10360
main45100-10370-B0i199201-199601
3-SPOKE,3-SPOKE,LEATHER,GRAY,GRAY,TRIM1#
sub45100-10370
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-10030i198912-199003
main45105-10040i198912-199201
main45105-10050i199003-199004
sub45105-10051
main45105-10051i199004-199201
main45105-10060i199201-199405
main45105-10070i199201-199601
main45105-10080i199201-199601
45130BUTTON ASSY, HORN
main45130-10170-03i198912-199201
2-SPOKE,URETHANE,GRAY,GRAY,TRIM1#
sub45130-10170
main45130-10170-04i198912-199201
2-SPOKE,ULETHANE,BLUE,BLUE,TRIM8#
sub45130-10170
main45130-10180-03i198912-199201
3-SPOKE,LEATHER,GRAY,GRAY,TRIM1#
sub45130-10180
main45130-10180-04i198912-199201
3-SPOKE,LEATHER,BLUE,BLUE,TRIM8#
sub45130-10180
main45130-10200-03i198912-199201
2-SPOKE,GRAY,GRAY,TRIM1#
sub45130-10200
main45130-10200-04i198912-199201
2-SPOKE,BLUE,BLUE,TRIM8#
sub45130-10200
main45130-10220-B0i199201-199405
2-SPOKE,GRAY,GRAY,TRIM1#
sub45130-10220
main45130-10220-E0i199201-199212
2-SPOKE,OAK,OAK,TRIM4#
sub45130-10220
main45130-10230-B0i199201-199601
2-SPOKE,URETHANE,GRAY,GRAY,TRIM1#
sub45130-10230
main45130-10230-E0i199201-199212
2-SPOKE,URETHANE,OAK,OAK,TRIM4#
sub45130-10230
main45130-10240-B0i199201-199601
3-SPOKE,LEATHER,GRAY,GRAY,TRIM1#
sub45130-10240
45180COVER SUB-ASSY, STEERING WHEEL
main45180-10010-03i198912-199003
GRAY,TRIM1#
sub45180-10010
main45180-10010-04i198912-199003
BLUE,TRIM8#
sub45180-10010
main45180-10020-03i198912-199201
GRAY,TRIM1#
sub45180-10020
main45180-10020-04i198912-199201
BLUE,TRIM8#
sub45180-10020
main45180-10030-03i198912-199201
GRAY,TRIM1#
main45180-10030-04i198912-199201
BLUE,TRIM8#
main45180-10050-03i199003-199201
GRAY,TRIM1#
sub45180-10050
main45180-10050-04i199003-199201
BLUE,TRIM8#
sub45180-10050
main45180-10060-B0i199201-199405
GRAY,TRIM1#
sub45180-10060
main45180-10060-E0i199201-199212
OAK,TRIM4#
sub45180-10060
main45180-10070-B0i199201-199601
GRAY,TRIM1#
sub45180-10070
main45180-10070-E0i199201-199212
OAK,TRIM4#
sub45180-10070
main45180-10080-B0i199201-199601
GRAY,TRIM1#
sub45180-10080
45201PNUT, STEERING WHEEL SET
main90179-12071i199306-199601
main90179-12086i198912-199306
45207RING, HORN CONTACT
main45176-20060i198912-199201
main45176-24020i198912-199201

6 parts on this diagram · 5 diagrams in section
