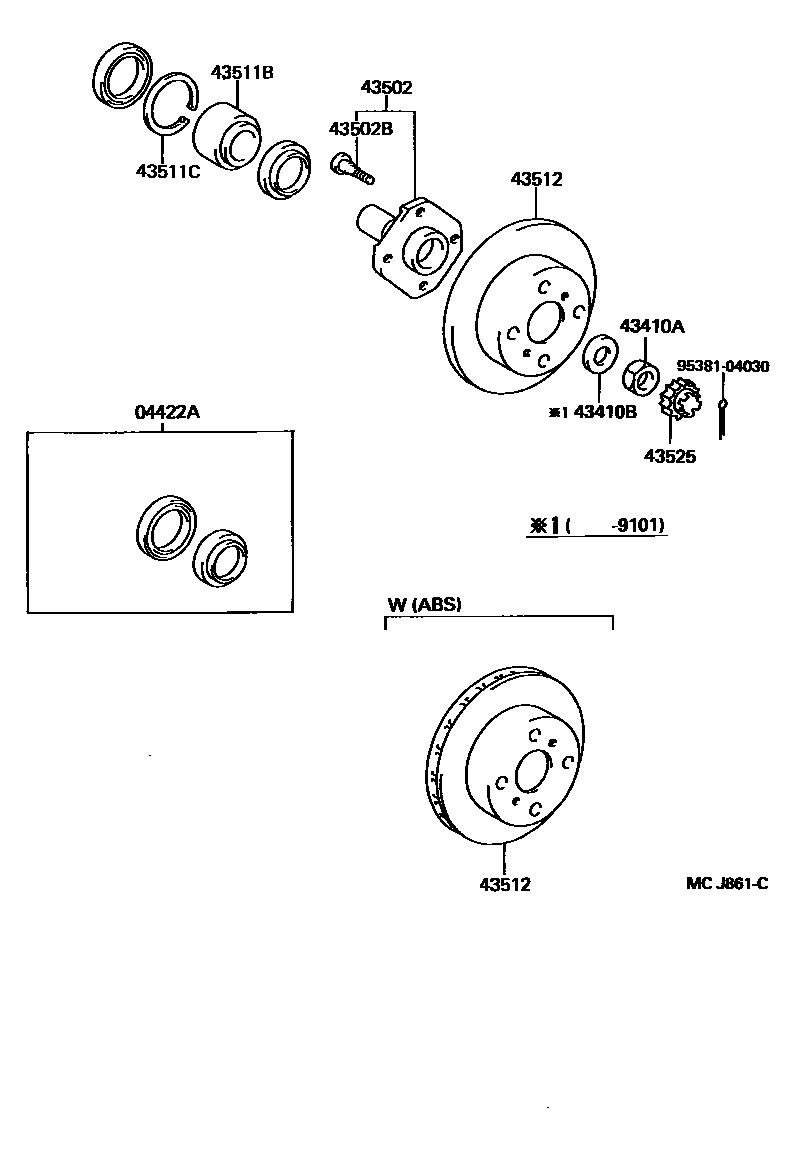

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-10030iEP81,NP80198912-199601

main04422-10040iEP8#..LHD198912-199601

W(ABS)

43410ANUT (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90170-19001iEP8#,NP80198912-199101

main90179-22020iEP8#,NP80199101-199601

43410BWASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90201-20012iEP8#,NP80198912-199101

43502HUB SUB-ASSY, FRONT AXLE

main43502-10030iEP8#,NP80198912-199201

main43502-10040iEP8#,NP80199201-199212

W(ABS)

main43502-10040iEP81,NP80199212-199601

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iEP8#,NP80198912-199112

main90942-02049iEP8#..LHD199201-199212

W(ABS)

main90942-02049iEP8#,NP80199112-199601

43511BBEARING (FOR FRONT AXLE HUB)

main90369-35029iEP8#,NP80198912-199601

main90369-35029iEP8#..LHD199201-199212

W(ABS)

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-75003iEP8#,NP80198912-199601

T=2.50

main90521-75003iEP8#..LHD199201-199212

T=2.50,W(ABS)

43512DISC, FRONT

main43512-10090iEP8#,NP80198912-199201

main43512-10100iEP8#..LHD198912-199201

W(ABS)

main43512-10160iEP8#,NP80199201-199601

main43512-16070iEP8#..LHD199201-199506

W(ABS)

sub43512-16120

main43512-16120iEP81..LHD199506-199601

W(ABS)

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iEP8#,NP80198912-199101

main43525-20030iEP8#,NP80199101-199601

9538104030

main95381-04030

10 parts on this diagram · 1 diagram in section
