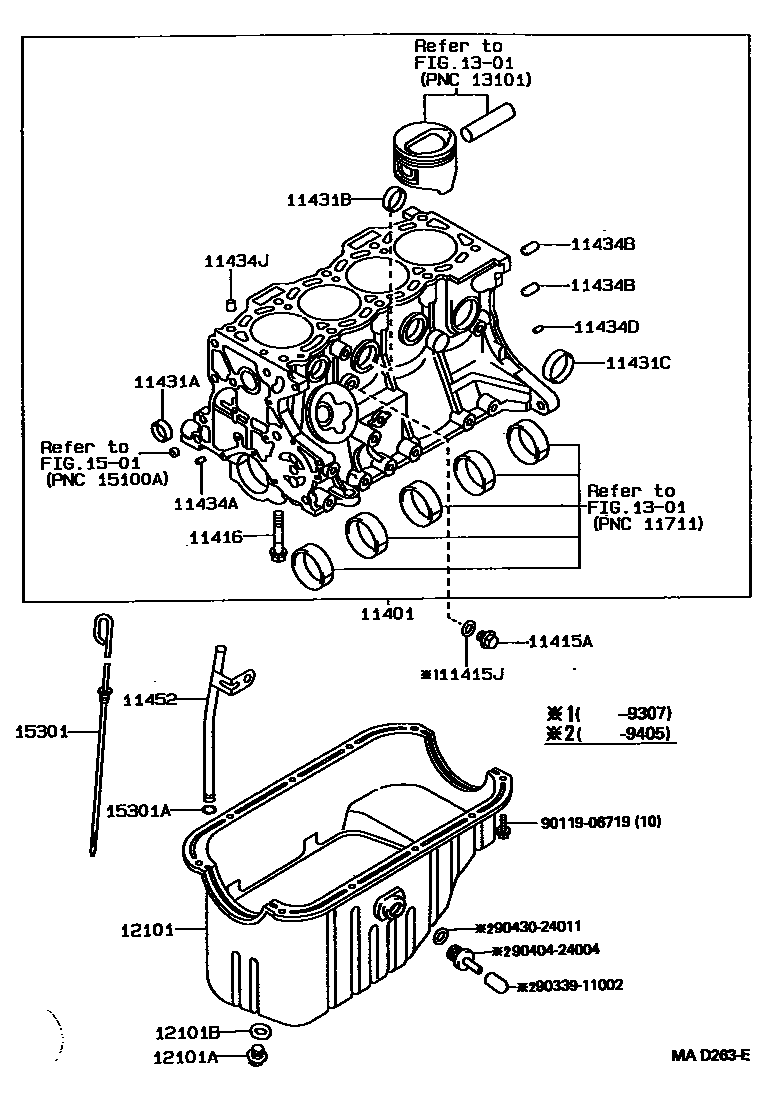

CYLINDER BLOCK

0001 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19397i1E..EP80198912-199011

main11401-19398i1E..EP80199011-199212

sub11401-19399

main11401-19526i2E#..EP81198912-199201

main11401-19527i2EE..EP81..3D..XLI;2EE..EP81..GLI,SI,STD;2EE..EP81..LHD..5D..XLI199212-199307

main11401-19528i2EE..EP81..3D..XLI;2EE..EP81..GLI,SI,STD;2EE..EP81..LHD..5D..XLI199307-199407

main11401-19529i2EE..EP81..3D;2EE..EP81..LHD..5D199407-199601

sub11401-80690

main11401-19555i2EE..EP81..RHD..5D199201-199212

main11401-19556i2EE..EP81..RHD..5D199212-199307

main11401-19557i2EE..EP81..RHD..5D199307-199407

main11401-19558i2EE..EP81..RHD..5D199407-199601

sub11401-19577

main11401-59336i1N..NP80198912-199009

main11401-59337i1N..NP80199009-199601

sub11401-59338

sub13011-55012

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-52003i1N..NP80199302-199601

main90910-09088i1N..NP80198912-199302

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90341-12012i1E,2E..EP8#;2EE..EP81..5F198912-199102

main90341-12026i1E,2E#..EP8#199102-199307

main90345-52001i2EE..EP81199307-199601

main90910-09087i1N..NP80198912-199302

11415JGASKET(FOR DRAIN COCK)

main90430-13002i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199307

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10153×10i1N..NP80198912-199601

main90910-02019×10i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199601

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42000×2i1N..NP80198912-199601

main96411-42500i1E..EP80198912-199212

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000×2i1N..NP80198912-199601

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-43500i1N..NP80198912-199601

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06003i1N..NP80198912-199601

L=14,OD=6

main90250-06068i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199601

L=11,OD=6

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10017i1N..NP80198912-199601

L=20,OD=10

main90253-15003i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199601

L=17,OD=15

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068×2i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199601

L=11,OD=6

main90253-10005×2i1N..NP80198912-199601

L=10,OD=10

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-12001×2i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199601

main90253-14001×2i1N..NP80198912-199601

11452GUIDE, OIL LEVEL GAGE

main11452-11040i1E,2E#..EP8#199203-199512

main11452-11041i2EE..EP81199512-199601

main11452-11050i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199203

main11452-55020i1N..NP80198912-199601

12101PAN SUB-ASSY, OIL

main12101-10010i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199407

main12101-10011i2EE..EP81199407-199601

main12101-11040i2EE..EP81..LHD..5F198912-199405

SWITZERLAND SPEC

sub12101-11041

main12101-55010i1N..NP80198912-199601

sub12101-55011

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1N..NP80198912-199102

main90341-12026i1E,2E#..EP8#199102-199208

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12019i1N..NP80198912-199007

main90430-12027i1N..NP80199109-199302

main90430-12028i1N..NP80199103-199109

main90430-12031i2EE..EP81199306-199601

1301

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-11030i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199601

main15301-11040i2EE..EP81..LHD..5F198912-199405

SWITZERLAND SPEC

main15301-55030i1N..NP80198912-199601

15301ARING, O(FOR OIL LEVEL GAGE)

main96711-19010i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199505

main96721-19010i2EE..EP81199506-199601

9011906719

main90119-06719

9033911002

main90339-11002

9040424004

main90404-24004

9043024011

main90430-24011

24 parts on this diagram · 2 diagrams in section
