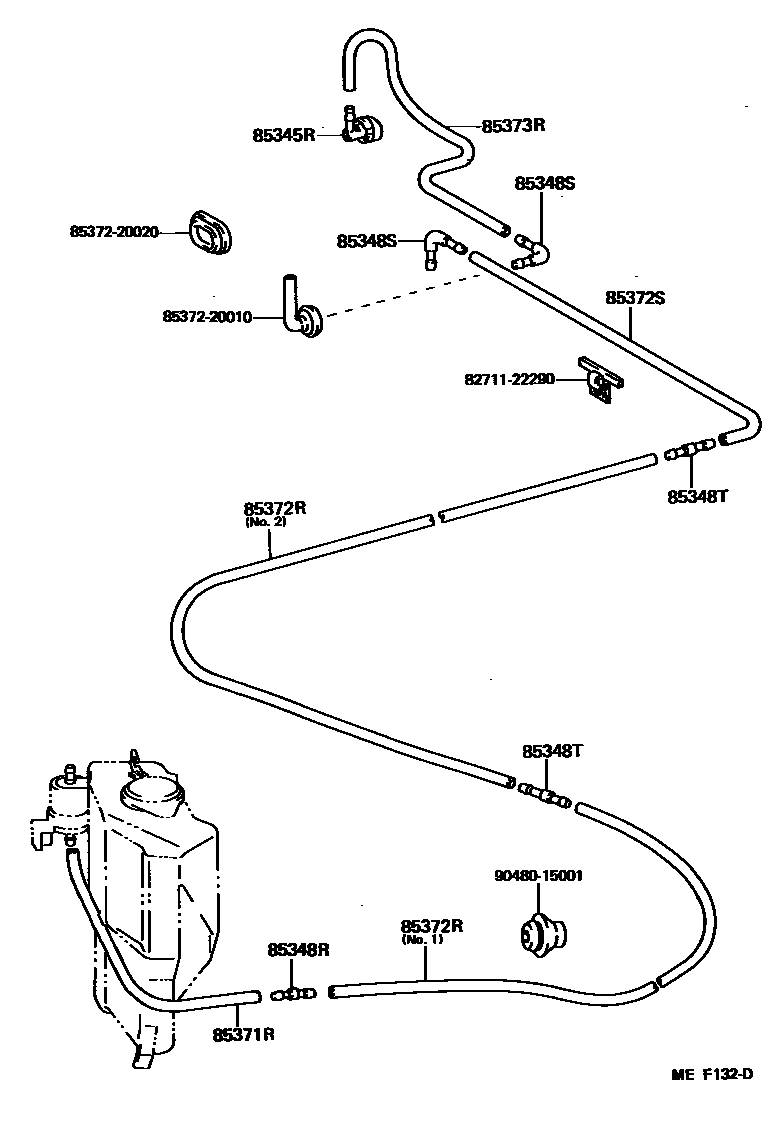

REAR WASHER

0001 1 0002 1

85345RNOZZLE, REAR WASHER

main85035-12160iEP7#,NP70198410-198912

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iEP7#198703-198912

main85355-87201iEP7#198410-198703

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200×2iEP7#,NP70198410-198912

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122×2iEP7#,NP70198612-198912

main85355-87201×2iEP7#198410-198612

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013iEP7#198410-198912

L=1450(*H,L=310)

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main85343-10090iEP7#198410-198612

L=2200,NO.2

main85354-10230iEP7#,NP70198612-198912

NO.2,L=2300

main85370-10230iNP70198612-198912

NO.1,L=1400

main90446-06006iEP7#198410-198612

L=2000,NO.1,*H,L=1200

main90446-07001iEP7#198612-198912

L=1800(*H,L=780),NO.1

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90446-06013iEP7#198410-198912

L=1000(*H,L=400)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main85343-10100iEP7#,NP70198410-198912

L=150

8271122290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22290

8537220010HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20010

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

9048015001

main90480-15001

12 parts on this diagram · 2 diagrams in section
