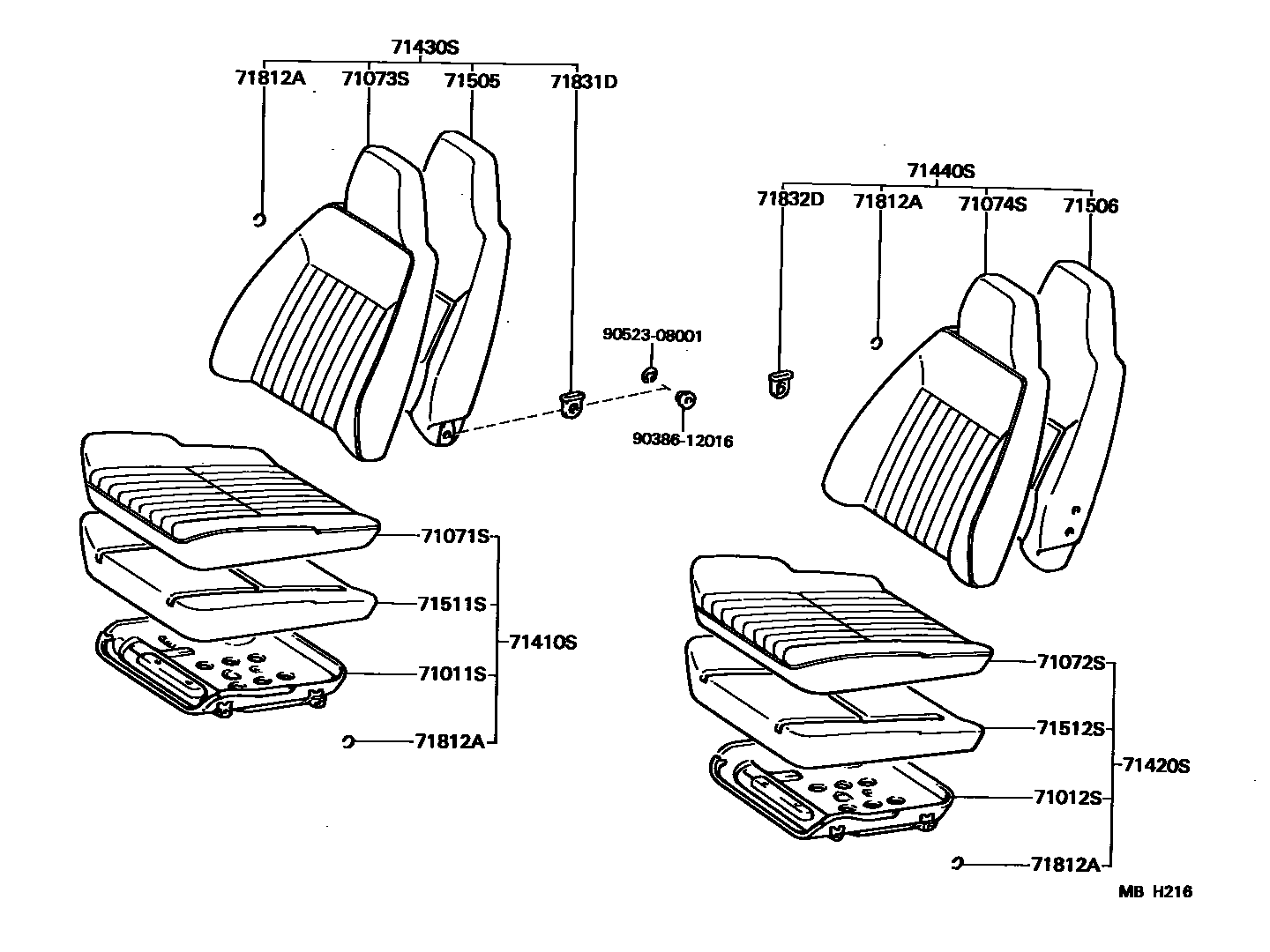

FRONT SEAT & SEAT TRACK

0001 1HIGH BACK SEAT 0002 1LOW BACK SEAT 0003 1 0004 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-10080iEP7#,NP70198612-198912

main71011-10120iEP7#198410-198612

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-10010iEP7#,NP70198612-198912

main71012-10040iEP7#198410-198612

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-10560-03iEP7#..STD198410-198612

PF,*HBS,GRAY,GRAY,TRIM1#

main71071-10560-04iEP7#..STD198410-198612

PF,*HBS,BLUE,BLUE,TRIM8#

main71071-10570-03iEP7#..DX,STD,XL198410-198601

FB,GRAY,GRAY,TRIM1#

main71071-10570-04iEP7#..DX,STD,XL198410-198601

FB,BLUE,BLUE,TRIM8#

main71071-10570-13iEP7#..DX,STD,XL198601-198612

FB,GRAY,GRAY,TRIM1#

main71071-10570-14iEP7#..DX,STD,XL198601-198612

FB,BLUE,BLUE,TRIM8#

main71071-10580-02iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,RED,RED,TRIM1#

main71071-10580-03iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,GRAY,GRAY,TRIM1#

main71071-10590-03iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,GRAY,GRAY,TRIM1#; GL PACK,FB,GRAY,GRAY,TRIM1#

main71071-10590-04iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,BLUE,BLUE,TRIM8#; GL PACK,FB,BLUE,BLUE,TRIM8#

main71071-10720-03iEP7#..STD198410-198612

PF,*LBS,GRAY,GRAY,TRIM1#

main71071-10720-04iEP7#..STD198410-198612

PF,*LBS,BLUE,BLUE,TRIM8#

main71071-10820-03iEP7#,NP70..STD,XL198612-198912

FB-B,GRAY,GRAY,TRIM1#

main71071-10820-06iEP7#,NP70..STD,XL198612-198912

FB-B,BROWN,BROWN,TRIM4#

main71071-10830-03iEP71..S198612-198912

FB,GRAY,GRAY,TRIM1#

main71071-10840-03iEP7#..GL198612-198912

FB,GRAY,GRAY,TRIM1#

main71071-10840-06iEP7#..GL198612-198912

FB,BROWN,BROWN,TRIM4#

main71071-10850-03iEP7#,NP70..XL198612-198912

FB-G,GRAY,GRAY,TRIM1#

main71071-10890-03iEP7#,NP70..STD198612-198912

PF,GRAY,GRAY,TRIM1#

main71071-10890-06iEP7#,NP70..STD198612-198912

PF,BROWN,BROWN,TRIM4#

main71071-1C100-03iEP70..3D..STD198812-198902

STARLET JOY,FB,GRAY & BLUE,GRAY

main71071-1C100-13iEP70..3D..STD198812-198902

STARLET JOY,FB,GRAY & RED,GRAY

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-10560-03iEP7#..STD198410-198612

PF,*HBS,GRAY,GRAY,TRIM1#

main71071-10560-04iEP7#..STD198410-198612

PF,*HBS,BLUE,BLUE,TRIM8#

main71071-10570-03iEP7#..DX,STD,XL198410-198601

FB,GRAY,GRAY,TRIM1#

main71071-10570-04iEP7#..DX,STD,XL198410-198601

FB,BLUE,BLUE,TRIM8#

main71071-10570-13iEP7#..DX,STD,XL198601-198612

FB,GRAY,GRAY,TRIM1#

main71071-10570-14iEP7#..DX,STD,XL198601-198612

FB,BLUE,BLUE,TRIM8#

main71071-10580-02iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,RED,RED,TRIM1#

main71071-10580-03iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,GRAY,GRAY,TRIM1#

main71071-10590-03iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,GRAY,GRAY,TRIM1#; GL PACK,FB,GRAY,GRAY,TRIM1#

main71071-10590-04iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,BLUE,BLUE,TRIM8#; GL PACK,FB,BLUE,BLUE,TRIM8#

main71071-10720-03iEP7#..STD198410-198612

PF,*LBS,GRAY,GRAY,TRIM1#

main71071-10720-04iEP7#..STD198410-198612

PF,*LBS,BLUE,BLUE,TRIM8#

main71071-10820-03iEP7#,NP70..STD,XL198612-198912

FB-B,GRAY,GRAY,TRIM1#

main71071-10820-06iEP7#,NP70..STD,XL198612-198912

FB-B,BROWN,BROWN,TRIM4#

main71071-10830-03iEP71..S198612-198912

FB,GRAY,GRAY,TRIM1#

main71071-10840-03iEP7#..GL198612-198912

FB,GRAY,GRAY,TRIM1#

main71071-10840-06iEP7#..GL198612-198912

FB,BROWN,BROWN,TRIM4#

main71071-10850-03iEP7#,NP70..XL198612-198912

FB-G,GRAY,GRAY,TRIM1#

main71071-10890-03iEP7#,NP70..STD198612-198912

PF,GRAY,GRAY,TRIM1#

main71071-10890-06iEP7#,NP70..STD198612-198912

PF,BROWN,BROWN,TRIM4#

main71071-1C100-03iEP70..3D..STD..EUG198905-198912

SOLEIL,FB,GRAY,GRAY,TRIM1#

main71071-1C100-13iEP70..3D..STD198812-198902

STARLET JOY,FB,GRAY & RED,GRAY

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-10530-03iEP7#..STD198410-198612

PF,*LBS,GRAY,GRAY,TRIM1#

main71073-10530-04iEP7#..STD198410-198612

PF,*LBS,BLUE,BLUE,TRIM8#

main71073-10540-03iEP7#,NP70..STD198612-198912

PF,GRAY,GRAY,TRIM1#

main71073-10540-04iEP7#..STD198410-198612

PF,*HBS,BLUE,BLUE,TRIM8#

main71073-10540-06iEP7#,NP70..STD198612-198912

PF,BROWN,BROWN,TRIM4#

main71073-10560-03iEP7#..DX,STD,XL198410-198601

FB,GRAY,GRAY,TRIM1#

main71073-10560-04iEP7#..DX,STD,XL198410-198601

FB,BLUE,BLUE,TRIM8#

main71073-10560-13iEP7#..DX,STD,XL198601-198612

FB,GRAY,GRAY,TRIM1#

main71073-10560-14iEP7#..DX,STD,XL198601-198612

FB,BLUE,BLUE,TRIM8#

main71073-10570-02iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,RED,RED,TRIM1#

main71073-10570-03iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,GRAY,GRAY,TRIM1#

main71073-10580-03iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,GRAY,GRAY,TRIM1#; GL PACK,FB,GRAY,GRAY,TRIM1#

main71073-10580-04iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,BLUE,BLUE,TRIM8#; GL PACK,FB,BLUE,BLUE,TRIM8#

main71073-10810-03iEP7#,NP70..STD,XL198612-198912

FB-B,GRAY,GRAY,TRIM1#

main71073-10810-06iEP7#,NP70..STD,XL198612-198912

FB-B,BROWN,BROWN,TRIM4#

main71073-10820-03iEP71..S198612-198912

FB,GRAY,GRAY,TRIM1#

main71073-10830-03iEP7#..GL198612-198912

FB,GRAY,GRAY,TRIM1#

main71073-10830-06iEP7#..GL198612-198912

FB,BROWN,BROWN,TRIM4#

main71073-10840-03iEP7#,NP70..XL198612-198912

FB-G,GRAY,GRAY,TRIM1#

main71073-1C080-03iEP70..3D..STD..EUG198905-198912

SOLEIL,FB,GRAY,GRAY,TRIM1#

main71073-1C080-13iEP70..3D..STD198812-198902

STARLET JOY,FB,GRAY & RED,GRAY

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-10030-03iEP7#..STD198410-198612

PF,*LBS,GRAY,GRAY,TRIM1#

main71074-10030-04iEP7#..STD198410-198612

PF,*LBS,BLUE,BLUE,TRIM8#

main71074-10040-03iEP7#,NP70..STD198612-198912

PF,GRAY,GRAY,TRIM1#

main71074-10040-04iEP7#..STD198410-198612

PF,*HBS,BLUE,BLUE,TRIM8#

main71074-10040-06iEP7#,NP70..STD198612-198912

PF,BROWN,BROWN,TRIM4#

main71074-10060-03iEP7#..DX,STD,XL198410-198601

FB,GRAY,GRAY,TRIM1#

main71074-10060-04iEP7#..DX,STD,XL198410-198601

FB,BLUE,BLUE,TRIM8#

main71074-10060-13iEP7#..DX,STD,XL198601-198612

FB,GRAY,GRAY,TRIM1#

main71074-10060-14iEP7#..DX,STD,XL198601-198612

FB,BLUE,BLUE,TRIM8#

main71074-10080-03iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,GRAY,GRAY,TRIM1#; GL PACK,FB,GRAY,GRAY,TRIM1#

main71074-10080-04iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,BLUE,BLUE,TRIM8#; GL PACK,FB,BLUE,BLUE,TRIM8#

main71074-10170-02iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,RED,RED,TRIM1#

main71074-10170-03iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,GRAY,GRAY,TRIM1#

main71074-10300-03iEP71..S198612-198912

FB,GRAY,GRAY,TRIM1#

main71074-10320-03iEP7#,NP70..STD,XL198612-198912

FB-B,GRAY,GRAY,TRIM1#

main71074-10320-06iEP7#,NP70..STD,XL198612-198912

FB-B,BROWN,BROWN,TRIM4#

main71074-10330-03iEP7#..GL198612-198912

FB,GRAY,GRAY,TRIM1#

main71074-10330-06iEP7#..GL198612-198912

FB,BROWN,BROWN,TRIM4#

main71074-10340-03iEP7#,NP70..XL198612-198912

FB-G,GRAY,GRAY,TRIM1#

main71074-10470-03iEP70..3D..STD..EUG198905-198912

SOLEIL,FB,GRAY,GRAY,TRIM1#

main71074-10470-13iEP70..3D..STD198812-198902

STARLET JOY,FB,GRAY & RED,GRAY

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-10710-03iEP7#..STD198410-198612

PF,*HBS,GRAY,GRAY,TRIM1#

main71410-10710-04iEP7#..STD198410-198612

PF,*HBS,BLUE,BLUE,TRIM8#

main71410-10720-03iEP7#..DX,STD,XL198410-198601

FB,GRAY,GRAY,TRIM1#

main71410-10720-04iEP7#..DX,STD,XL198410-198601

FB,BLUE,BLUE,TRIM8#

main71410-10720-13iEP7#..DX,STD,XL198601-198612

FB,GRAY,GRAY,TRIM1#

main71410-10720-14iEP7#..DX,STD,XL198601-198612

FB,BLUE,BLUE,TRIM8#

main71410-10730-03iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,GRAY,GRAY,TRIM1#; GL PACK,FB,GRAY,GRAY,TRIM1#

main71410-10730-04iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,BLUE,BLUE,TRIM8#; GL PACK,FB,BLUE,BLUE,TRIM8#

main71410-10740-02iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,RED,RED,TRIM1#

main71410-10740-03iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,GRAY,GRAY,TRIM1#

main71410-10860-03iEP7#..STD198410-198612

PF,*LBS,GRAY,GRAY,TRIM1#

main71410-10860-04iEP7#..STD198410-198612

PF,*LBS,BLUE,BLUE,TRIM8#

main71410-1C070-03iEP7#,NP70..STD,XL198612-198912

FB-B,GRAY,GRAY,TRIM1#

main71410-1C070-06iEP7#,NP70..STD,XL198612-198912

FB-B,BROWN,BROWN,TRIM4#

main71410-1C080-03iEP7#,NP70..LHD..XL198612-198912

W/SEAT UNDER POCKET,FB,GRAY,GRAY,TRIM1#

main71410-1C080-06iEP7#,NP70..LHD..XL198612-198912

W/SEAT UNDER POCKET,FB,BROWN,BROWN,TRIM4#

main71410-1C090-03iEP7#,NP70..LHD..XL198612-198912

W/SEAT UNDER POCKET,FB-G,GRAY,GRAY,TRIM1#

main71410-1C100-03iEP71..S198612-198912

FB,GRAY,GRAY,TRIM1#

main71410-1C110-03iEP71..S198612-198912

W/SEAT UNDER POCKET,FB,GRAY,GRAY,TRIM1#

main71410-1C120-03iEP7#..GL198612-198912

FB,GRAY,GRAY,TRIM1#

main71410-1C120-06iEP7#..GL198612-198912

FB,BROWN,BROWN,TRIM4#

main71410-1C140-03iEP7#..LHD..GL198612-198912

W/SEAT UNDER POCKET,FB,GRAY,GRAY,TRIM1#

main71410-1C140-06iEP7#..LHD..GL198612-198912

W/SEAT UNDER POCKET,FB,BROWN,BROWN,TRIM4#

main71410-1C150-03iEP7#,NP70..STD198612-198912

PF,GRAY,GRAY,TRIM1#

main71410-1C150-06iEP7#,NP70..STD198612-198912

PF,BROWN,BROWN,TRIM4#

main71410-1C160-03iEP7#,NP70..XL198612-198912

FB-G,GRAY,GRAY,TRIM1#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-10550-03iEP7#..STD198410-198612

PF,*HBS,GRAY,GRAY,TRIM1#

main71420-10550-04iEP7#..STD198410-198612

PF,*HBS,BLUE,BLUE,TRIM8#

main71420-10560-03iEP7#..DX,STD,XL198410-198601

FB,GRAY,GRAY,TRIM1#

main71420-10560-04iEP7#..DX,STD,XL198410-198601

FB,BLUE,BLUE,TRIM8#

main71420-10560-13iEP7#..DX,STD,XL198601-198612

FB,GRAY,GRAY,TRIM1#

main71420-10560-14iEP7#..DX,STD,XL198601-198612

FB,BLUE,BLUE,TRIM8#

main71420-10570-03iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,GRAY,GRAY,TRIM1#; GL PACK,FB,GRAY,GRAY,TRIM1#

main71420-10570-04iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,BLUE,BLUE,TRIM8#; GL PACK,FB,BLUE,BLUE,TRIM8#

main71420-10580-02iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,RED,RED,TRIM1#

main71420-10580-03iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,GRAY,GRAY,TRIM1#

main71420-10690-03iEP7#..STD198410-198612

PF,*LBS,GRAY,GRAY,TRIM1#

main71420-10690-04iEP7#..STD198410-198612

PF,*LBS,BLUE,BLUE,TRIM8#

main71420-10760-03iEP7#,NP70..STD,XL198612-198912

FB-B,GRAY,GRAY,TRIM1#

main71420-10760-06iEP7#,NP70..STD,XL198612-198912

FB-B,BROWN,BROWN,TRIM4#

main71420-10770-03iEP7#,NP70..RHD..XL198612-198912

W/SEAT UNDER POCKET,FB,GRAY,GRAY,TRIM1#

main71420-10770-06iEP7#,NP70..RHD..XL198612-198912

W/SEAT UNDER POCKET,FB,BROWN,BROWN,TRIM4#

main71420-10780-03iEP7#,NP70..XL198612-198912

FB-G,GRAY,GRAY,TRIM1#

main71420-10790-03iEP71..S198612-198912

FB,GRAY,GRAY,TRIM1#

main71420-10800-03iEP7#..GL198612-198912

FB,GRAY,GRAY,TRIM1#

main71420-10800-06iEP7#..GL198612-198912

FB,BROWN,BROWN,TRIM4#

main71420-10810-03iEP70..RHD..GL198612-198912

W/SEAT UNDER POCKET,FB,GRAY,GRAY,TRIM1#

main71420-10810-06iEP70..RHD..GL198612-198912

W/SEAT UNDER POCKET,FB,BROWN,BROWN,TRIM4#

main71420-10840-03iEP7#,NP70..STD198612-198912

PF,GRAY,GRAY,TRIM1#

main71420-10840-06iEP7#,NP70..STD198612-198912

PF,BROWN,BROWN,TRIM4#

main71420-10850-03iEP7#,NP70..RHD..XL198612-198912

W/SEAT UNDER POCKET,FB-G,GRAY,GRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-10630-03iEP7#..DX,STD,XL198410-198601

FB,GRAY,GRAY,TRIM1#

main71430-10630-04iEP7#..DX,STD,XL198410-198601

FB,BLUE,BLUE,TRIM8#

main71430-10630-13iEP7#..DX,STD,XL198601-198612

FB,GRAY,GRAY,TRIM1#

main71430-10630-14iEP7#..DX,STD,XL198601-198612

FB,BLUE,BLUE,TRIM8#

main71430-10640-03iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,GRAY,GRAY,TRIM1#; GL PACK,FB,GRAY,GRAY,TRIM1#

main71430-10640-04iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,BLUE,BLUE,TRIM8#; GL PACK,FB,BLUE,BLUE,TRIM8#

main71430-10650-02iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,RED,RED,TRIM1#

main71430-10650-03iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,GRAY,GRAY,TRIM1#

main71430-10770-03iEP7#..STD198410-198612

PF,*HBS,GRAY,GRAY,TRIM1#

main71430-10770-04iEP7#..STD198410-198612

PF,*HBS,BLUE,BLUE,TRIM8#

main71430-10770-06iEP7#,NP70..STD198612-198912

PF,BROWN,BROWN,TRIM4#

main71430-10780-03iEP7#..STD198410-198612

PF,*LBS,GRAY,GRAY,TRIM1#

main71430-10780-04iEP7#..STD198410-198612

PF,*LBS,BLUE,BLUE,TRIM8#

main71430-1C020-03iEP7#,NP70..STD,XL198612-198912

FB-B,GRAY,GRAY,TRIM1#

main71430-1C020-06iEP7#,NP70..STD,XL198612-198912

FB-B,BROWN,BROWN,TRIM4#

main71430-1C030-03iEP7#,NP70..XL198612-198912

FB-G,GRAY,GRAY,TRIM1#

main71430-1C040-03iEP71..S198612-198912

FB,GRAY,GRAY,TRIM1#

main71430-1C050-03iEP7#..GL198612-198912

FB,GRAY,GRAY,TRIM1#

main71430-1C050-06iEP7#..GL198612-198912

FB,BROWN,BROWN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-10630-03iEP7#..DX,STD,XL198410-198601

FB,GRAY,GRAY,TRIM1#

main71440-10630-04iEP7#..DX,STD,XL198410-198601

FB,BLUE,BLUE,TRIM8#

main71440-10630-13iEP7#..DX,STD,XL198601-198612

FB,GRAY,GRAY,TRIM1#

main71440-10630-14iEP7#..DX,STD,XL198601-198612

FB,BLUE,BLUE,TRIM8#

main71440-10640-03iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,GRAY,GRAY,TRIM1#; GL PACK,FB,GRAY,GRAY,TRIM1#

main71440-10640-04iEP7#..(DX,XL)..(EUG,FRG); EP7#..GL198410-198612

FB,BLUE,BLUE,TRIM8#; GL PACK,FB,BLUE,BLUE,TRIM8#

main71440-10650-02iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,RED,RED,TRIM1#

main71440-10650-03iEP71..3D..5F..(DX,XL)198410-198612

S PACK,FB,BLUE,GRAY,TRIM8#

main71440-10760-03iEP7#,NP70..STD198612-198912

PF,GRAY,GRAY,TRIM1#

main71440-10760-04iEP7#..STD198410-198612

PF,*HBS,BLUE,BLUE,TRIM8#

main71440-10760-06iEP7#,NP70..STD198612-198912

PF,BROWN,BROWN,TRIM4#

main71440-10770-03iEP7#..STD198410-198612

PF,*LBS,GRAY,GRAY,TRIM1#

main71440-10770-04iEP7#..STD198410-198612

PF,*LBS,BLUE,BLUE,TRIM8#

main71440-10880-03iEP71..S198612-198912

FB,GRAY,GRAY,TRIM1#

main71440-1C010-03iEP7#,NP70..STD,XL198612-198912

FB-B,GRAY,GRAY,TRIM1#

main71440-1C010-06iEP7#,NP70..STD,XL198612-198912

FB-B,BROWN,BROWN,TRIM4#

main71440-1C020-03iEP7#,NP70..XL198612-198912

FB-G,GRAY,GRAY,TRIM1#

main71440-1C030-03iEP7#..GL198612-198912

FB,GRAY,GRAY,TRIM1#

main71440-1C030-06iEP7#..GL198612-198912

FB,BROWN,BROWN,TRIM4#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-10010iEP7#,NP70..STD198410-198912

*HBS

main71505-10020iEP7#198410-198612

*LBS

main71505-10030iEP71..3D..5F..(DX,XL)198410-198612

S PACK

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71506-10010iEP7#,NP70..STD198410-198912

*HBS

main71506-10020iEP7#,NP70..GL,XL198612-198912

*LBS

main71506-10030iEP71..3D..5F..(DX,XL)198410-198612

S PACK

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-10100iEP7#,NP70198612-198912

main71511-10170iEP7#198410-198612

main71511-10210iEP71..3D..5F..(DX,XL)198410-198612

S PACK

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-10100iEP7#,NP70198612-198912

main71511-10170iEP7#198410-198612

main71511-10210iEP71..3D..5F..(DX,XL)198410-198612

S PACK

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071×33iEP7#,NP70198410-198912

71831DCOVER, FRONT SEAT HINGE, RH

main71831-10010iEP7#,NP70198410-198912

71832DCOVER, FRONT SEAT HINGE, LH

main71831-10010iEP7#,NP70198410-198912

9038612016

main90386-12016

9052308001

main90523-08001

19 parts on this diagram · 4 diagrams in section
