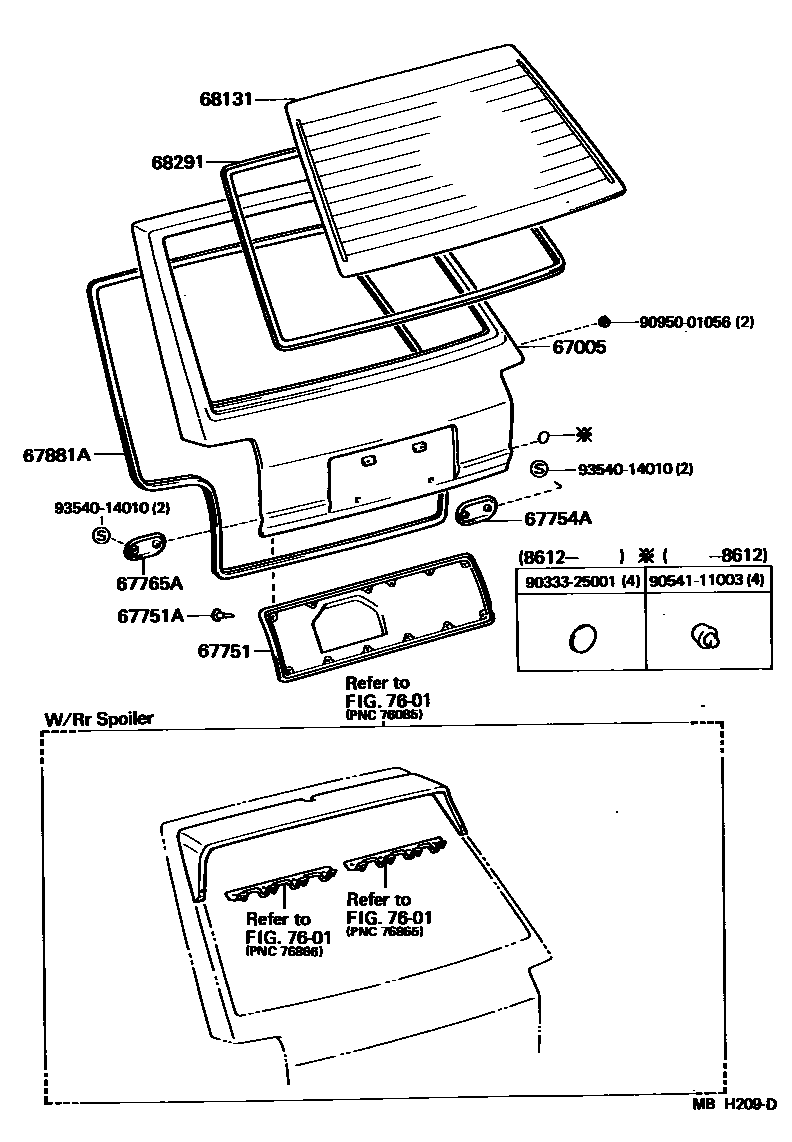

BACK DOOR PANEL & GLASS
67005PANEL SUB-ASSY, BACK DOOR
W/RR SPOILER
W/RR SPOILER
W/O *RW,W/FOG LAMP
W/O *RW,W/FOG LAMP
W/O *RW,W/FOG LAMP
W/*RW,FOG LAMP
W/*RW,FOG LAMP
W/*RW,FOG LAMP
W/O *RW,W/FOG LAMP
W/O *RW,W/FOG LAMP
W/O *RW,W/FOG LAMP
W/*RW,FOG LAMP
W/*RW,FOG LAMP
W/*RW,FOG LAMP
W/O *RW,FOG LAMP,W/*DEF
W/O *RW,FOG LAMP,W/*DEF
W/*RW,W/O FOG LAMP,SPOILER
W/*RW,W/O FOG LAMP,SPOILER
W/*RW,FOG LAMP,RR SPOILER
W/O *RW,*DEF,FOG LAMP
W/*RW,FOG LAMP,RR SPOILER
W/*HSL
W/RR SPOILER & *HSL
67751BOARD, BACK DOOR TRIM
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
GRAY,GRAY,TRIM1#
BROWN,SEPIA BROWN,TRIM4#
BLUE,BLUE,TRIM8#
67754ACOVER, BACK DOOR HOLE
67765ACOVER, BACK DOOR SERVICE HOLE, NO.1
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*EHT,T=3.5
*EHTT,T=3.5
*EHTT,T=3.5,HEAVY TYPE
*EHT,T=3.5,HEAVY TYPE
*TEM,T=3.5
*TT,T=3.5
68291WEATHERSTRIP, BACK DOOR GLASS
7601MUDGUARD & SPOILER
9033325001
main90333-25001
9054111003
main90541-11003
9095001056
main90950-01056
9354014010
main93540-14010
13 parts on this diagram · 1 diagram in section
