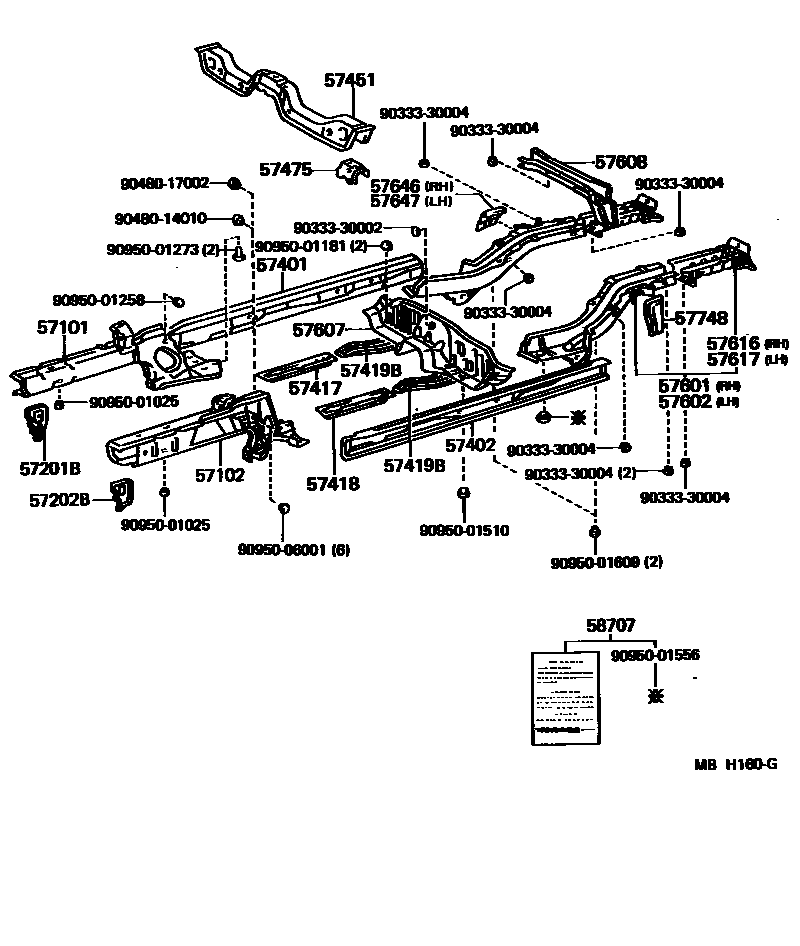

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-10160iEP7#198410-198601

main57101-10161iEP7#198601-198912

main57101-10250iNP70198612-198912

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-10150iEP7#198410-198601

main57102-10151iEP7#198601-198612

main57102-10290iEP7#,NP70198612-198912

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-10020iEP7#,NP70198410-198912

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-10020iEP7#,NP70198410-198912

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-10100iEP7#198410-198612

main57401-10110iEP7#,NP70..5D198612-198912

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-10100iEP7#198410-198612

main57402-10110iEP7#,NP70..5D198612-198912

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-10060iEP7#,NP70198410-198912

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-10050iEP7#,NP70198410-198912

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-10020×2iEP7#,NP70198410-198912

57451MEMBER, FRONT FLOOR CROSS

main57451-10050iEP7#,NP70198410-198912

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-10030iEP7#,NP70198410-198912

RH

main57476-10020iEP7#,NP70198410-198912

LH

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-10050iEP7#..EUG,FRG198707-198912

main57601-10070iEP71..SDZ198707-198912

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-10050iEP7#,NP70198410-198912

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-10060iEP7#,NP70198410-198912

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-10060iEP7#,NP70198410-198912

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-10900iEP7#..EUG; EP70..FRG198707-198912

main57615-10902iNP70198612-198912

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-10900iEP7#,NP70198410-198912

57646REINFORCEMENT, REAR SIDE MEMBER TO BODY, RH

main57646-10020iEP7#,NP70198410-198912

57647REINFORCEMENT, REAR SIDE MEMBER TO BODY, LH

main57647-10020iEP7#,NP70198410-198912

57748REINFORCEMENT, LATERAL ROD BRACKET

main57748-10010iEP7#,NP70198410-198912

58707PLUG SET, HOLE

main58707-10010iEP7#198608-198912

9033330002

main90333-30002

9033330004

main90333-30004

9048014010

main90480-14010

9048017002

main90480-17002

9095001025

main90950-01025

9095001181

main90950-01181

9095001258

main90950-01258

9095001273

main90950-01273

9095001510

main90950-01510

9095001556

main90950-01556

9095001609

main90950-01609

9095006001

main90950-06001

33 parts on this diagram · 1 diagram in section
