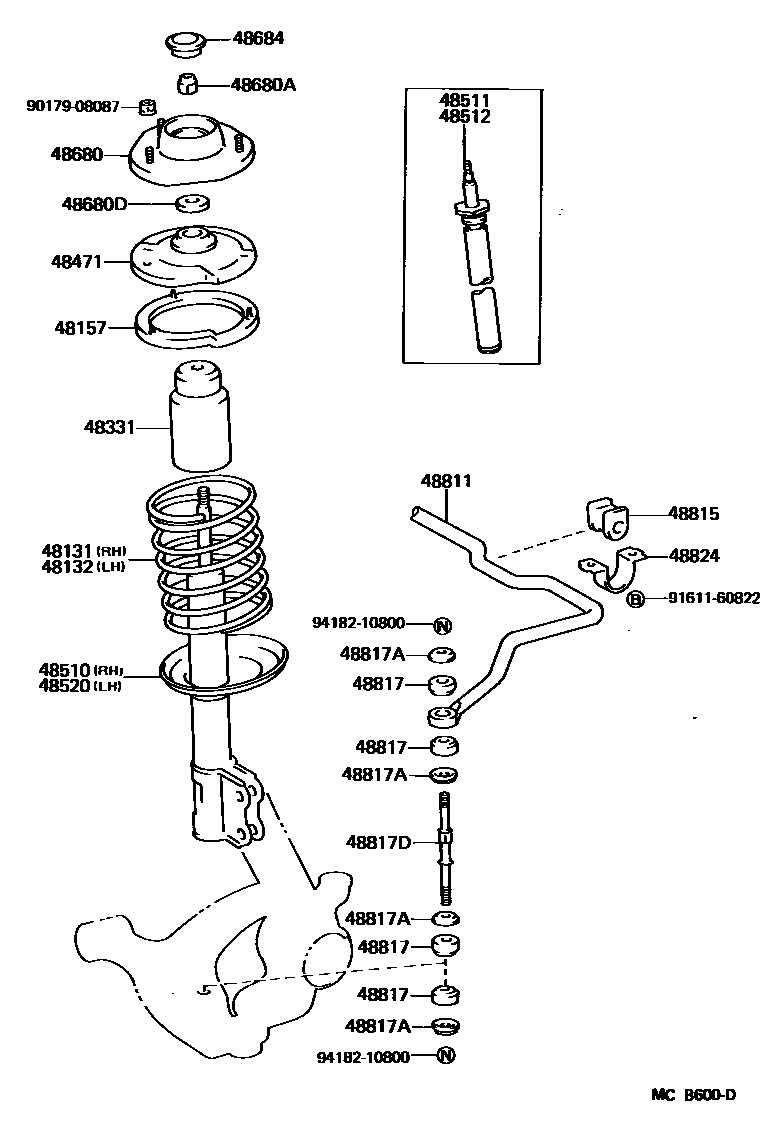

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-10200iEP7#..LHD..MTM..(DX,GL,STD,XL)198410-198912

main48131-10210iEP7#..RHD198410-198912

main48131-10210iEP7#..LHD..MTM..(GL,STD,XL)..EUG198410-198912

W/COOLER

main48131-10220iEP71..3FC..XL198410-198612

W/COOLER

main48131-10240iEP71..3D..5F..(DX,XL)198410-198612

S PACK

main48131-10240iEP71..S198612-198912

main48131-10250iEP71..S..EUG198612-198912

W/COOLER

main48131-10250iEP71198410-198612

S PACK(W/COOLER)

main48131-10360iNP70..LHD198612-198912

main48131-10370iNP70..RHD198612-198912

48132SPRING, FRONT COIL, LH

main48131-10200iEP7#..RHD198410-198912

main48131-10210iEP7#..LHD..MTM..(DX,GL,STD,XL)198410-198912

main48131-10220iEP7#..LHD..MTM198410-198912

W/COOLER

main48131-10220iEP71..3FC198410-198912

main48131-10250iEP71..S198612-198912

W/COOLER

main48131-10250iEP71..3D..5F..(DX,XL)198410-198612

S PACK

main48131-10250iEP71..3D..5F..(DX,XL)198410-198612

S PACK(W/COOLER)

main48131-10260iEP71..3FC..XL198410-198612

W/COOLER

main48131-10360iNP70..RHD198612-198912

main48131-10370iNP70..LHD198612-198912

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-10010iEP7#,NP70198410-198912

48331BUMPER, FRONT SPRING, NO.1

main48331-10070iEP7#,NP70198410-198912

48471SEAT, FRONT SPRING, UPPER

main48044-10020iEP7#,NP70198410-198912

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-10130iEP7#..GL,STD,XL198410-198701

sub48510-10131

sub90105-12069

sub90179-12066

main48510-10131iEP7#..GL,STD,XL198701-198912

sub48510-10420

main48510-10140iNP70198612-198701

sub48510-10141

sub90105-12069

sub90179-12066

main48510-10140iEP71..3D..5F..(DX,XL)198410-198612

S PACK

sub48510-10141

sub90105-12069

sub90179-12066

main48510-10141iNP70198612-198912

sub48510-10131

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-10060iEP7#..GL,STD,XL198410-198912

sub48511-10100

main48511-10090iNP70198612-198912

sub48511-10100

main48511-10090iEP71..3D..5F..(DX,XL)198410-198612

S PACK

sub48511-10100

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-10060iEP7#..GL,STD,XL198410-198912

sub48511-10100

main48511-10090iNP70198612-198912

sub48511-10100

main48511-10090iEP71..3D..5F..(DX,XL)198410-198612

S PACK

sub48511-10100

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-10110iEP7#..GL,STD,XL198410-198701

sub48520-10111

sub90105-12069

sub90179-12066

main48520-10111iEP7#..GL,STD,XL198701-198912

sub48520-10400

main48520-10120iEP71..S198612-198701

sub48520-10121

sub90105-12069

sub90179-12066

main48520-10120iEP71..3D..5F..(DX,XL)198410-198612

S PACK

sub48520-10121

sub90105-12069

sub90179-12066

main48520-10121iNP70198612-198912

sub48520-10111

48680SUPPORT ASSY, FRONT SUSPENSION

main48609-10060iEP7#198410-198912

main48609-10080iNP70198612-198912

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iEP7#,NP70198410-198912

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iEP7#,NP70198410-198912

48684COVER, BEARING DUST

main48684-10010iEP7#,NP70198410-198912

48811BAR, STABILIZER, FRONT

main48811-10170iEP71..XL..SDZ198608-198612

SWEDEN SPEC

main48811-10170iEP71..3D..5F..XL198410-198612

S PACK

main48811-10170iEP71..S..EUG198612-198712

main48811-10230iEP71..FRG198605-198612

S PACK

main48811-10230iEP71..S..SDZ198612-198912

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14130iEP71..3D..5F..(DX,XL)198410-198612

S PACK

main48815-14130iEP71..S198612-198912

48817CUSHION, FRONT STABILIZER

main48817-30020iEP71..S198612-198912

main48817-30020iEP71..3D..5F..(DX,XL)198410-198612

S PACK

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iEP71..3D..5F..(DX,XL)198410-198612

S PACK

main90948-02032iEP71..S198612-198912

48817DBOLT(FOR FRONT STABILIZER)

main48819-20030iEP71..3D..5F..(DX,XL)198410-198612

S PACK

main48819-20030iEP71..S198612-198912

48824BRACKET, STABILIZER, FRONT

main48824-20040iEP71..S198612-198912

main48824-20040iEP71..3D..5F..(DX,XL)198410-198612

S PACK

9017908087

main90179-08087

9161160822

main91611-60822

9418210800

main94182-10800

22 parts on this diagram · 1 diagram in section
