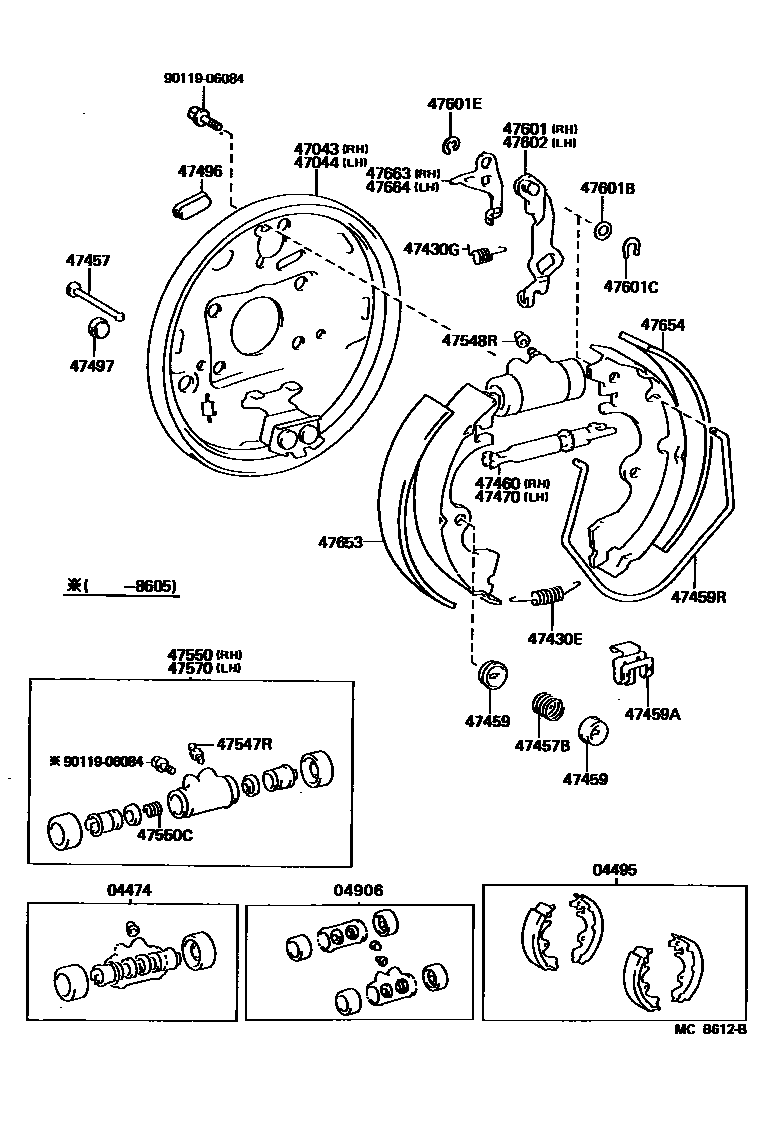

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04474CYLINDER KIT, REAR WHEEL
04906CUP KIT, REAR WHEEL CYLINDER
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
sub47043-10050
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
sub47044-10050
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)
47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47459ACLAMP(FOR SHOE RETURN SPRING)
47459RSPRING, SHOE RETURN(FOR REAR BRAKE)
47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
sub47061-16030
47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
sub47062-16030
47496PLUG, HOLE(FOR REAR BRAKE)
47497PLUG, HOLE NO.2(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
sub90029-60014
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601BSHIM, REAR PARKING BRAKE SHOE LEVER
T=0.3,T=0.3
T=0.6,T=0.6
T=0.9,T=0.9
T=0.2,T=0.2
T=0.4,T=0.4
T=0.5,T=0.5
47601CWASHER, C(FOR REAR BRAKE)
T=1.2
47601ERING, E(FOR REAR BRAKE)
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
9011906084
main90119-06084
31 parts on this diagram · 1 diagram in section
