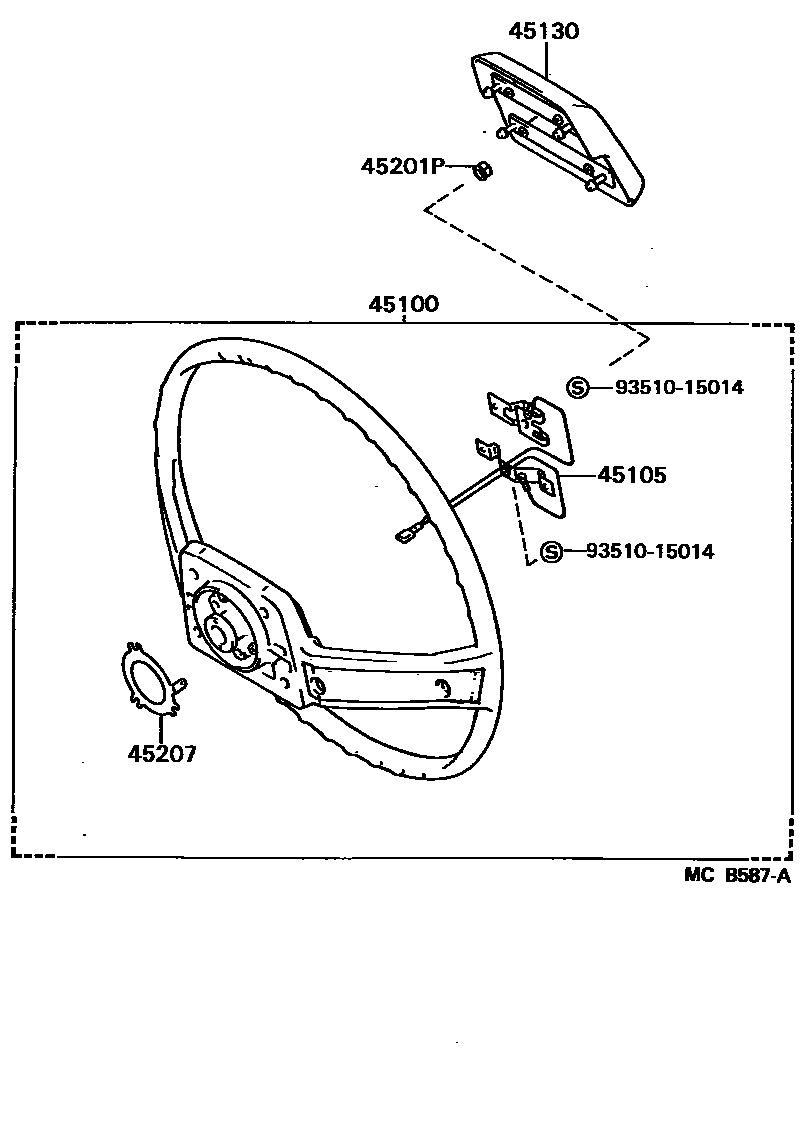

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-10261-01iEP71198410-198612

LEATHER,BLACK,BLACK,TRIM1#

sub45100-10261

sub45100-10262

main45100-10262-01iEP71..S198612-198912

BLACK,BLACK,TRIM1#

sub45100-10262

main45100-10270-01iEP70..STD198410-198612

2SPOKE,POLYPROPYLENE,BLACK,BLACK,TRIM1#

sub45100-10270

main45100-10280iEP71;EP70..GL,XL198410-198612

URETHANE

main45100-10280-01iEP71..GL,STD,XL;EP70,NP70..GL,XL198612-198912

BLACK,BLACK,TRIM1#

sub45100-10280

main45100-10290-01iEP70,NP70..STD198612-198912

BLACK,BLACK,TRIM1#

sub45100-10290

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-10010iEP71198410-198612

W/LEATHER

main45105-10010iEP70,NP70..STD198410-198912

main45105-10020iEP71..GL,STD,XL;EP70,NP70..GL,XL198410-198912

W/URETHANE

45130BUTTON ASSY, HORN

main45130-10060-01iEP71;EP70..GL,XL198410-198612

URETHANE,BLACK,BLACK,TRIM1#

sub45130-10060

main45130-10070-01iEP71198410-198612

LEATHER,BLACK,BLACK,TRIM1#

sub45130-10070

main45130-10090-01iEP70..STD198410-198612

BLACK,BLACK,TRIM1#

main45130-10110-01iEP70,NP70..STD198612-198912

BLACK,BLACK,TRIM1#

main45130-10120-01iEP71..GL,STD,XL;EP70,NP70..GL,XL198612-198912

BLACK,BLACK,TRIM1#

main45130-10130-01iEP71..S198612-198912

BLACK

45201PNUT, STEERING WHEEL SET

main90179-12086iEP7#198410-198912

45207RING, HORN CONTACT

main45176-30070iEP71..GL,STD,XL;EP70,NP70..GL,XL198410-198912

W/URETHANE

main45176-35020iEP71198410-198612

W/LEATHER

main45176-35020iEP70,NP70..STD198410-198912

9351015014

main93510-15014

6 parts on this diagram · 2 diagrams in section
