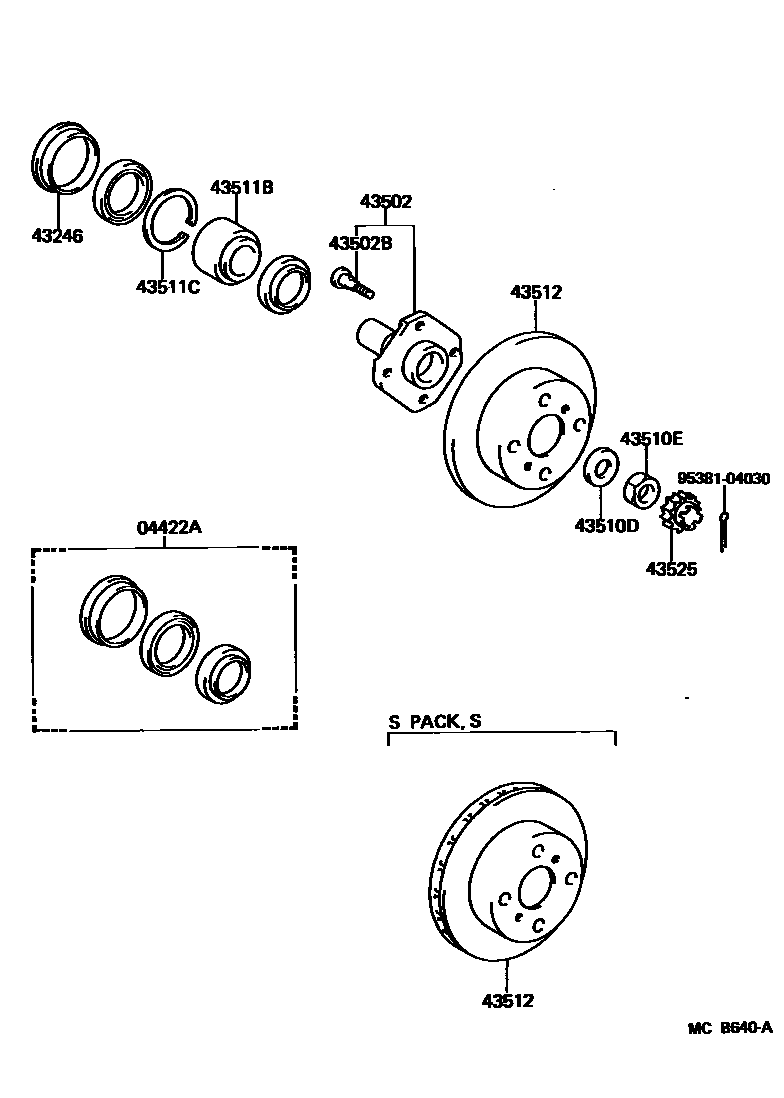

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-10010iEP7#198410-198612

sub04422-10020

main04422-10020iEP7#,NP70198612-198912

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-10010iEP7#198410-198612

43502HUB SUB-ASSY, FRONT AXLE

main43502-10020iEP7#,NP70198410-198912

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iEP7#,NP70198410-198912

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20012iEP7#,NP70198410-198912

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001iEP7#,NP70198410-198912

43511BBEARING (FOR FRONT AXLE HUB)

main90369-35029iEP7#,NP70198410-198912

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-75003iEP7#,NP70198410-198912

T=2.50

43512DISC, FRONT

main43512-10060iEP7#,NP70..DX,GL,STD,XL198410-198912

main43512-10070iEP71198410-198612

S PACK

main43512-10070iEP71..S198612-198707

main43512-10070iEP71..3D..(DX,S,XL)198707-198912

SWEDEN SPEC

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iEP7#,NP70198410-198912

9538104030

main95381-04030

11 parts on this diagram · 1 diagram in section
