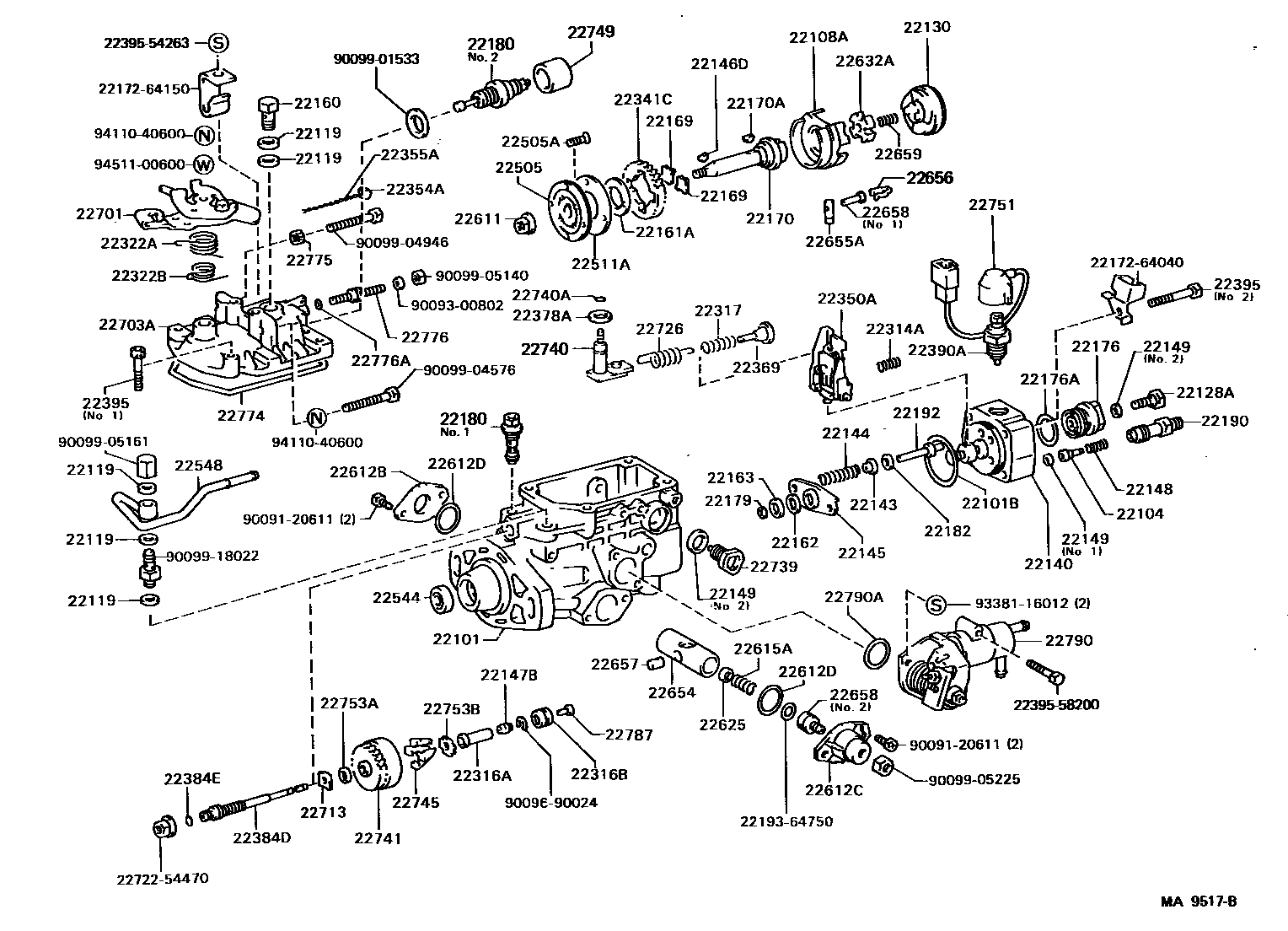

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
NO.1
NO.2
22160SCREW SUB-ASSY, OVERFLOW
22161AWASHER, DRIVE SHAFT
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
22179SHIM, PLUNGER ADJUSTING
T=1.9,T=1.9
T=2.0,T=2.0
T=2.1,T=2.1
T=2.2,T=2.2
T=2.3,T=2.3
T=2.4,T=2.4
T=2.5,T=2.5
T=2.6,T=2.6
T=2.7,T=2.7
T=2.8,T=2.8
T=2.9,T=2.9
22180VALVE SUB-ASSY, REGULATOR
NO.1
NO.2
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5,T=0.5
T=0.8,T=0.8
T=1.0,T=1.0
T=1.2,T=1.2
T=1.5,T=1.5
T=1.8,T=1.8
T=2.0,T=2.0
22190VALVE SUB-ASSY, SNUBBER
22192GUIDE SUB-ASSY, PLUNGER SPRING
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
MARK 45
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22317SPRING, GOVERNOR DOMPER
K=0.2,L=6.5
22322ASPRING, RETURN
22322BSPRING, RETURN(INNER)
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22354ASEAL, ROD
22355AWIRE, GOVERNOR HOUSING SEAL
22369SEAT, GOVERNOR SPRING
22378AWASHER, GOVERNOR THRUST
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
22395BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
NO.1
NO.2
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22544SEAL, OIL(FOR INJECTION PUMP DRIVE SHAFT)
22548NIPPLE, SWIVEL
22611NUT, TIMER ROUND
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
22615ASPRING, TIMER OUTER
K=3.00,L=37.3
22625WASHER, TIMER SENSOR ADJUSTING
22632ACOUPLING, INJECTION PUMP
22654PISTON, TIMER
22655APIN, TIMER SLIDE
22656CLIP, TIMER
22657CLIP, TIMER
22658STOPPER, TIMER
NO.1
NO.2
22659SPRING, COUPLING
22701LEVER SUB-ASSY, ADJUSTING
MARK"190"
MARK"191"
22703ACOVER SUB-ASSY, GOVERNOR
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05,T=1.05
T=1.25,T=1.25
T=1.45,T=1.45
T=1.65,T=1.65
T=1.85,T=1.85
22726SPRING, SPEED CONTROL
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22749COLLAR, SMOKE SET ADJUSTING
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22775NUT, LOCK(FOR INJECTION PUMP)
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
22787PLUG, GOVERNOR SLEEVE
L=3.3,L=3.3
L=3.4,L=3.4
L=3.5,L=3.5
L=3.6,L=3.6
L=3.7,L=3.7
L=3.8,L=3.8
L=3.9,L=3.9
L=4.0,L=4.0
L=4.1,L=4.1
L=3.0,L=3.0
L=3.1,L=3.1
L=3.2,L=3.2
L=4.2,L=4.2
22790COVER SUB-ASSY, TIMER
22790ARING, O(FOR TIMER COVER)
2217264040CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64040
2217264150CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64150
2219364750RING, O(FOR LEVER CONNECTING PIN)
main22193-64750
2239554263BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54263
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2272254470NUT, GOVERNOR SHAFT ROCK
main22722-54470
9009120611
main90091-20611
9009300802
main90093-00802
9009690024
main90096-90024
9009901533
main90099-01533
9009904576
main90099-04576
9009904946
main90099-04946
9009905140
main90099-05140
9009905161
main90099-05161
9009905225
main90099-05225
9009918022
main90099-18022
9338116012
main93381-16012
9411040600
main94110-40600
9451100600
main94511-00600
