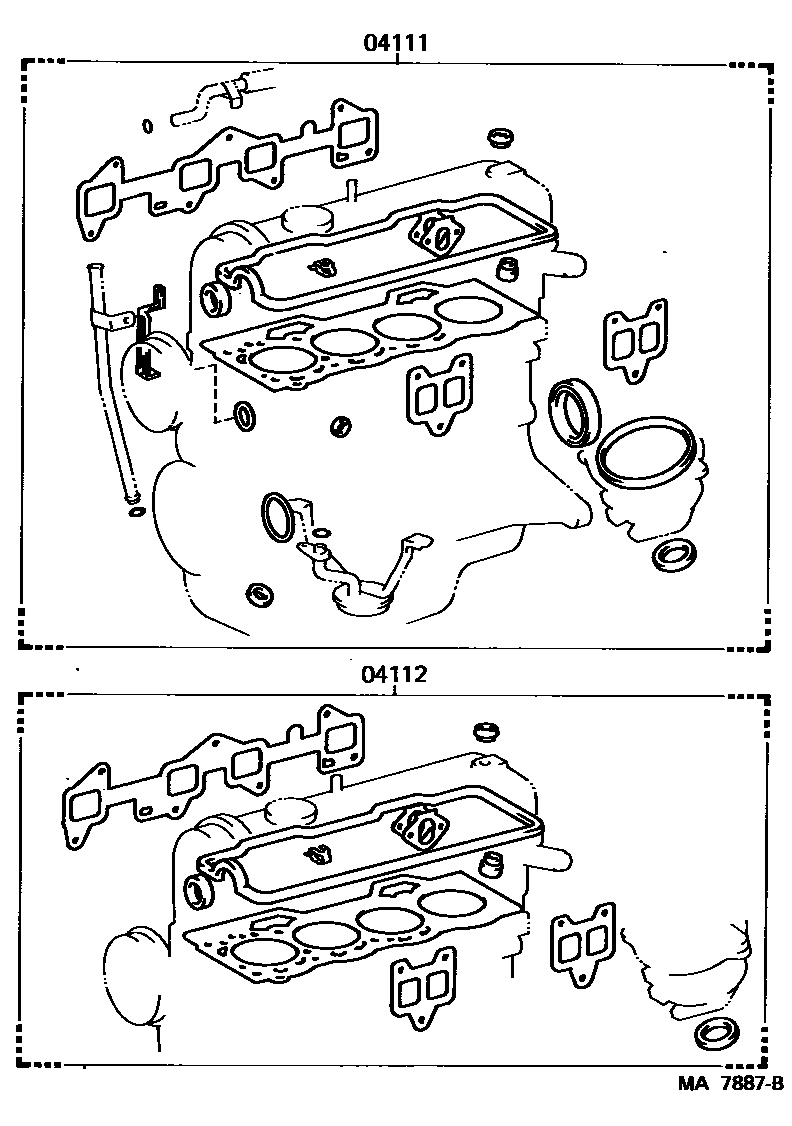

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-10030i1EL..EP70198410-198604

sub04111-10031

main04111-10031i1EL..EP70198604-198912

sub04111-10032

main04111-11020i2EL#..EP71198410-198604

sub04111-11021

main04111-11021i2EL#..EP71198604-198912

sub04111-11022

main04111-55020i1N..NP70198612-198912

sub04111-55021

04112GASKET KIT, ENGINE VALVE GRIND

main04112-10020i1EL..EP70198410-198912

sub04112-10021

main04112-11010i2EL#..EP71198410-198912

sub04112-11011

main04112-55020i1N..NP70198612-198912

sub04112-55021

2 parts on this diagram · 2 diagrams in section
