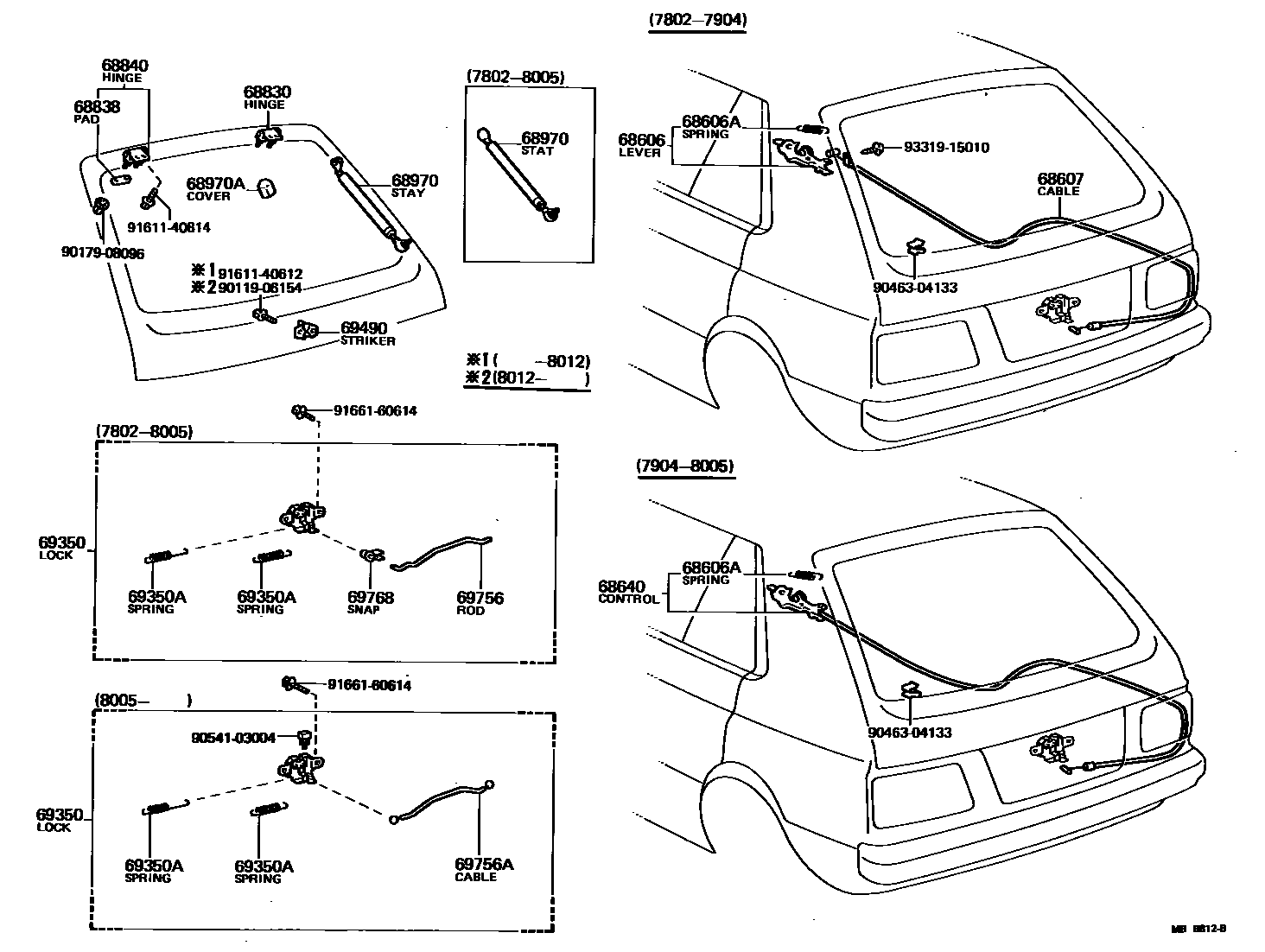

BACK DOOR LOCK & HANDLE

0001 1 0002 1 0003 1

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-10020iKP6#..SED..RHD197802-197904

main64606-10030iKP6#..SED..LHD197802-197904

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004iKP6#..SED197802-198005

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-10020iKP6#..SED..RHD197802-197904

main64607-10030iKP6#..SED..LHD197802-197904

68640CONTROL ASSY, BACK DOOR LOCK

main64640-10021iKP6#..SED..RHD197904-198005

main64640-10031iKP6#..SED..LHD197904-198005

68830HINGE ASSY, BACK DOOR, RH

main68801-10010iKP6#..SED197802-198208

main68801-10011iKP6#..SED198208-198409

main68810-13070iKP6#..4D197911-198409

sub68810-13071

main68810-15030iKP6#..4D197810-197911

sub68810-15031

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021iKP6#..SED198207-198409

sub68838-14022

main68838-15010iKP6#..4D197810-198409

sub68838-15011

main68861-10010iKP6#..SED197802-198207

68840HINGE ASSY, BACK DOOR, LH

main68801-10010iKP6#..SED197802-198208

main68801-10011iKP6#..SED198208-198409

main68810-13070iKP6#..4D197911-198409

sub68810-13071

main68810-15030iKP6#..4D197810-197911

sub68810-15031

68970STAY ASSY, BACK DOOR, RH

main68950-19035iKP6#..SED197802-198005

W/RR WIPER

main68950-19036iKP6#..SED198005-198208

W/RR WIPER

main68950-19037iKP6#..SED198208-198409

W/RR WIPER

main68950-19065iKP60,62..4D..EUG198005-198409

WEST GERMANY SPEC,W/O RR WIPER

main68950-19065iKP6#..4D197810-198005

W/O RR WIPER

main68950-19075iKP6#..4D197810-198005

W/RR WIPER

main68950-19075iKP60,62..4D..EUG198005-198409

WEST GERMANY SPEC,W/RR WIPER

main68950-19076iKP6#..4D198005-198409

W/O RR WIPER

main68950-19085iKP6#..SED197802-198005

W/O RR WIPER

main68950-19086iKP6#..SED198005-198208

W/O RR WIPER

main68950-19087iKP6#..SED198208-198409

W/O RR WIPER

main68950-19175iKP6#..4D198005-198409

W/RR WIPER

68970ACOVER, BACK DOOR STAY

main68911-10010iKP6#..SED198005-198409

69350LOCK ASSY, BACK DOOR

main69350-10010iKP6#..SED197802-198005

main69350-10011iKP6#..SED198005-198208

main69350-10030iKP6#..SED198208-198209

main69350-10031iKP6#..SED198209-198312

sub69350-10021

main69350-10032iKP6#..SED198312-198409

sub69350-10022

main69350-96440iKP6#..4D197810-198005

main69350-96441iKP6#..4D198005-198409

69350ASPRING(FOR BACK DOOR LOCK)

main90506-07001iKP6#..SED197802-198012

L=34

main90506-07003iKP6#..SED198012-198208

L=34

main90506-08008iKP6#..SED197802-198012

L=26

main90506-08015iKP6#..SED198012-198208

L=26

69490STRIKER ASSY, BACK DOOR LOCK

main69430-10010iKP6#..SED197802-198208

main69430-10020iKP6#..SED198208-198409

sub69430-10030

main69430-96440iKP6#..4D197810-198409

69756ROD, BACK DOOR LOCKING CONTROL PUSH

main69764-10020iKP6#..SED197802-198005

69756ACABLE, BACK DOOR LOCKING CONTROL

main64680-10010iKP6#..SED198005-198208

69768SNAP, BACK DOOR LOCK CONTROL LINK

main69377-13010iKP6#..4D198005-198409

main69377-30020iKP6#..4D197810-198005

main69759-10020iKP6#..SED197802-198005

9011906154

main90119-06154

9017908096

main90179-08096

9046304133

main90463-04133

9054103004

main90541-03004

9161140612

main91611-40612

9161140814

main91611-40814

9166160614

main91661-60614

9331915010

main93319-15010

23 parts on this diagram · 3 diagrams in section
