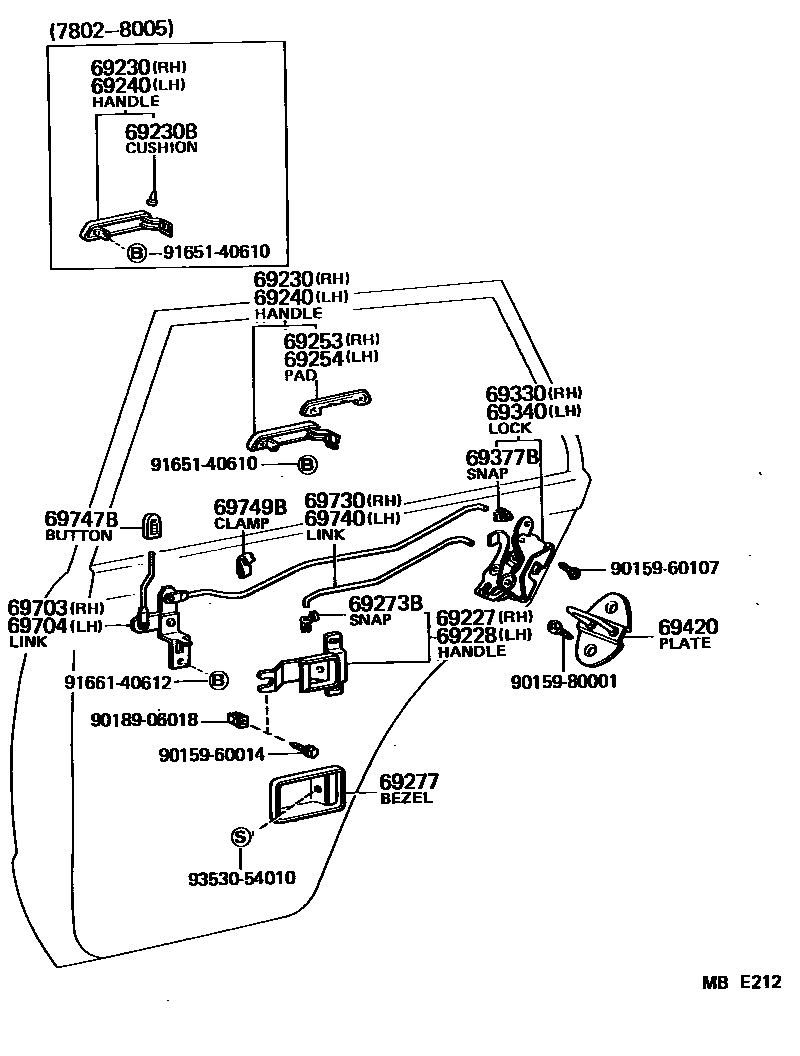

REAR DOOR LOCK & HANDLE
69227HANDLE, REAR DOOR INSIDE, RH
69228HANDLE, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
CHROME PLATED
BLACK
BLACK
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
CHROME PLATED
BLACK
BLACK
69253PAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
69254PAD, DOOR OUTSIDE HANDLE, REAR LH
69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
RH
LH
69277BEZEL, REAR DOOR INSIDE HANDLE
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69377BSNAP, REAR DOOR LOCK CONTROL ROD
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)
sub69741-32010
69749BCLAMP, REAR DOOR LOCK LINK
9015960014
main90159-60014
9015960107
main90159-60107
9015980001
main90159-80001
9018906018
main90189-06018
9165140610
main91651-40610
9166140612
main91661-40612
9353054010
main93530-54010
26 parts on this diagram · 1 diagram in section
