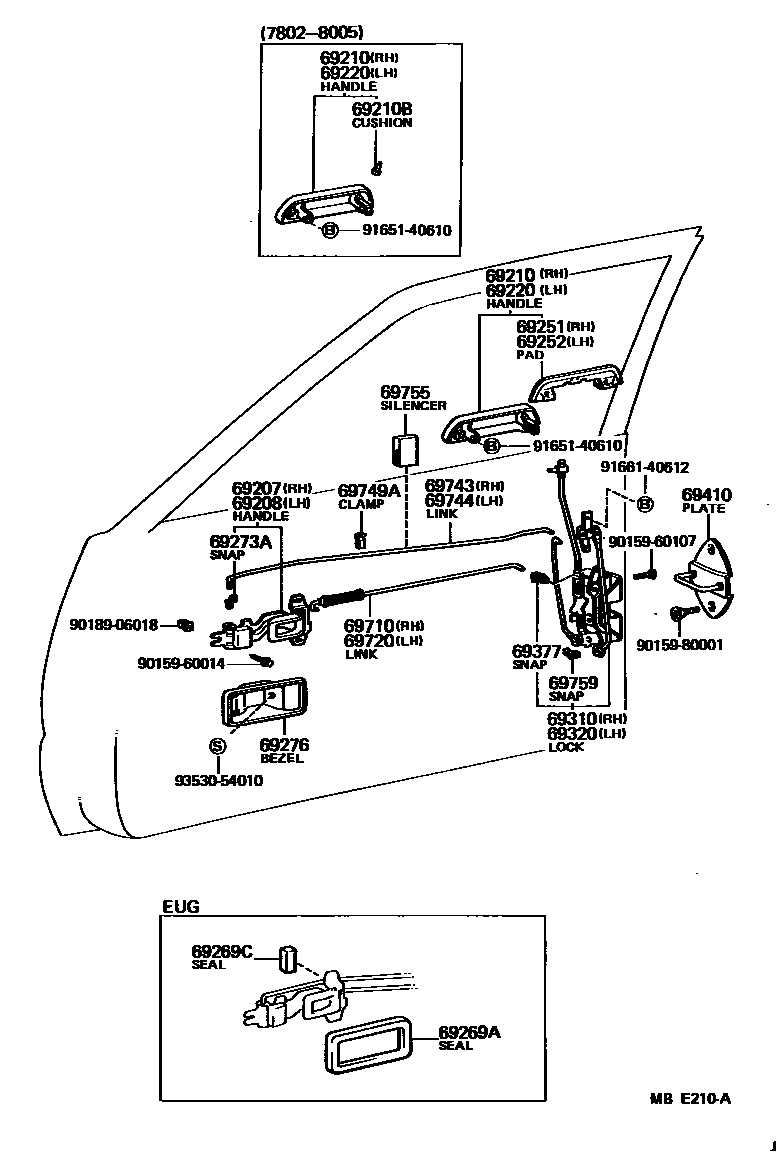

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
CHROME PLATED
BLACK
BLACK
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
CHROME PLATED
BLACK
BLACK
69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69276BEZEL, FRONT DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69755SILENCER, FRONT DOOR LOCK LINK
40X50,W/SLIT
40X40
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
9015960014
main90159-60014
9015960107
main90159-60107
9015980001
main90159-80001
9018906018
main90189-06018
9165140610
main91651-40610
9166140612
main91661-40612
9353054010
main93530-54010
29 parts on this diagram · 2 diagrams in section
