INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

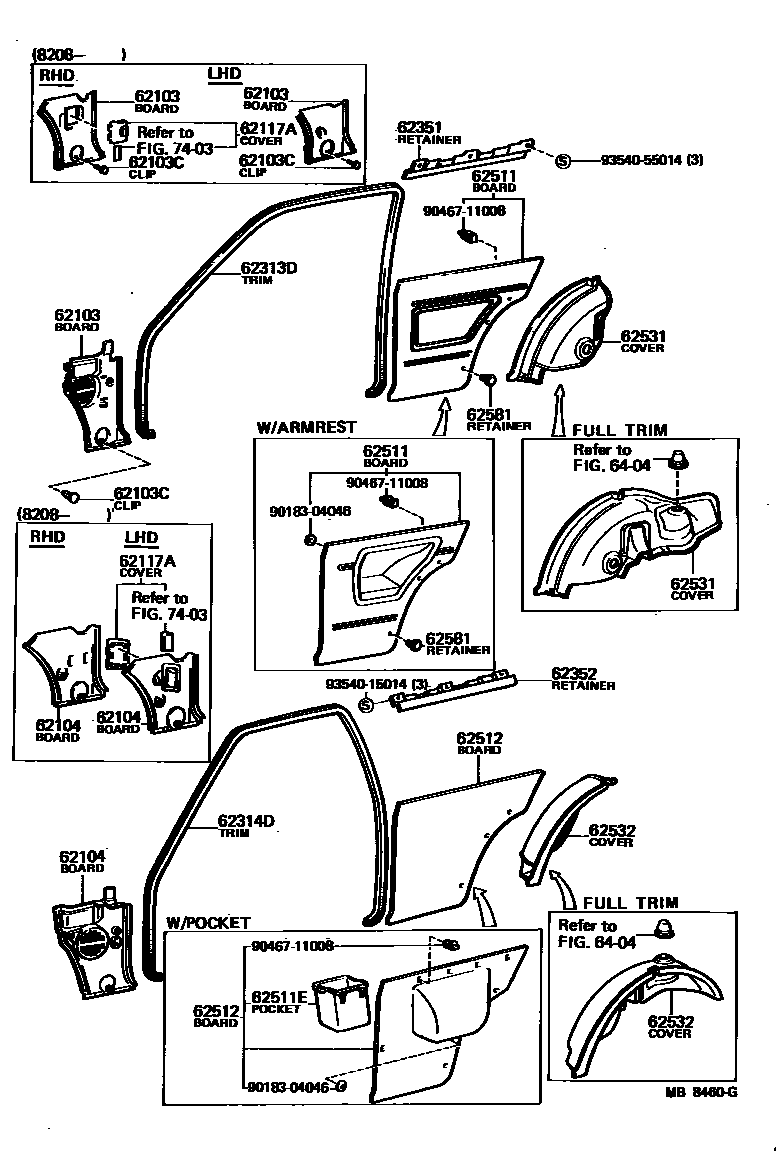

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62101-10010-01i197802-198208
BLACK,BLACK,TRIM2#
sub62101-10010
main62101-10010-04i197802-198005
BLUE,BLUE,TRIM8#
sub62101-10010
main62101-10010-06i197802-198005
L-BROWN,BROWN,TRIM4#
sub62101-10010
main62101-10010-14i198005-198208
BLUE,BLUE,TRIM8#
sub62101-10010
main62101-10010-16i198005-198208
L-BROWN,BROWN,TRIM4#
sub62101-10010
main62101-10020-01i197802-198208
BLACK,BLACK,TRIM2#
sub62101-10020
main62101-10020-04i197802-198005
BLUE,BLUE,TRIM8#
sub62101-10020
main62101-10020-06i197802-198005
L-BROWN,BROWN,TRIM4#
sub62101-10020
main62101-10020-14i198005-198208
BLUE,BLUE,TRIM8#
sub62101-10020
main62101-10020-16i198005-198208
L-BROWN,BROWN,TRIM4#
sub62101-10020
main62111-10030-02i198208-198409
DARK WINE,RED/MAROON,TRIM3#
main62111-10030-03i198208-198409
GRAY,GRAY,TRIM1#
main62111-10030-26i198208-198409
BROWN,BROWN,TRIM4#
main62111-10040-02i198208-198409
DARK WINE,RED/MAROON,TRIM3#
main62111-10040-03i198208-198409
GRAY,GRAY,TRIM1#
main62111-10040-26i198208-198409
BROWN,BROWN,TRIM4#
62103CCLIP, COWL SIDE TRIM BOARD SET
main62581-14010-01i197802-198208
BLACK,BLACK,TRIM2#
sub62581-14010
main62581-14010-02i198208-198409
DARK WINE,RED/MAROON,TRIM3#
sub62581-14010
main62581-14010-23i198208-198409
GRAY,GRAY,TRIM1#
sub62581-14010
main62581-14010-24i197802-198005
BLUE,BLUE,TRIM8#
sub62581-14010
main62581-14010-34i198005-198208
BLUE,BLUE,TRIM8#
sub62581-14010
main62581-14010-36i197802-198005
L-BROWN,BROWN,TRIM4#
sub62581-14010
main62581-14010-46i198005-198208
L-BROWN,BROWN,TRIM4#
sub62581-14010
main62581-14010-56i198208-198409
BROWN,BROWN,TRIM4#
sub62581-14010
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62102-10010-01i197802-198208
BLACK,BLACK,TRIM2#
sub62102-10010
main62102-10010-04i197802-198005
BLUE,BLUE,TRIM8#
sub62102-10010
main62102-10010-06i197802-198005
L-BROWN,BROWN,TRIM4#
sub62102-10010
main62102-10010-14i198005-198208
BLUE,BLUE,TRIM8#
sub62102-10010
main62102-10010-16i198005-198208
L-BROWN,BROWN,TRIM4#
sub62102-10010
main62102-10020-01i197802-198208
BLACK,BLACK,TRIM2#
sub62102-10020
main62102-10020-04i197802-198005
BLUE,BLUE,TRIM8#
sub62102-10020
main62102-10020-06i197802-198005
L-BROWN,BROWN,TRIM4#
sub62102-10020
main62102-10020-14i198005-198208
BLUE,BLUE,TRIM8#
sub62102-10020
main62102-10020-16i198005-198208
L-BROWN,BROWN,TRIM4#
sub62102-10020
main62112-10030-02i198208-198409
DARK WINE,RED/MAROON,TRIM3#
main62112-10030-03i198208-198409
GRAY,GRAY,TRIM1#
main62112-10030-26i198208-198409
BROWN,BROWN,TRIM4#
main62112-10040-02i198208-198409
DARK WINE,RED/MAROON,TRIM3#
main62112-10040-03i198208-198409
GRAY,GRAY,TRIM1#
main62112-10040-26i198208-198409
BROWN,BROWN,TRIM4#
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-10010-02i198208-198409
DARK WINE,RED/MAROON,TRIM3#
main62117-10010-03i198208-198409
GRAY,GRAY,TRIM1#
main62117-10010-26i198208-198409
BROWN,BROWN,TRIM4#
main62117-10020-02i198208-198409
WEST GERMANY SPEC,DARK WINE,RED/MAROON,TRIM3#
main62117-10020-03i198208-198409
WEST GERMANY SPEC,GRAY,GRAY,TRIM1#
main62117-10020-26i198208-198409
WEST GERMANY SPEC,BROWN,BROWN,TRIM4#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-10030-01i197802-198208
BLACK,BLACK,TRIM2#
sub62313-10040
main62313-10030-02i198208-198409
DARK WINE,RED/MAROON,TRIM3#
sub62313-10040
main62313-10030-03i198208-198409
GRAY,GRAY,TRIM1#
sub62313-10040
main62313-10030-04i197802-198208
BLUE,BLUE,TRIM8#
sub62313-10040
main62313-10030-06i197802-198005
L-BROWN,BROWN,TRIM4#
sub62313-10040
main62313-10030-16i198005-198208
L-BROWN,BROWN,TRIM4#
sub62313-10040
main62313-10030-26i198208-198409
BROWN,BROWN,TRIM4#
sub62313-10040
main62313-10040-01i197802-198208
BLACK,BLACK,TRIM2#
sub62313-10040
main62313-10040-02i198208-198409
DARK WINE,RED/MAROON,TRIM3#
sub62313-10040
main62313-10040-03i198208-198409
GRAY,GRAY,TRIM1#
sub62313-10040
main62313-10040-04i197802-198208
BLUE,BLUE,TRIM8#
sub62313-10040
main62313-10040-06i197802-198005
L-BROWN,BROWN,TRIM4#
sub62313-10040
main62313-10040-16i198005-198208
L-BROWN,BROWN,TRIM4#
sub62313-10040
main62313-10040-26i198208-198409
BROWN,BROWN,TRIM4#
sub62313-10040
62314DTRIM, FRONT DOOR OPENING, LH
main62313-10030-01i197802-198208
BLACK,BLACK,TRIM2#
sub62313-10040
main62313-10030-02i198208-198409
DARK WINE,RED/MAROON,TRIM3#
sub62313-10040
main62313-10030-03i198208-198409
GRAY,GRAY,TRIM1#
sub62313-10040
main62313-10030-04i197802-198208
BLUE,BLUE,TRIM8#
sub62313-10040
main62313-10030-06i197802-198005
L-BROWN,BROWN,TRIM4#
sub62313-10040
main62313-10030-16i198005-198208
L-BROWN,BROWN,TRIM4#
sub62313-10040
main62313-10030-26i198208-198409
BROWN,BROWN,TRIM4#
sub62313-10040
main62313-10040-01i197802-198208
BLACK,BLACK,TRIM2#
sub62313-10040
main62313-10040-02i198208-198409
DARK WINE,RED/MAROON,TRIM3#
sub62313-10040
main62313-10040-03i198208-198409
GRAY,GRAY,TRIM1#
sub62313-10040
main62313-10040-04i197802-198208
BLUE,BLUE,TRIM8#
sub62313-10040
main62313-10040-06i197802-198005
L-BROWN,BROWN,TRIM4#
sub62313-10040
main62313-10040-16i198005-198208
L-BROWN,BROWN,TRIM4#
sub62313-10040
main62313-10040-26i198208-198409
BROWN,BROWN,TRIM4#
sub62313-10040
62351RETAINER, QUARTER WINDOW INSIDE TRIM, RH
main62355-10010i197802-198409
62352RETAINER, QUARTER WINDOW INSIDE TRIM, LH
main62356-10010i197802-198409
62511BOARD, QUARTER INSIDE TRIM, RH
main62510-10080-01i197802-198005
W/*NLR,BLACK,BLACK,TRIM2#
main62510-10080-04i197802-198005
W/*NLR,BLUE,BLUE,TRIM8#
main62510-10080-06i197802-198005
W/*NLR,L-BROWN,BROWN,TRIM4#
main62510-10090-01i197802-198208
W/*ELR,BLACK,BLACK,TRIM2#
main62510-10090-04i197802-198208
W/*ELR,BLUE,BLUE,TRIM8#
main62510-10090-06i197802-198005
W/*ELR,L-BROWN,BROWN,TRIM4#
main62510-10090-16i198005-198208
W/*ELR,L-BROWN,BROWN,TRIM4#
main62510-10150-01i197903-198208
W/*ELR,ARMREST,BLACK,BLACK,TRIM2#
main62510-10150-04i197903-198208
W/*ELR,ARMREST,BLUE,BLUE,TRIM8#
main62510-10150-06i197903-198005
W/*ELR,ARMREST,L-BROWN,BROWN,TRIM4#
main62510-10150-16i198005-198208
W/*ELR,ARMREST,L-BROWN,BROWN,TRIM4#
main62510-10170-01i197903-198005
FINLAND SPEC,W/ARMREST,BLACK,BLACK,TRIM2#
main62510-10170-01i197903-198005
W/*NLR,ARMREST,BLACK,BLACK,TRIM2#
main62510-10170-04i197903-198005
FINLAND SPEC,W/ARMREST,BLUE,BLUE,TRIM8#
main62510-10170-04i197903-198005
W/*NLR,ARMREST,BLUE,BLUE,TRIM8#
main62510-10170-06i197903-198005
FINLAND SPEC,W/ARMREST,L-BROWN,BROWN,TRIM4#
main62510-10170-06i197903-198005
W/*NLR,ARMREST,L-BROWN,BROWN,TRIM4#
main62510-10180-01i198005-198208
W/*NLR,BLACK,BLACK,TRIM2#
main62510-10180-04i198005-198208
W/*NLR,BLUE,BLUE,TRIM8#
main62510-10180-06i198005-198208
W/*NLR,L-BROWN,BROWN,TRIM4#
main62510-10190-01i198005-198208
W/*NLR,ARMREST,BLACK,BLACK,TRIM2#
main62510-10190-01i198005-198208
FINLAND SPEC,W/ARMREST,BLACK,BLACK,TRIM2#
main62510-10190-04i198005-198208
W/*NLR,ARMREST,BLUE,BLUE,TRIM8#
main62510-10190-04i198005-198208
FINLAND SPEC,W/ARMREST,BLUE,BLUE,TRIM8#
main62510-10190-06i198005-198208
FINLAND SPEC,W/ARMREST,L-BROWN,BROWN,TRIM4#
main62510-10190-06i198005-198208
W/*NLR,ARMREST,L-BROWN,BROWN,TRIM4#
main62510-10220-02i198208-198409
W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main62510-10220-03i198208-198409
W/O SEAT BELT,LIGHT GRAY,GRAY,TRIM1#
main62510-10220-05i198208-198409
W/O SEAT BELT,BEIGE,BEIGE,TRIM4#
main62510-10230-02i198208-198409
W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main62510-10230-03i198208-198409
W/O SEAT BELT,LIGHT GRAY,GRAY,TRIM1#
main62510-10230-05i198208-198409
W/O SEAT BELT,BEIGE,BEIGE,TRIM4#
main62510-10250-02i198208-198409
W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main62510-10250-03i198208-198409
W/SEAT BELT,LIGHT GRAY,GRAY,TRIM1#
main62510-10250-05i198208-198409
W/SEAT BELT,BEIGE,BEIGE,TRIM4#
main62510-10280-03i198208-198409
W/SEAT BELT GRAY,GRAY,TRIM1#
main62510-10280-05i198208-198409
W/SEAT BELT,BEIGE,BEIGE,TRIM4#
main62510-10320-02i198208-198409
W/SEAT BELT,DARK WINE,DARK WINE,TRIM3#
sub62510-10280
main62631-96440-01i197810-198208
BLACK,BLACK,TRIM2#
sub62631-96440
main62631-96440-03i198208-198409
GRAY,GRAY,TRIM1#
sub62631-96440
main62631-96440-04i197810-198005
BLUE,BLUE,TRIM8#
sub62631-96440
main62631-96440-06i197810-198005
L-BROWN,BROWN,TRIM4#
sub62631-96440
main62631-96440-16i198005-198208
L-BROWN,BROWN,TRIM4#
sub62631-96440
main62631-96440-26i198208-198409
BROWN,BROWN,TRIM4#
sub62631-96440
62511EPOCKET, QUARTER TRIM
main62526-12030-10i198005-198208
L-BROWN,LIGHT BROWN,TRIM4#
sub62526-12030
main62526-12030-13i198208-198409
LIGHT GRAY,GRAY,TRIM1#
sub62526-12030
main62526-12030-22i198208-198409
DARK WINE,RED/MAROON,TRIM3#
sub62526-12030
main62526-12030-25i198208-198409
BEIGE,BEIGE,TRIM4#
sub62526-12030
main62526-12030-31i197903-198208
BLACK,BLACK,TRIM2#
sub62526-12030
main62526-12030-34i197903-198005
BLUE,BLUE,TRIM8#
sub62526-12030
main62526-12030-44i198005-198208
BLUE,BLUE,TRIM8#
sub62526-12030
main62526-12030-56i197903-198005
L-BROWN,BROWN,TRIM4#
sub62526-12030
62512BOARD, QUARTER INSIDE TRIM, LH
main62520-10080-01i197802-198005
W/*NLR,BLACK,BLACK,TRIM2#
main62520-10080-04i197802-198005
W/*NLR,BLUE,BLUE,TRIM8#
main62520-10080-06i197802-198005
W/*NLR,L-BROWN,BROWN,TRIM4#
main62520-10090-01i197802-198208
W/*ELR,BLACK,BLACK,TRIM2#
main62520-10090-04i197802-198208
W/*ELR,BLUE,BLUE,TRIM8#
main62520-10090-06i197802-198005
W/*ELR,L-BROWN,BROWN,TRIM4#
main62520-10090-16i198005-198208
W/*ELR,L-BROWN,BROWN,TRIM4#
main62520-10140-01i197903-198208
W/*ELR,POCKET,BLACK,BLACK,TRIM2#
main62520-10140-04i197903-198208
W/*ELR,POCKET,BLUE,BLUE,TRIM8#
main62520-10140-06i197903-198005
W/*ELR,POCKET,L-BROWN,BROWN,TRIM4#
main62520-10140-16i198005-198208
W/*ELR,POCKET,L-BROWN,BROWN,TRIM4#
main62520-10160-01i197903-198005
W/*NLR,POCKET,BLACK,BLACK,TRIM2#
main62520-10160-01i197903-198005
FINLAND SPEC,W/ARMREST,BLACK,BLACK,TRIM2#
main62520-10160-04i197903-198005
FINLAND SPEC,W/ARMREST,BLUE,BLUE,TRIM8#
main62520-10160-04i197903-198005
W/*NLR,POCKET,BLUE,BLUE,TRIM8#
main62520-10160-06i197903-198005
W/*NLR,POCKET,L-BROWN,BROWN,TRIM4#
main62520-10160-06i197903-198005
FINLAND SPEC,W/ARMREST,L-BROWN,BROWN,TRIM4#
main62520-10170-01i198005-198208
W/*NLR,BLACK,BLACK,TRIM2#
main62520-10170-04i198005-198208
W/*NLR,BLUE,BLUE,TRIM8#
main62520-10170-06i198005-198208
W/*NLR,L-BROWN,BROWN,TRIM4#
main62520-10180-01i198005-198208
W/*NLR,POCKET,BLACK,BLACK,TRIM2#
main62520-10180-01i198005-198208
FINLAND SPEC,W/ARMREST,BLACK,BLACK,TRIM2#
main62520-10180-04i198005-198208
W/*NLR,POCKET,BLUE,BLUE,TRIM8#
main62520-10180-04i198005-198208
FINLAND SPEC,W/ARMREST,BLUE,BLUE,TRIM8#
main62520-10180-06i198005-198208
FINLAND SPEC,W/ARMREST,L-BROWN,BROWN,TRIM4#
main62520-10180-06i198005-198208
W/*NLR,POCKET,L-BROWN,BROWN,TRIM4#
main62520-10210-02i198208-198409
W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main62520-10210-03i198208-198409
W/O SEAT BELT,LIGHT GRAY,GRAY,TRIM1#
main62520-10210-05i198208-198409
W/O SEAT BELT,BEIGE,BEIGE,TRIM4#
main62520-10220-03i198208-198409
W/SEAT BELT,LIGHT GRAY,GRAY,TRIM1#
main62520-10220-05i198208-198409
W/SEAT BELT,BEIGE,BEIGE,TRIM4#
main62520-10240-02i198208-198409
W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main62520-10240-03i198208-198409
W/SEAT BELT,LIGHT GRAY,GRAY,TRIM1#
main62520-10240-05i198208-198409
W/SEAT BELT,BEIGE,BEIGE,TRIM4#
main62520-10270-02i198208-198409
W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main62520-10270-03i198208-198409
W/O SEAT BELT,LIGHT GRAY,GRAY,TRIM1#
main62520-10270-05i198208-198409
W/O SEAT BELT,BEIGE,BEIGE,TRIM4#
main62520-10310-02i198208-198409
W/SEAT BELT,DARK WINE,DARK WINE,TRIM3#
main62602-96440-01i197810-198005
W/RR WIPER,BLACK,BLACK,TRIM2#
main62602-96440-04i197810-198005
W/RR WIPER,BLUE,BLUE,TRIM8#
main62602-96440-06i197810-198005
W/RR WIPER,L-BROWN,BROWN,TRIM4#
main62602-96441-01i198005-198208
W/RR WIPER,BLACK,BLACK,TRIM2#
main62602-96441-06i198005-198208
W/RR WIPER,L-BROWN,BROWN,TRIM4#
main62632-96440-01i197810-198208
BLACK,BLACK,TRIM2#
sub62632-96440
main62632-96440-03i198208-198409
GRAY,GRAY,TRIM1#
sub62632-96440
main62632-96440-04i197810-198005
BLUE,BLUE,TRIM8#
sub62632-96440
main62632-96440-06i197810-198005
L-BROWN,BROWN,TRIM4#
sub62632-96440
main62632-96440-16i198005-198208
L-BROWN,BROWN,TRIM4#
sub62632-96440
main62632-96440-26i198208-198409
BROWN,BROWN,TRIM4#
sub62632-96440
62531COVER, WHEEL HOUSE TRIM, RH
main62610-10010-02i198208-198409
FULL TRIM,DARK WINE,RED/MAROON,TRIM3#
main62610-10010-03i198208-198409
FULL TRIM,GRAY,GRAY,TRIM1#
main62610-10010-16i198208-198409
FULL TRIM,BROWN,BROWN,TRIM4#
main62613-10010-01i197802-198005
FULL TRIM,BLACK,BLACK,TRIM2#
main62613-10010-04i197802-198005
FULL TRIM,BLUE,BLUE,TRIM8#
main62613-10010-06i197802-198005
FULL TRIM,L-BROWN,BROWN,TRIM4#
main62613-10011-01i198005-198208
FULL TRIM,BLACK,BLACK,TRIM2#
sub62613-10031
sub62613-10011
main62613-10011-04i198005-198208
FULL TRIM,BLUE,BLUE,TRIM8#
sub62613-10031
sub62613-10011
main62613-10011-06i198005-198208
FULL TRIM,L-BROWN,BROWN,TRIM4#
sub62613-10031
sub62613-10011
main62613-10020-01i197802-198005
SEMI TRIM,BLACK,BLACK,TRIM2#
main62613-10020-04i197802-198005
SEMI TRIM,BLUE,BLUE,TRIM8#
main62613-10020-06i197802-198005
SEMI TRIM,L-BROWN,BROWN,TRIM4#
main62613-10021-01i198005-198208
SEMI TRIM,BLACK,BLACK,TRIM2#
main62613-10021-02i198208-198409
SEMI TRIM,DARK WINE,RED/MAROON,TRIM3#
main62613-10021-03i198208-198409
SEMI TRIM,GRAY,GRAY,TRIM1#
main62613-10021-04i198005-198208
SEMI TRIM,BLUE,BLUE,TRIM8#
main62613-10021-06i198005-198208
SEMI TRIM,L-BROWN,BROWN,TRIM4#
main62613-10021-16i198208-198409
SEMI TRIM,BROWN,BROWN,TRIM4#
main62613-10030-01i197802-198005
FULL TRIM,BLACK,BLACK,TRIM2#
main62613-10030-04i197802-198005
FULL TRIM,BLUE,BLUE,TRIM8#
main62613-10030-06i197802-198005
FULL TRIM,L-BROWN,BROWN,TRIM4#
main62613-10031-01i198005-198208
FULL TRIM,BLACK,BLACK,TRIM2#
sub62610-10010
sub62613-10031
main62613-10031-04i198005-198208
FULL TRIM,BLUE,BLUE,TRIM8#
sub62610-10010
sub62613-10031
main62613-10031-06i198005-198208
FULL TRIM,L-BROWN,BROWN,TRIM4#
sub62610-10010
sub62613-10031
main62613-96440-01i197810-197812
BLACK,BLACK,TRIM2#
main62613-96440-03i198208-198409
GRAY,GRAY,TRIM1#
main62613-96440-04i197810-197812
BLUE,BLUE,TRIM8#
main62613-96440-06i197810-197812
L-BROWN,BROWN,TRIM4#
main62613-96440-11i197812-198208
BLACK,BLACK,TRIM2#
main62613-96440-14i197812-198005
BLUE,BLUE,TRIM8#
main62613-96440-16i197812-198005
L-BROWN,BROWN,TRIM4#
main62613-96440-26i198005-198208
L-BROWN,BROWN,TRIM4#
main62613-96440-36i198208-198409
BROWN,BROWN,TRIM4#
62532COVER, WHEEL HOUSE TRIM, LH
main62614-10010-01i197802-198005
FULL TRIM,BLACK,BLACK,TRIM2#
main62614-10010-04i197802-198005
FULL TRIM,BLUE,BLUE,TRIM8#
main62614-10010-06i197802-198005
FULL TRIM,L-BROWN,BROWN,TRIM4#
main62614-10011-01i198005-198208
FULL TRIM,BLACK,BLACK,TRIM2#
sub62614-10031
sub62614-10011
main62614-10011-04i198005-198208
FULL TRIM,BLUE,BLUE,TRIM8#
sub62614-10031
sub62614-10011
main62614-10011-06i198005-198208
FULL TRIM,L-BROWN,BROWN,TRIM4#
sub62614-10031
sub62614-10011
main62614-10020-01i197802-198005
SEMI TRIM,BLACK,BLACK,TRIM2#
main62614-10020-04i197802-198005
SEMI TRIM,BLUE,BLUE,TRIM8#
main62614-10020-06i197802-198005
SEMI TRIM,L-BROWN,BROWN,TRIM4#
main62614-10021-01i198005-198208
SEMI TRIM,BLACK,BLACK,TRIM2#
main62614-10021-02i198208-198409
SEMI TRIM,DARK WINE,RED/MAROON,TRIM3#
main62614-10021-03i198208-198409
SEMI TRIM,GRAY,GRAY,TRIM1#
main62614-10021-04i198005-198208
SEMI TRIM,BLUE,BLUE,TRIM8#
main62614-10021-06i198005-198208
SEMI TRIM,L-BROWN,BROWN,TRIM4#
main62614-10021-16i198208-198409
SEMI TRIM,BROWN,BROWN,TRIM4#
main62614-10030-01i197802-198005
FULL TRIM,BLACK,BLACK,TRIM2#
main62614-10030-04i197802-198005
FULL TRIM,BLUE,BLUE,TRIM8#
main62614-10030-06i197802-198005
FULL TRIM,L-BROWN,BROWN,TRIM4#
main62614-10031-01i198005-198208
FULL TRIM,BLACK,BLACK,TRIM2#
sub62614-10031
main62614-10031-02i198208-198409
FULL TRIM,DARK WINE,RED/MAROON,TRIM3#
sub62614-10031
main62614-10031-03i198208-198409
FULL TRIM,GRAY,GRAY,TRIM1#
sub62614-10031
main62614-10031-04i198005-198208
FULL TRIM,BLUE,BLUE,TRIM8#
sub62614-10031
main62614-10031-06i198005-198208
FULL TRIM,L-BROWN,BROWN,TRIM4#
sub62614-10031
main62614-10031-16i198208-198409
FULL TRIM,BROWN,BROWN,TRIM4#
sub62614-10031
main62614-96440-01i197810-197812
BLACK,BLACK,TRIM2#
main62614-96440-03i198208-198409
GRAY,GRAY,TRIM1#
main62614-96440-04i197810-197812
BLUE,BLUE,TRIM8#
main62614-96440-06i197810-197812
L-BROWN,BROWN,TRIM4#
main62614-96440-11i197812-198208
BLACK,BLACK,TRIM2#
main62614-96440-14i197812-198005
BLUE,BLUE,TRIM8#
main62614-96440-16i197812-198005
L-BROWN,BROWN,TRIM4#
main62614-96440-26i198005-198208
L-BROWN,BROWN,TRIM4#
main62614-96440-36i198208-198409
BROWN,BROWN,TRIM4#
62581RETAINER, QUARTER TRIM
main62581-14010-01i197802-198208
BLACK,BLACK,TRIM2#
sub62581-14010
main62581-14010-02i198208-198409
DARK WINE,RED/MAROON,TRIM3#
sub62581-14010
main62581-14010-15i198208-198409
BEIGE,BEIGE,TRIM4#
sub62581-14010
main62581-14010-24i197802-198005
BLUE,BLUE,TRIM8#
sub62581-14010
main62581-14010-33i198208-198409
LIGHT GRAY,GRAY,TRIM1#
sub62581-14010
main62581-14010-34i198005-198208
BLUE,BLUE,TRIM8#
sub62581-14010
main62581-14010-36i197802-198005
L-BROWN,BROWN,TRIM4#
sub62581-14010
main62581-14010-46i198005-198208
L-BROWN,BROWN,TRIM4#
sub62581-14010
6404
7403
9018304046
main90183-04046
9046711008
main90467-11008
9354015014
main93540-15014
9354055014
main93540-55014

20 parts on this diagram · 3 diagrams in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
