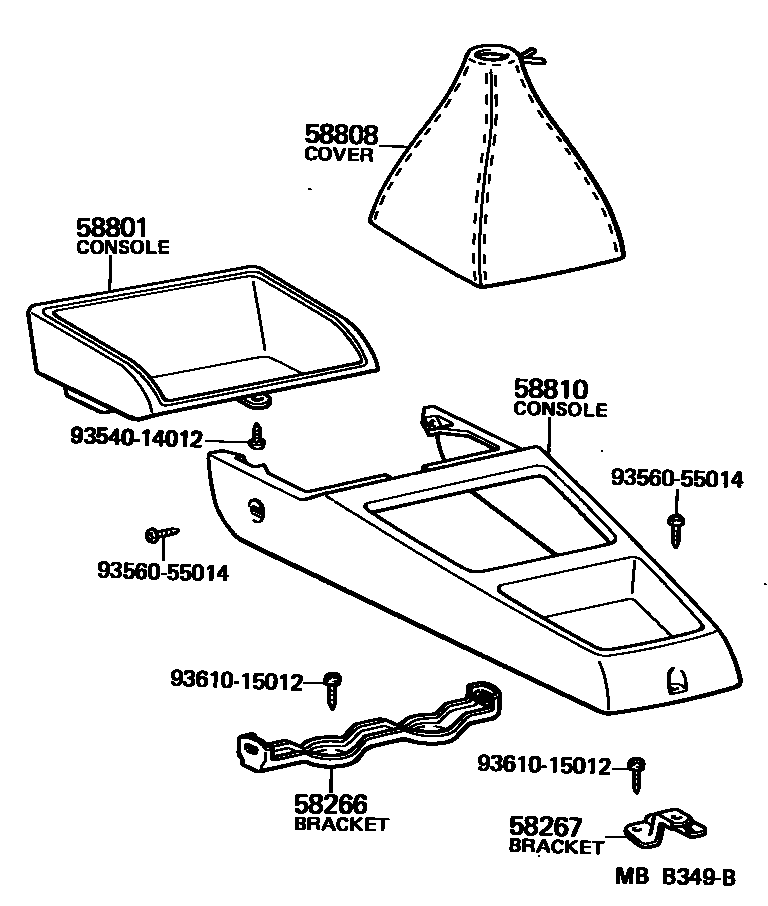

CONSOLE BOX & BRACKET
58266BRACKET, CONSOLE BOX SUPPORT, FRONT
58267BRACKET, CONSOLE BOX SUPPORT, CENTER
58801CONSOLE SUB-ASSY, UPPER
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
58810CONSOLE ASSY
DARK WINE,RED/MAROON
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY
GRAY,GRAY,TRIM1#
BROWN,BROWN
BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
9354014012
main93540-14012
9356055014
main93560-55014
9361015012
main93610-15012
8 parts on this diagram · 2 diagrams in section
