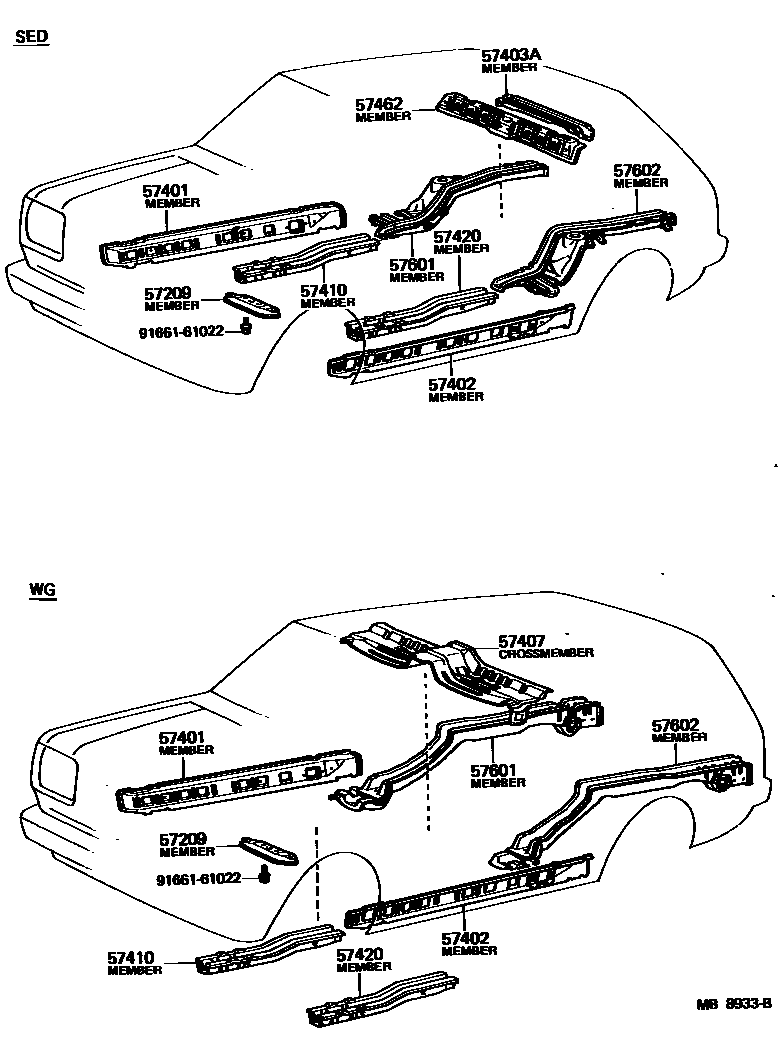

FLOOR SIDE MEMBER
57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1
57462MEMBER, CENTER FLOOR CROSS, NO.2
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
9166161022
main91661-61022
11 parts on this diagram · 2 diagrams in section
