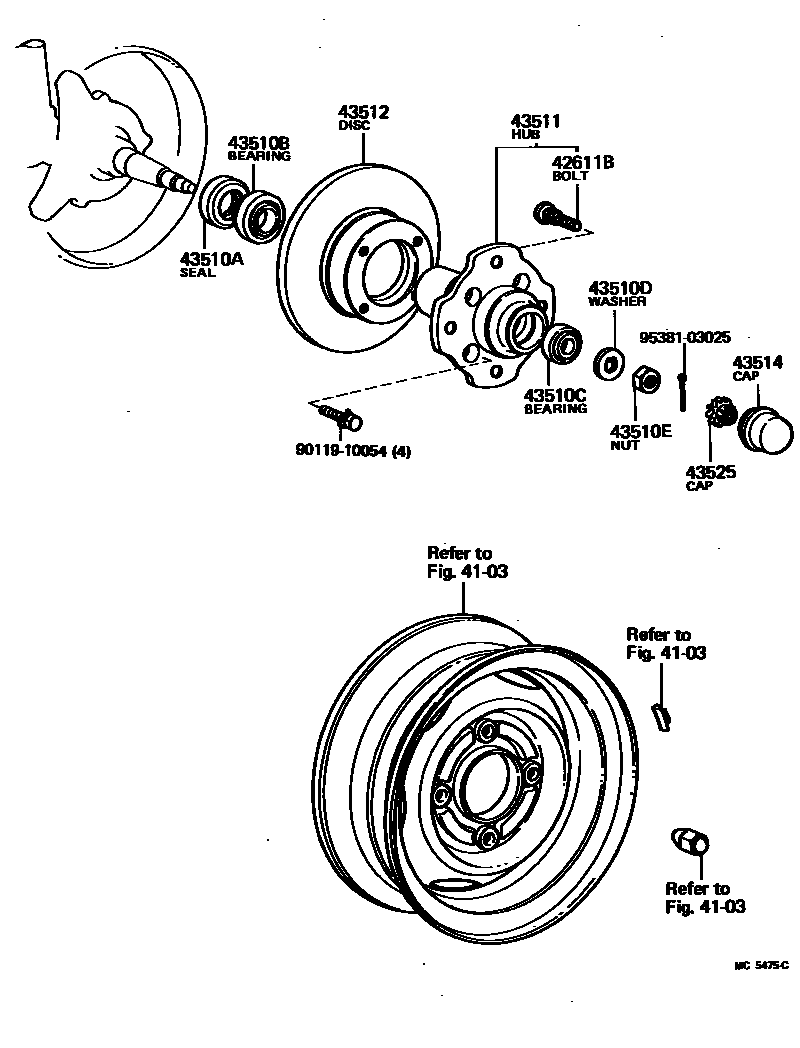

FRONT AXLE HUB

4103

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02036iKP6#197802-198306

sub90942-02048

main90942-02048iKP6#198306-198409

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-40108iKP6#197802-198409

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-26027iKP6#197802-198409

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017iKP6#197802-198409

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010iKP6#197802-198409

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137iKP6#197802-198409

sub94125-41600

43511HUB, FRONT AXLE

main43502-10010iKP6#197802-198409

43512DISC, FRONT

main43512-10040iKP6#..GEN197802-198409

main43512-10050iKP6#..EUR197802-198409

43514CAP, FRONT HUB GREASE

main43514-12010iKP6#197802-198409

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011iKP6#197802-198409

9011910054

main90119-10054

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section
