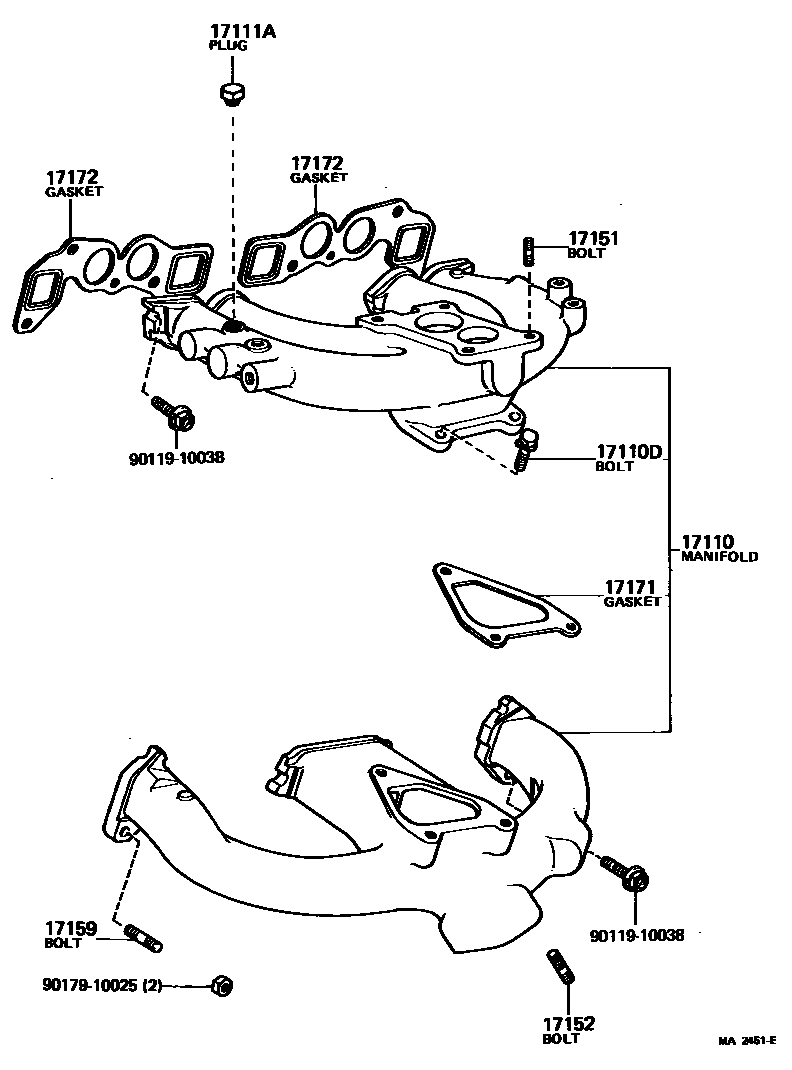

MANIFOLD

0001 1 0003 1 0004 1

17110MANIFOLD ASSY

main17110-13071i4KC..KP61198108-198409

main17110-13100i4K..KP61..GEN;4K..KP61..MTM..EUG198108-198409

main17110-13110i4K..KP61..3FC..EUG198108-198409

main17110-24043i3K#..KP62197807-198208

main17110-24071i2K..KP60197802-197804

main17110-24072i2K..KP60197804-198409

17110DBOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)

main91611-40820×3i2K,3KC..KP6#197802-197809

main91611-60822×3i2K,3K#,4K#..KP6#197809-198409

17111APLUG, NO.1

main90345-51005×3i2K,3KC..KP6#197802-197809

main90345-51025×2i2K,4KC..KP6#; 4K..KP61..GEN;4K..KP61..3FC..EUG198208-198409

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main90116-08010×4i2K,3K#,4K#..KP6#197802-198409

L=39,S=13&13

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017×3i2K,3K#,4K#..KP6#197802-198409

L=41,S=14&21

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main92122-41028×2i2K,3K#,4K#..KP6#197802-198409

17171GASKET, INTAKE TO EXHAUST MANIFOLD

main17171-13040i2K,4K#..KP6#198308-198409

main17171-24010i2K,3K#,4K#..KP6#197802-198308

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-13020×2i2K,3KH,4K#..KP6#198108-198308

main17172-13021×2i2K,4K#..KP6#198308-198409

main17172-24011×2i2K,3K#..KP6#197802-198108

9011910038

main90119-10038

9017910025

main90179-10025

10 parts on this diagram · 3 diagrams in section
