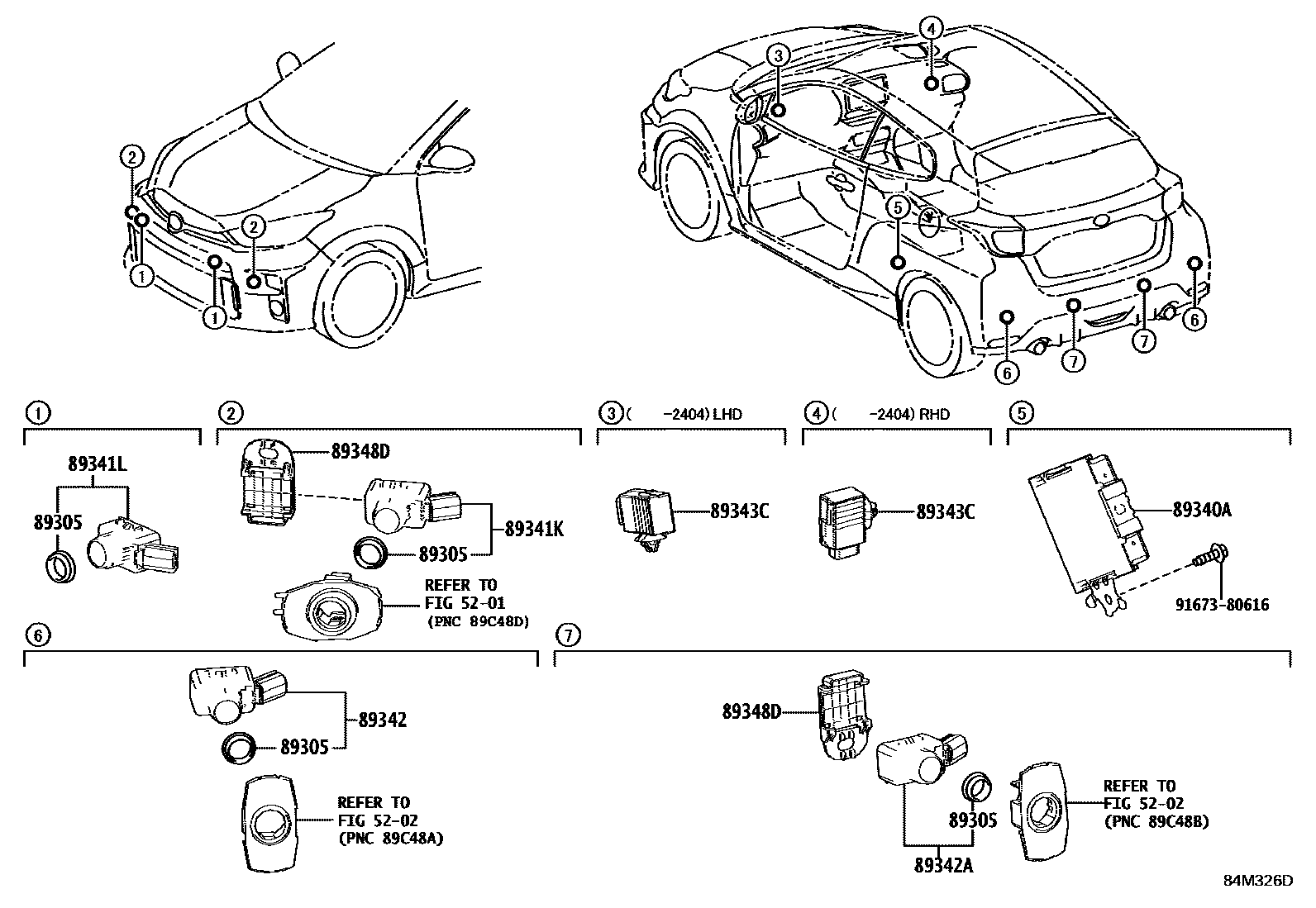

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
89305CUSHION SET, ULTRASONIC SENSOR
CLEARANCE & BACK SONAR-WITH; CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
89340ACOMPUTER ASSY, CLEARANCE WARNING
BLIND SPOT MONITOR-WITH,*614
main89340-52410iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..LHD..6F..EUR; GXPA16..LHD..8FC; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
BURNEI SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH; BURNEI SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE); CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); INDONESIA SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH; INDONESIA SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE); MALAYSIA SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH; MALAYSIA SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE); MEXICO SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH; MEXICO SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE); NEW CALEDONIA SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH; NEW CALEDONIA SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE); PHILIPPINES SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH; PHILIPPINES SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKINGSUPPORT BRAKE); SINGAPORE SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH; SINGAPORE SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE); TAIWAN SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH; TAIWAN SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE); THAILAND SPEC&AUDIO-FOR NAVI READY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
89341KSENSOR, ULTRASONIC, FRONT CORNER
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),GRAY METALLIC MATT,1M8; CLEARANCE & BACK SONAR-WITH,GRAY METALLIC MATT,1M8
main89341-K0060-A0×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
main89341-K0060-A4×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),PLATINUM WHITE PEARL MC.,089 ,9BF; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089 ,9BF; KALLE ROVANPERA EDITION *(K)&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),PLATINUM WHITE PEARL MC.,9BF
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST),PRECIOUS BLACK,219
main89341-K0060-D4×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),EMOTIONAL RED 2,3U5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),EMOTIONAL RED 2,3U5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),EMOTIONAL RED 2,3U5; CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5; KALLE ROVANPERA EDITION *(K)&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),EMOTIONAL RED 2,9BF
main89341-K0060-P8×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),PRECIOUS METAL,1L5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PRECIOUS METAL,1L5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS METAL,1L5; CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5
KALLE ROVANPERA EDITION *(K)&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),DK.GRAY,9BF
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-50080-C0×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),DUMMY-MAT BLACK; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),DUMMY-MAT BLACK; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),DUMMY-MAT BLACK; CLEARANCE & BACK SONAR-WITH,DUMMY-MAT BLACK; KALLE ROVANPERA EDITION *(K)&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),DUMMY-MAT BLACK
BLIND SPOT MONITOR-WITH,BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),GRAY METALLIC MATT,1M8; CLEARANCE & BACK SONAR-WITH,GRAY METALLIC MATT,1M8
main89341-K0060-A0×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
main89341-K0060-A4×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),PLATINUM WHITE PEARL MC.,089 ,9BF; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089 ,9BF; KALLE ROVANPERA EDITION *(K)&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),PLATINUM WHITE PEARL MC.,9BF
main89341-K0060-C6×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),PRECIOUS BLACK,219; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PRECIOUS BLACK,219; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS BLACK,219; CLEARANCE & BACK SONAR-WITH,PRECIOUS BLACK,219
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),EMOTIONAL RED 2,3U5; CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5; KALLE ROVANPERA EDITION *(K)&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),EMOTIONAL RED 2,9BF
main89341-K0060-P8×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),PRECIOUS METAL,1L5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PRECIOUS METAL,1L5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS METAL,1L5; CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5
KALLE ROVANPERA EDITION *(K)&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),DK.GRAY,9BF
89342ASENSOR, ULTRASONIC, REAR CENTER
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),GRAY METALLIC MATT,1M8; CLEARANCE & BACK SONAR-WITH,GRAY METALLIC MATT,1M8
main89341-K0060-A0×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
main89341-K0060-A4×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),PLATINUM WHITE PEARL MC.,089 ,9BF; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089 ,9BF; KALLE ROVANPERA EDITION *(K)&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),PLATINUM WHITE PEARL MC.,9BF
main89341-K0060-C6×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),PRECIOUS BLACK,219; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PRECIOUS BLACK,219; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS BLACK,219; CLEARANCE & BACK SONAR-WITH,PRECIOUS BLACK,219
main89341-K0060-D4×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),EMOTIONAL RED 2,3U5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),EMOTIONAL RED 2,3U5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),EMOTIONAL RED 2,3U5; CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5; KALLE ROVANPERA EDITION *(K)&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),EMOTIONAL RED 2,9BF
main89341-K0060-P8×2iGXPA16..6F..EUR; GXPA16..8FC..EUR; GXPA16..RHD..6F..EUR; GXPA16..RHD..8FC..EUR202404
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),PRECIOUS METAL,1L5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PRECIOUS METAL,1L5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS METAL,1L5; CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5
KALLE ROVANPERA EDITION *(K)&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),DK.GRAY,9BF
89343CBUZZER, CLEARANCE WARNING, NO.1
BLIND SPOT MONITOR-WITH
89348DCLIP, ULTRASONIC SENSOR
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
9167380616
main91673-80616
11 parts on this diagram · 1 diagram in section
