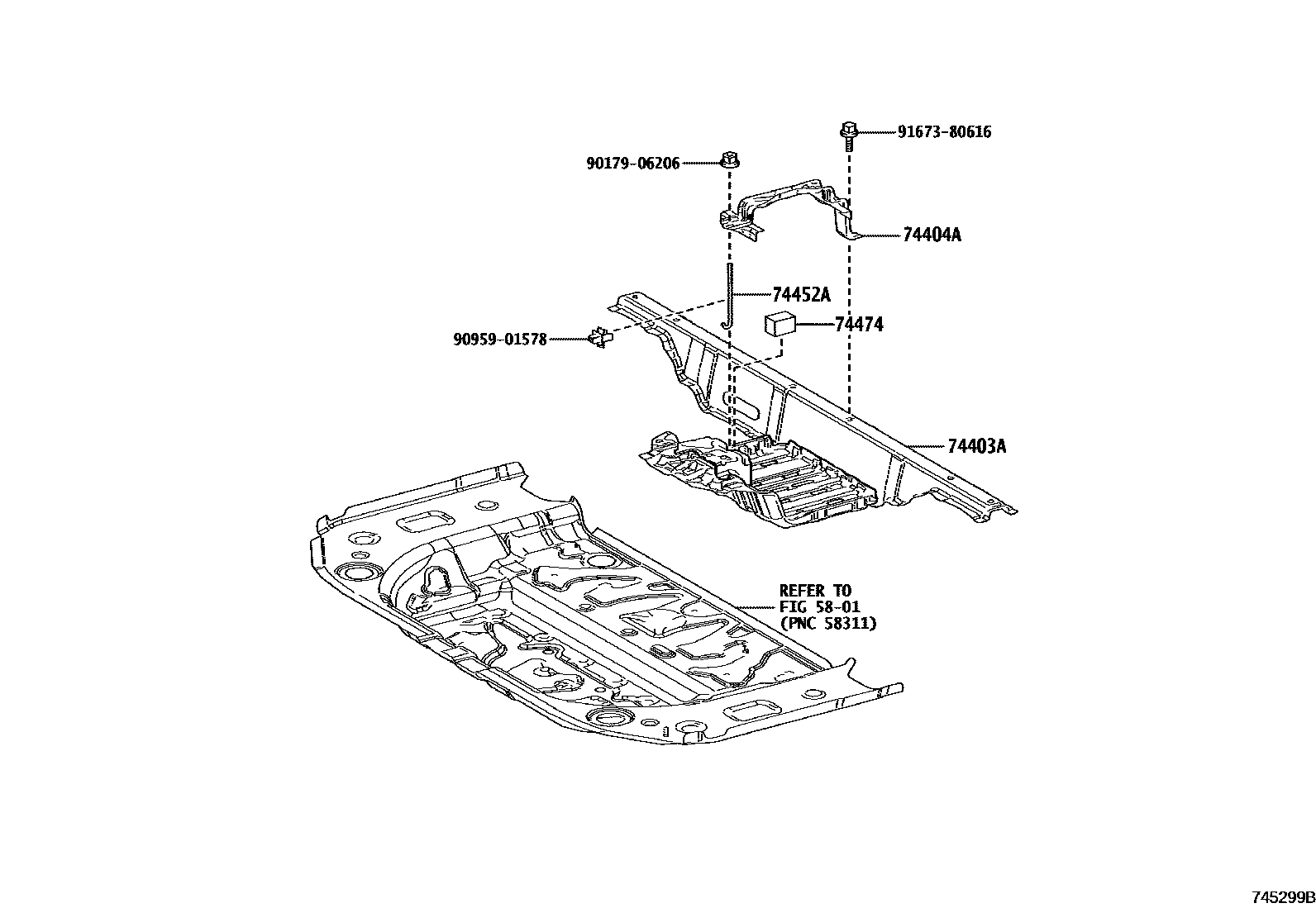

BATTERY CARRIER

0001 1 0002 1CHI OR BRAZIL SPEC

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

74403ACARRIER SUB-ASSY, BATTERY

main74403-12030iGXPA16..CHI202412

main74403-52060iGXPA16202008-202404

74404ACLAMP SUB-ASSY, BATTERY

main74404-12580iGXPA16..CHI202412

main74404-52160iGXPA16202008-202404

74452ABOLT, BATTERY CLAMP, NO.2

main74452-30010iGXPA16202008-202404

74474PAD, BATTERY

main52462-30130iGXPA16..ARL,EUR202404

9017906206

main90179-06206

9095901578

main90959-01578

9167380616

main91673-80616

8 parts on this diagram · 2 diagrams in section
