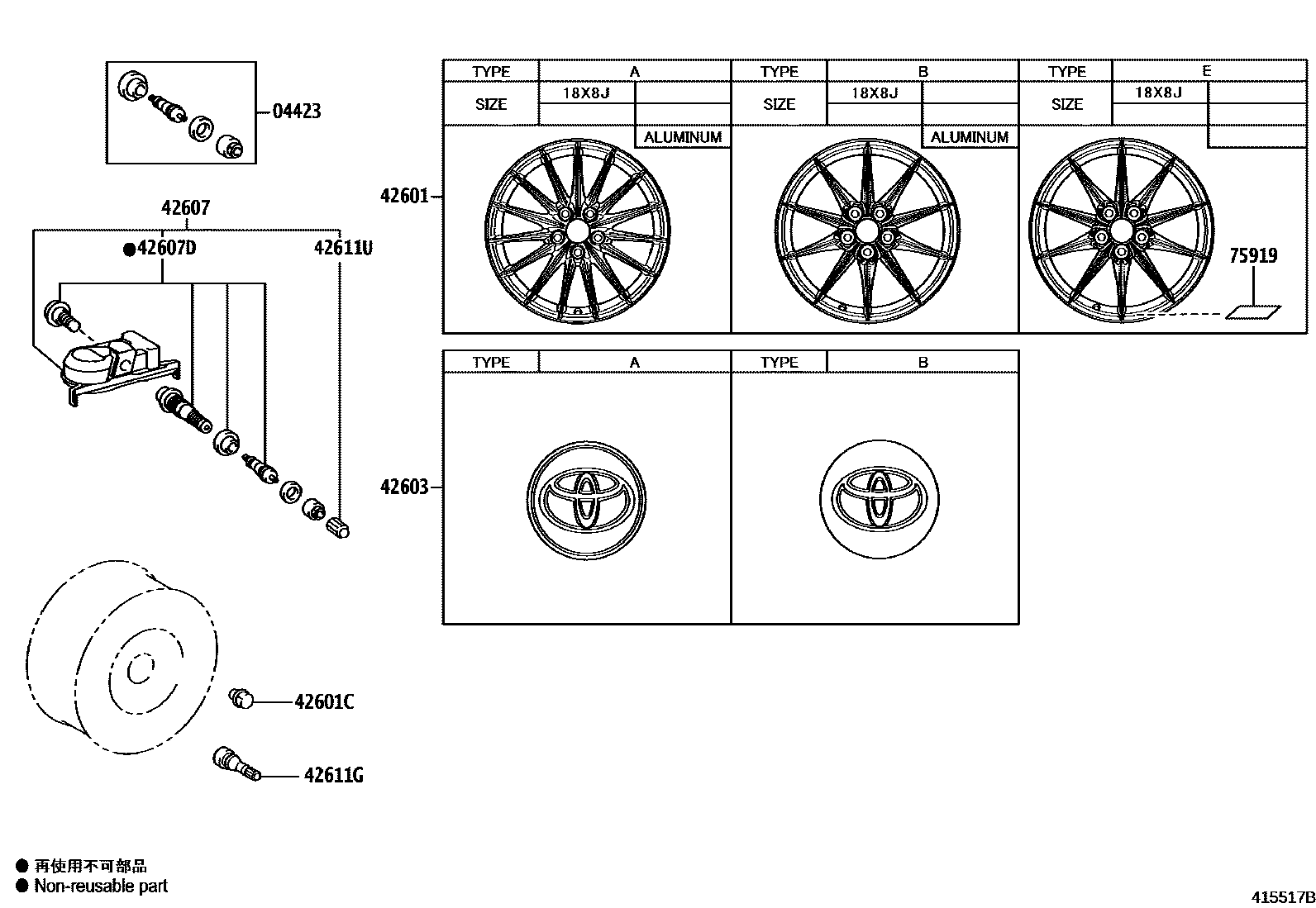

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060iGXPA16..EUR202008-202404

42601WHEEL, DISC

main42611-52C90iGXPA16202008-202404

18X8J, #,TYPE A:REFER ILLUST.

main42611-52D00iGXPA16..CHI202412

18X8J, #,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iGXPA16202008-202404

main90942-01115iGXPA16..CHI202412

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42130iGXPA16202008-202404

*ALU,TYPE A:REFER ILLUST.

main42603-48150iGXPA16..CHI202412

*ALU,TYPE B:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-12020iGXPA16..EUR202008-202505

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044iGXPA16..EUR202008-202505

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iGXPA16..ARL202008-202404

MEXICO SPEC

main90942-05009iGXPA16..ARL202008-202404

MEXICO SPEC&"HIGH PERFORMANCE"*(H)OR*(I)

42611UCAP, TIRE VALVE

main90942-05039iGXPA16..EUR202008-202505

75919STICKER, WHEEL DECOR

main75919-52010

9 parts on this diagram · 2 diagrams in section
