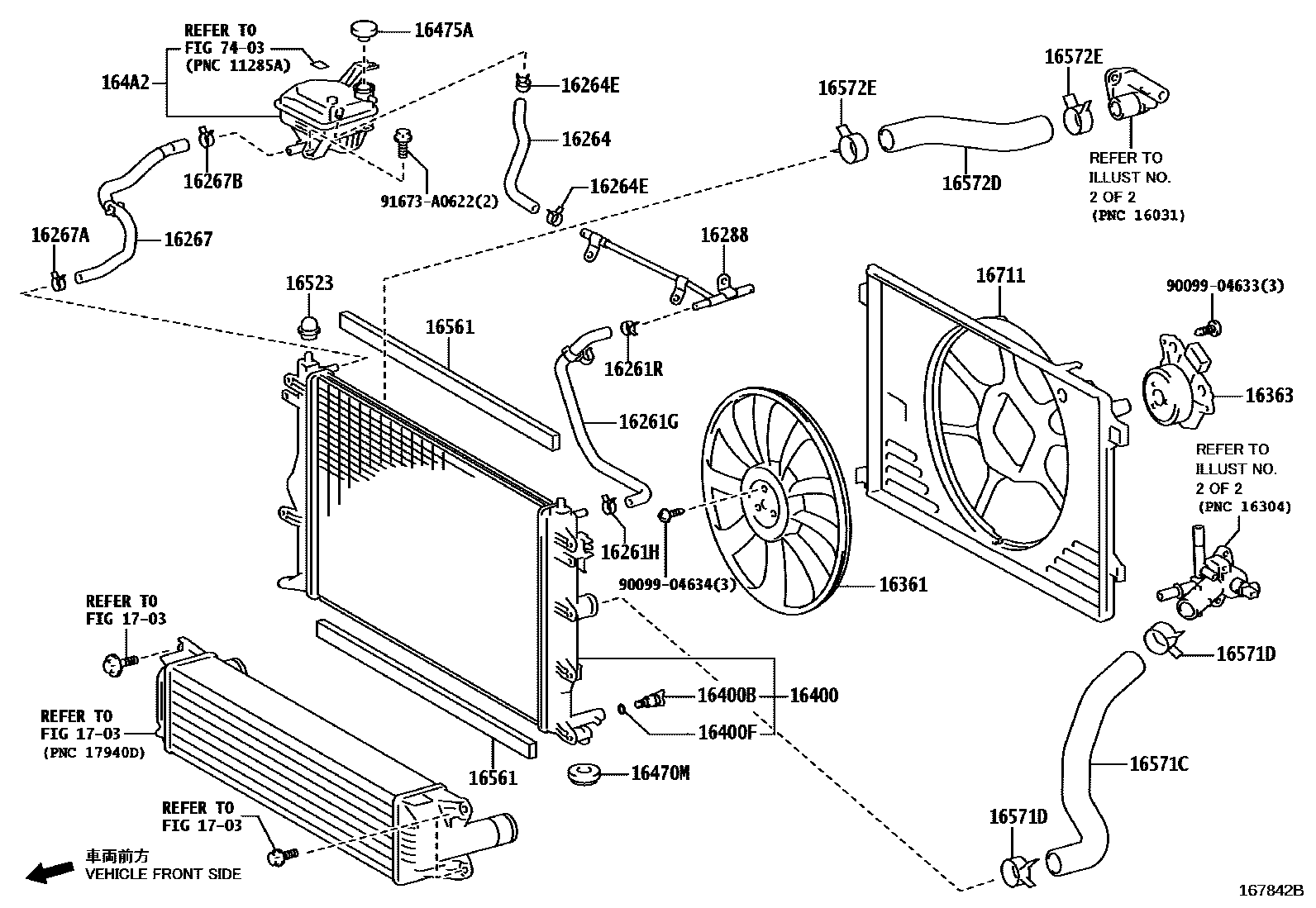

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16261RCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267BCLIP(FOR WATER BY-PASS HOSE)
16288PIPE, WATER BY-PASS, NO.4
16363MOTOR, COOLING FAN
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470MGROMMET
16475ACAP, RESERVE TANK
164A2TANK, RESERVE SEALED W/O CAP
16523CUSHION, SUB-RADIATOR SUPPORT
16561SEAL, RADIATOR TO SUPPORT, NO.1
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
SUB RADIATOR-WITH
16711SHROUD, FAN
1703
7403
9009904633
main90099-04633
9009904634
main90099-04634
91673A0622
main91673-A0622
30 parts on this diagram · 5 diagrams in section
