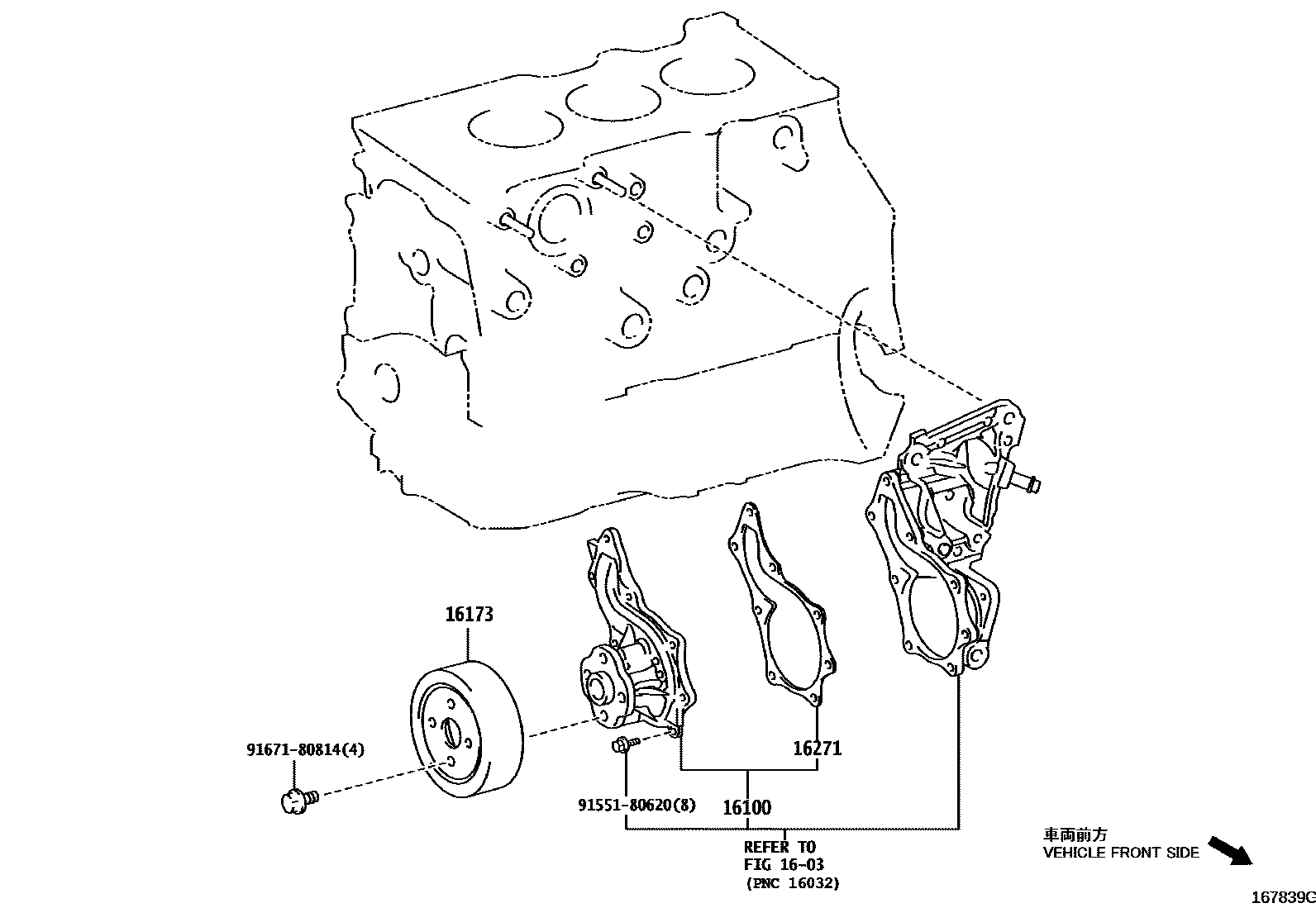

WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19385iG16EGTS..GXPA16202008-202404

16173PULLEY, WATER PUMP

main16173-18010iG16EGTS..GXPA16202008-202404

16271GASKET, WATER PUMP

main16271-18010iG16EGTS..GXPA16202008-202404

9155180620

main91551-80620

9167180814

main91671-80814

6 parts on this diagram · 1 diagram in section
