ENGINE OVERHAUL GASKET KIT

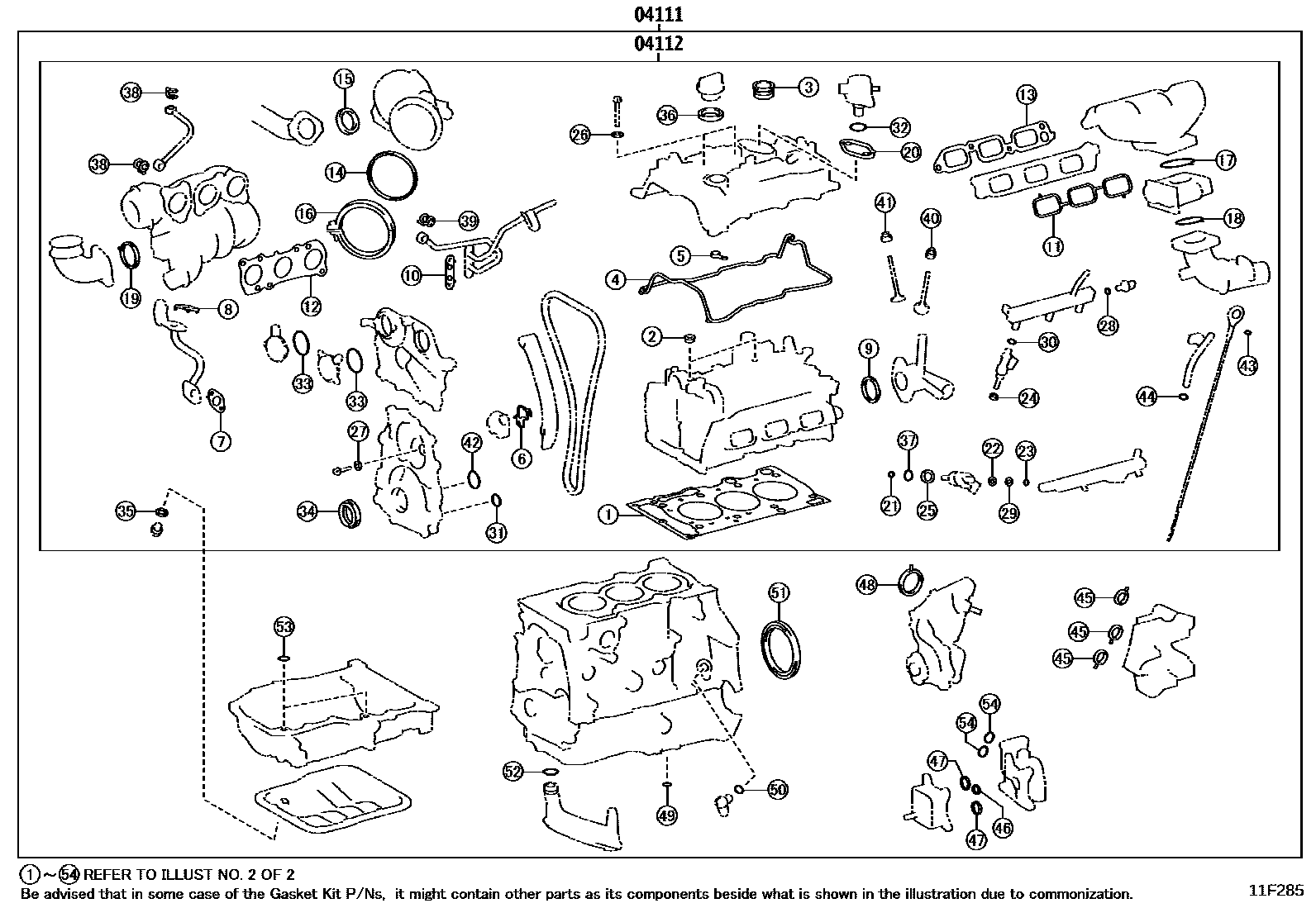

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-18010i202008-202012
sub04111-18011
main04111-18011i202012-202108
sub04111-18012
main04111-18012i202108-202404
main04111-18013i202404-202505
04112GASKET KIT, ENGINE VALVE GRIND
main04112-18010i202008-202012
sub04112-18011
main04112-18011i202012-202108
sub04112-18012
main04112-18012i202108-202404
main04112-18013i202404-202505

2 parts on this diagram · 2 diagrams in section
