WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1CLAMP & BRACKET 0008 1CONNECTOR 1/3 0009 1CONNECTOR 2/3 0010 1CONNECTOR 3/3

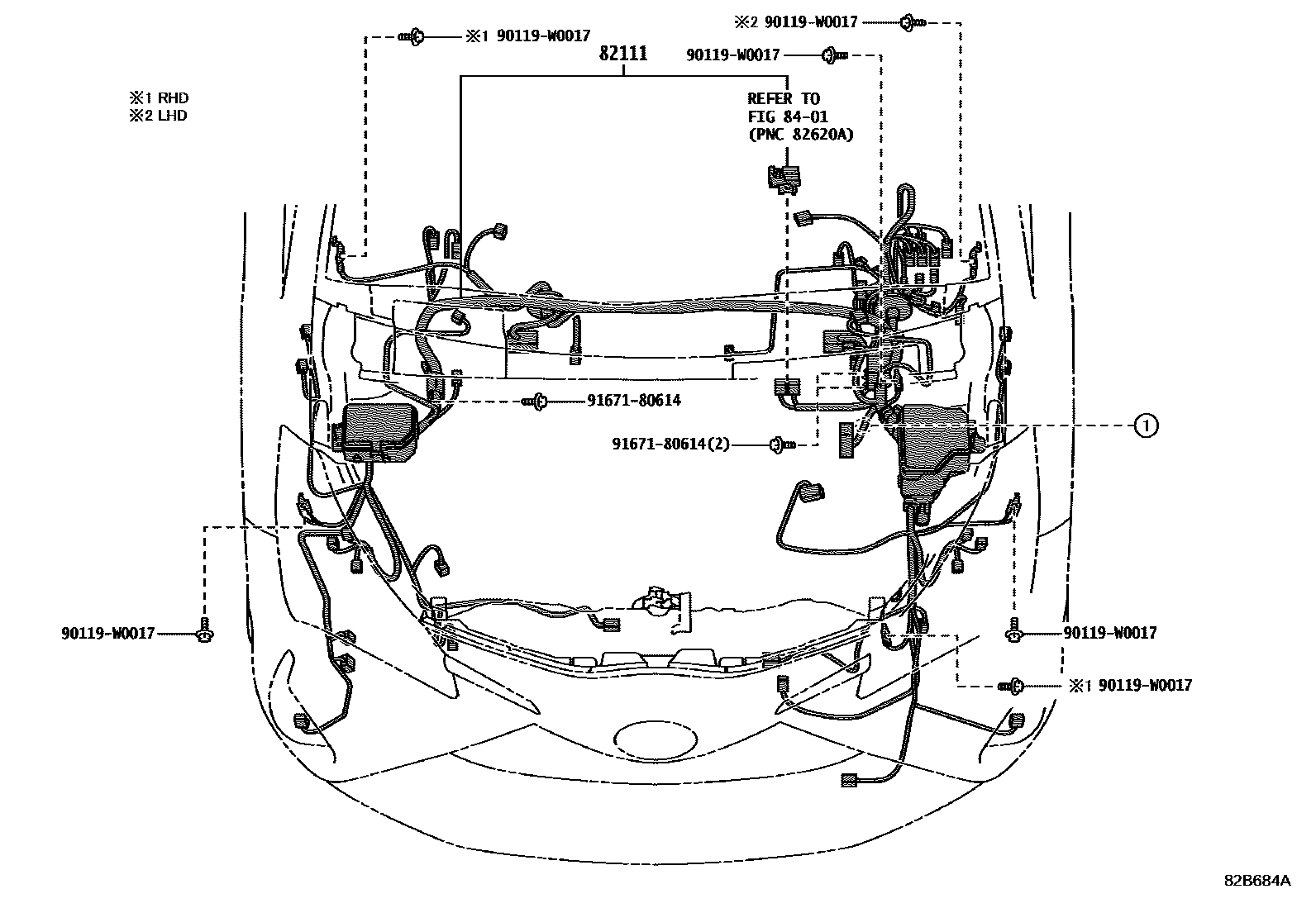

82111WIRE, ENGINE ROOM MAIN

main82111-0UX90iNSP131..LHD201711

main82111-0UY00iNSP131..RHD201711

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119W0017

main90119-W0017

9167180614

main91671-80614

4 parts on this diagram · 10 diagrams in section
