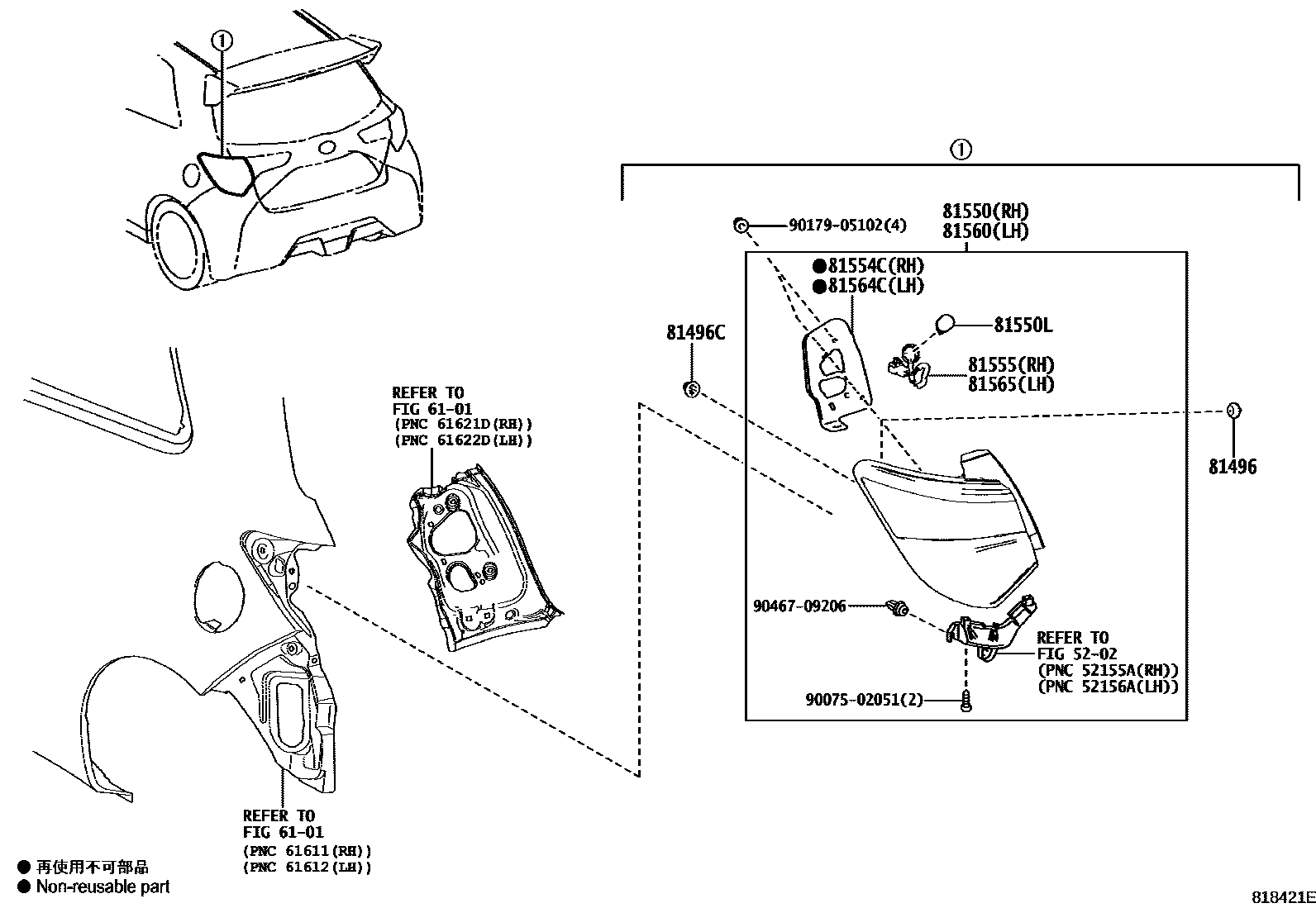

REAR COMBINATION LAMP

0001 1REAR COMBINATION LAMP 0002 1REAR LAMP

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iNSP131201711

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020×2iNSP131201711

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0DB70iNSP131201711

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iNSP131201711

12V 21W,AMBER

81554CPACKING, REAR COMBINATION LAMP BODY, RH

main81552-0DB60iNSP131201711

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0DB70iNSP131201711

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0DB70iNSP131201711

81564CPACKING, REAR COMBINATION LAMP BODY, LH

main81562-0DB60iNSP131201711

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0DB70iNSP131201711

9007502051

main90075-02051

9017905102

main90179-05102

9046709206

main90467-09206

14 parts on this diagram · 2 diagrams in section
