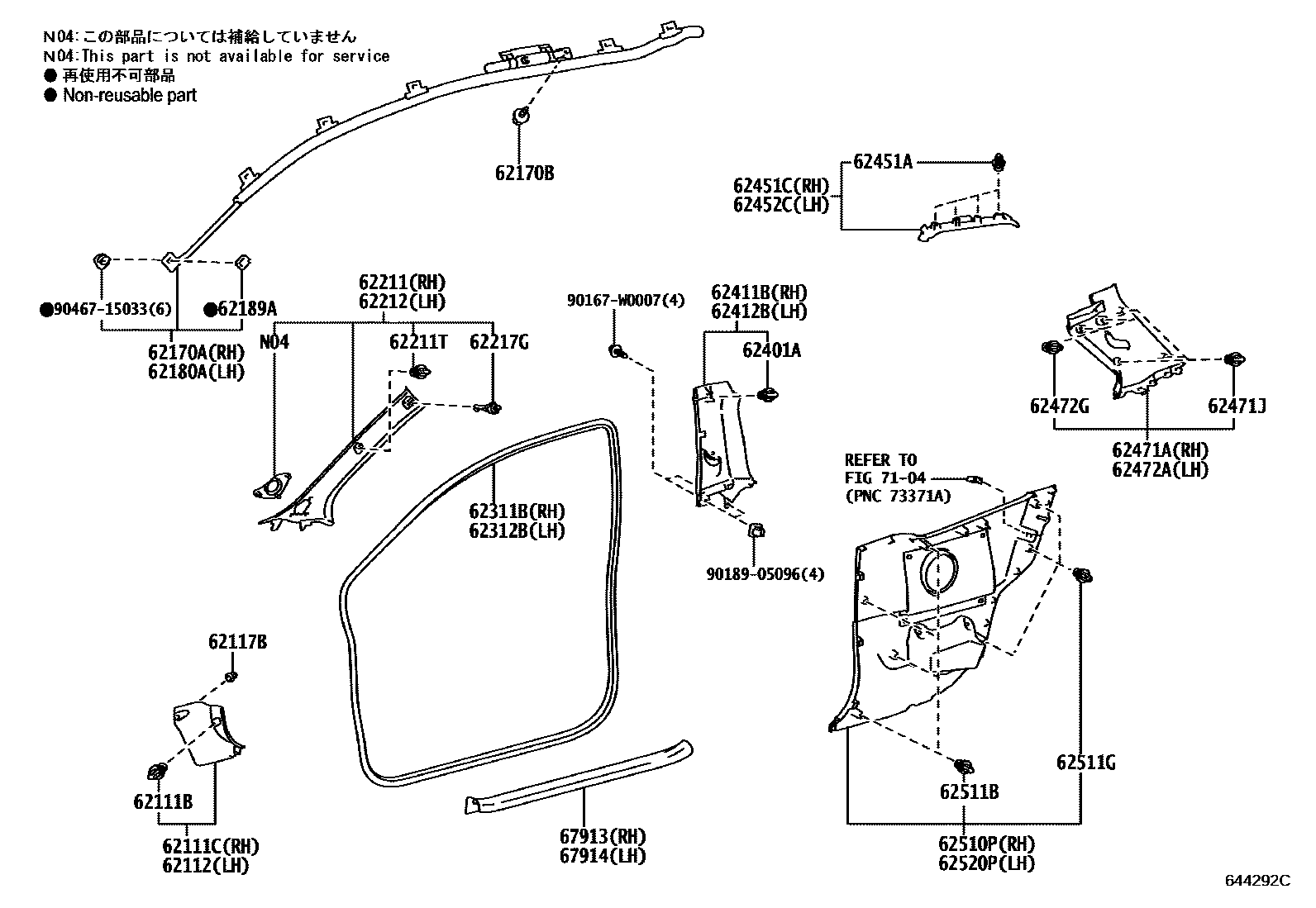

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iNSP131201711

62111CBOARD, COWL SIDE TRIM, RH

main62111-0D120-C1iNSP131201711

EU BLACK,TRIM2#

sub62111-0D120

62112BOARD, COWL SIDE TRIM, LH

main62112-0D120-C1iNSP131..LHD201711

EU BLACK,TRIM2#

sub62112-0D120

main62112-0D160-C1iNSP131..RHD201711

EU BLACK,TRIM2#

sub62112-0D160

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06193-C0iNSP131201711

BLACK

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0D120iNSP131201711

62170BBOLT, W/WASHER

main90119-06869iNSP131201711

(J)

main90119-W0078iNSP131201711

(L)

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0D120iNSP131201711

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-20010iNSP131201711

62211GARNISH, FRONT PILLAR, RH

main62211-0D411-C0iNSP131201711

EU BLACK,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iNSP131201711

62212GARNISH, FRONT PILLAR, LH

main62212-0D411-C0iNSP131201711

EU BLACK,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52100iNSP131201711

LH

main62217-52110iNSP131201711

RH

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0D410iNSP131201711

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0D390iNSP131201711

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167iNSP131201711

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-52190-C0iNSP131201711

EU BLACK,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-52180-C0iNSP131201711

EU BLACK,TRIM2#

62451ACLIP, SIDE GARNISH

main90467-10161iNSP131201711

62451CGARNISH, ROOF SIDE RAIL, REAR RH

main62451-0D020-C0iNSP131201711

EU BLACK,TRIM2#

62452CGARNISH, ROOF SIDE RAIL, REAR LH

main62452-0D020-C0iNSP131201711

EU BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0DB90-C0iNSP131201711

EU BLACK,TRIM2#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-A0033iNSP131201711

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0DB90-C0iNSP131201711

EU BLACK,TRIM2#

62472GCLIP (FOR ROOF SIDE GARNISH)

main63395-12150iNSP131201711

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-0D090-C1iNSP131201711

EU BLACK,TRIM2#

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-10161iNSP131201711

62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)

main63395-12150iNSP131201711

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-0D090-C1iNSP131201711

EU BLACK,TRIM2#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0D220-C1iNSP131201711

EU BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0D210-C1iNSP131201711

EU BLACK,TRIM2#

7104

90167W0007

main90167-W0007

9018905096

main90189-05096

9046715033

main90467-15033

34 parts on this diagram · 1 diagram in section
