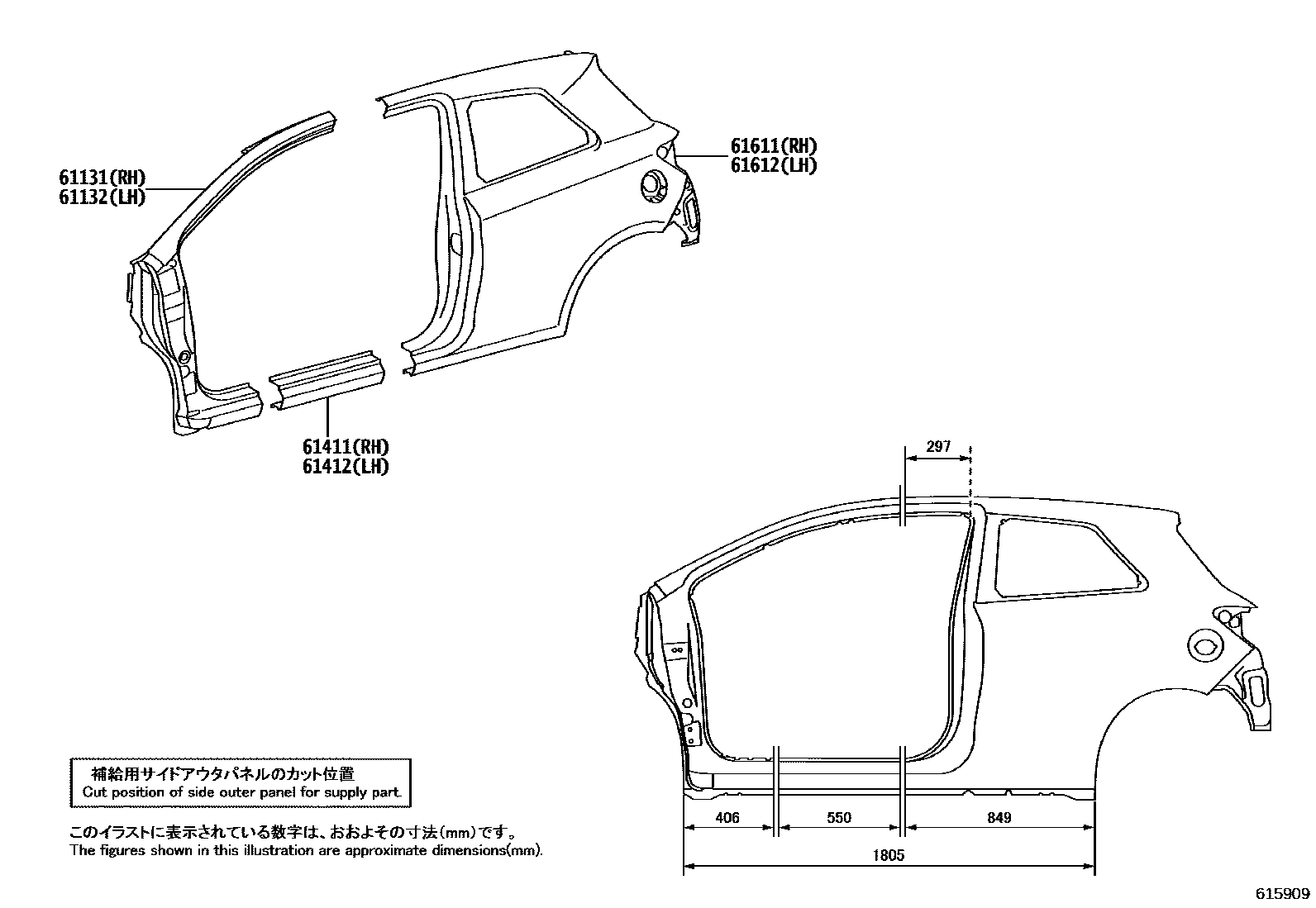

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0D140iNSP131201711

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-0D140iNSP131201711

61411PANEL, ROCKER, OUTER RH

main61411-0D160iNSP131201711

61412PANEL, ROCKER, OUTER LH

main61412-0D160iNSP131201711

61611PANEL, QUARTER, RH

main61601-0D200iNSP131201711

61612PANEL, QUARTER, LH

main61602-0D211iNSP131201711

6 parts on this diagram · 3 diagrams in section
