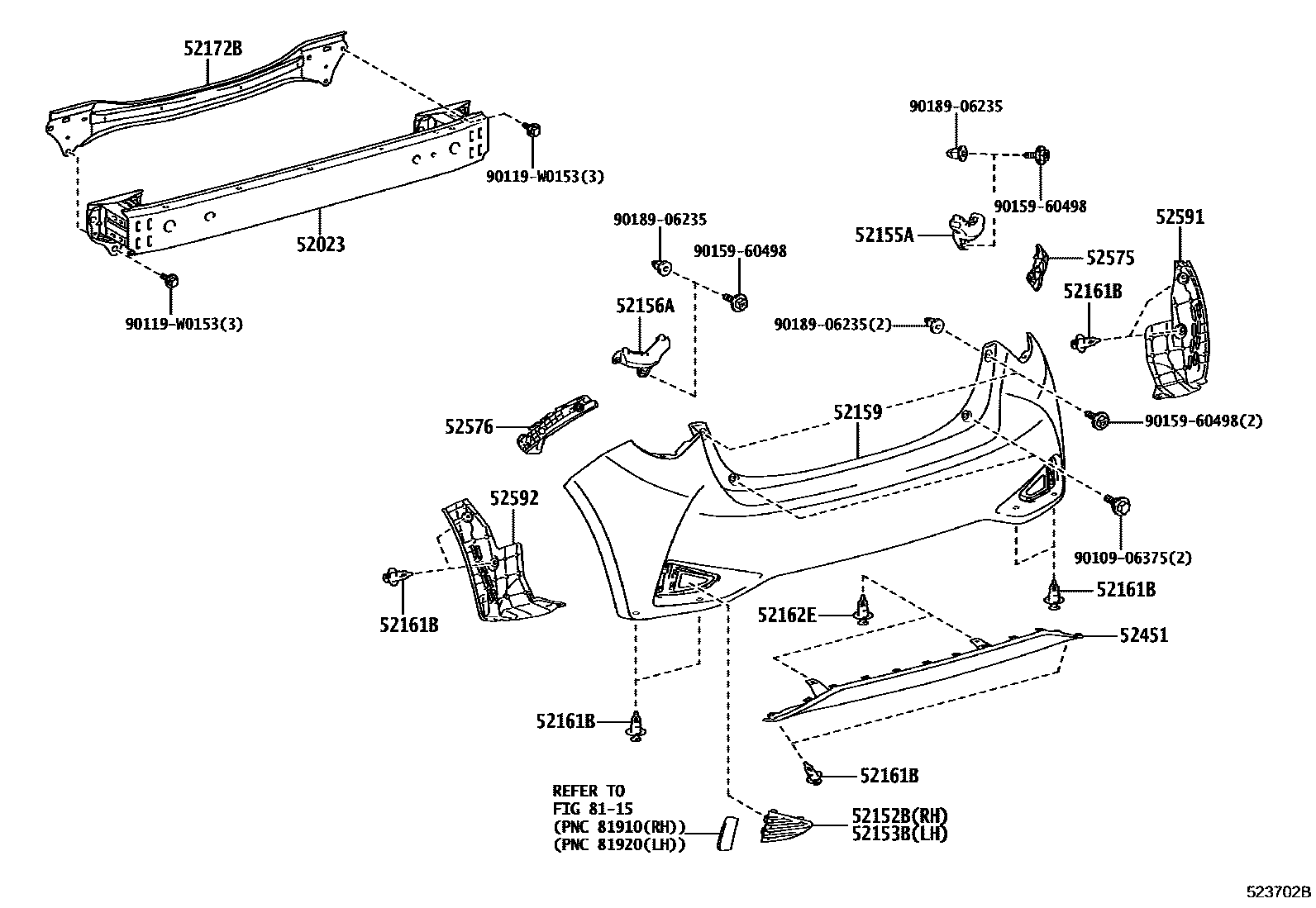

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0D080iNSP131201711-201804

52152BEXTENSION, REAR BUMPER, RH

main52681-0D010iNSP131201711

52153BEXTENSION, REAR BUMPER, LH

main52682-0D010iNSP131201711

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0D220iNSP131201711

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0D210iNSP131201711

52159COVER, REAR BUMPER

main52159-0U921iNSP131201711

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02030×10iNSP131201711

52162EPIECE, REAR BUMPER

main52161-02030×2iNSP131201711

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-52050iNSP131201711

52451GUARD, REAR BUMPER

main52453-0D090iNSP131201711

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D460iNSP131201711

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D450iNSP131201711

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D280iNSP131201711

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D280iNSP131201711

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9010906375

main90109-06375

90119W0153

main90119-W0153

9015960498

main90159-60498

9018906235

main90189-06235

19 parts on this diagram · 1 diagram in section
