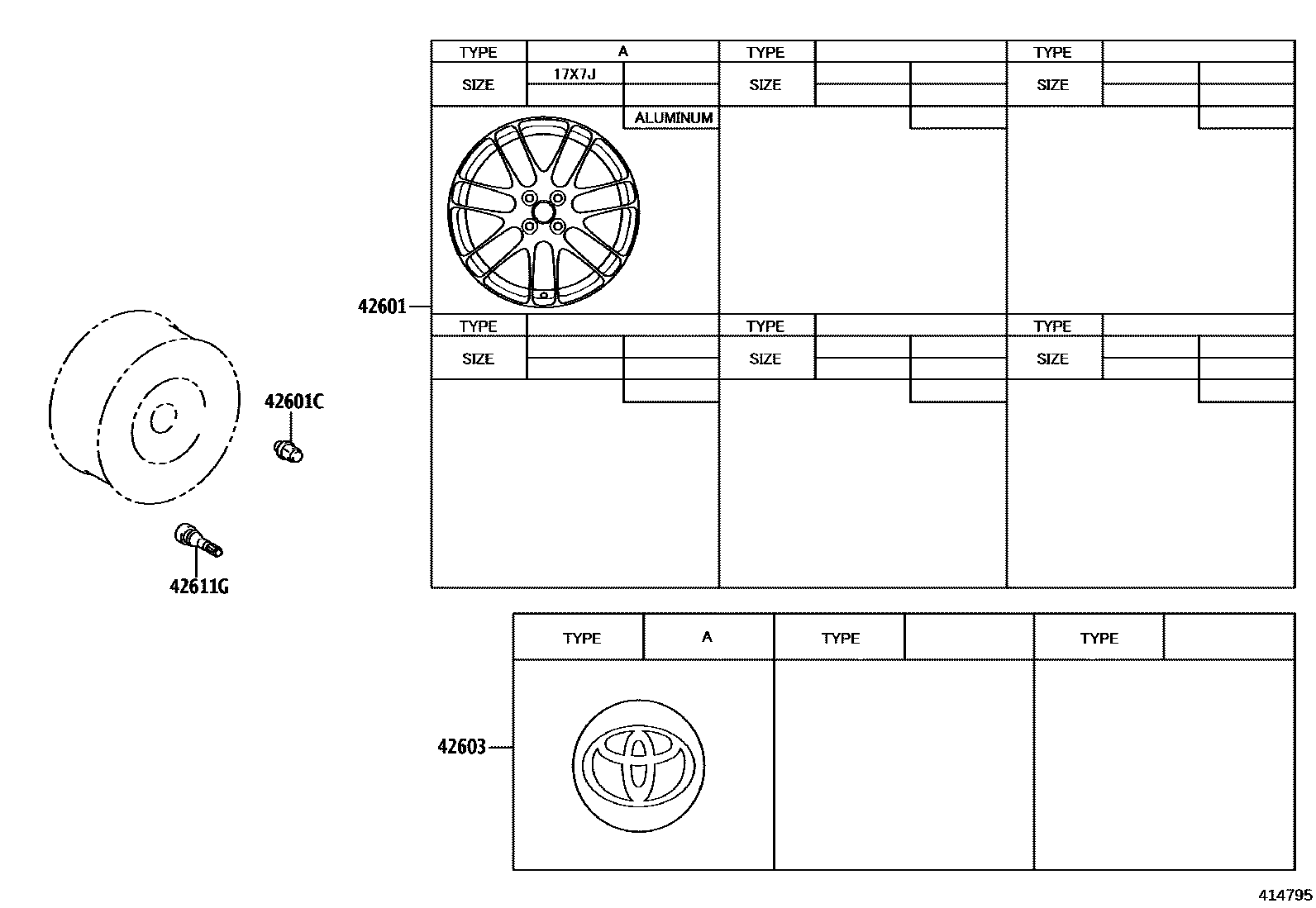

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

42601WHEEL, DISC

main42611-52B70×4iNSP131201711

17X7J, #,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01114×16iNSP131201711

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-52180×4iNSP131201711

*ALU,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iNSP131201711

4 parts on this diagram · 2 diagrams in section
