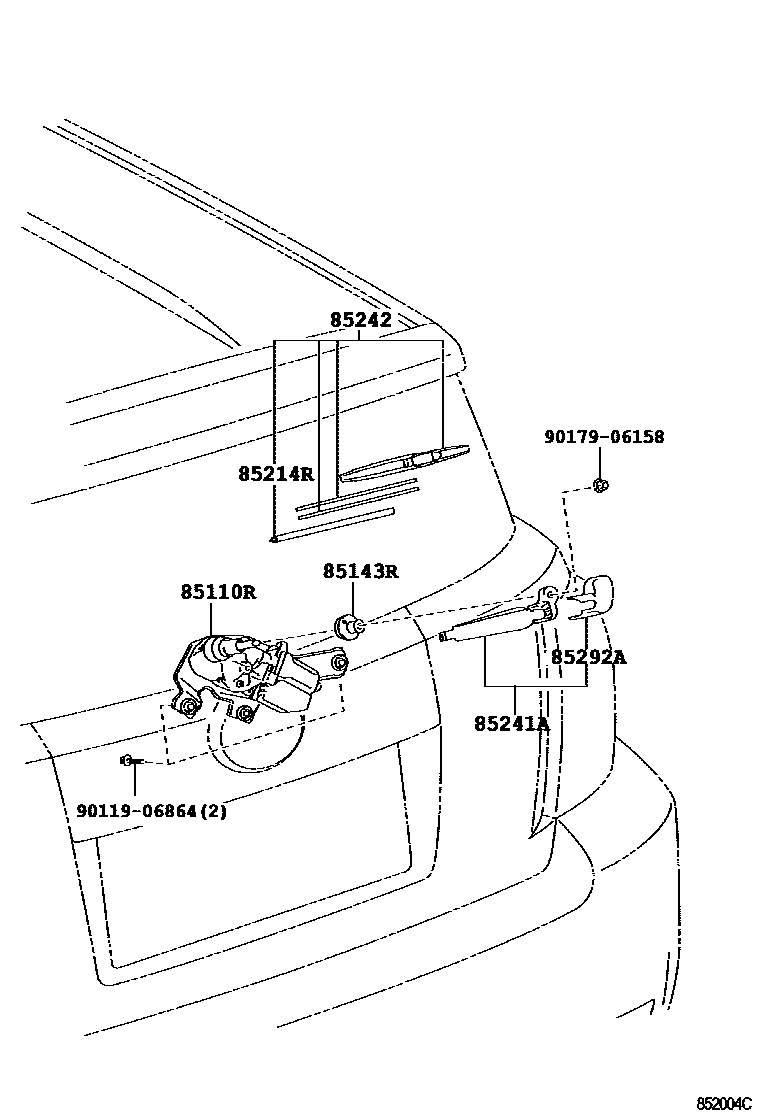

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-52150iNLP11#,NSP110200901

85143RGROMMET, REAR WIPER MOTOR

main85143-42040iNLP11#,NSP110200901

85214RRUBBER, REAR WIPER

main85214-52060iNLP11#,NSP110200901

85241AARM, REAR WIPER

main85241-52140iNLP11#,NSP110200901

85242BLADE, RR WIPER

main85242-52060iNLP11#,NSP110200901

85292ACAP, REAR WIPER ARM HEAD

main85292-52040iNLP11#,NSP110200901

9011906864

main90119-06864

9017906158

main90179-06158

8 parts on this diagram · 1 diagram in section
