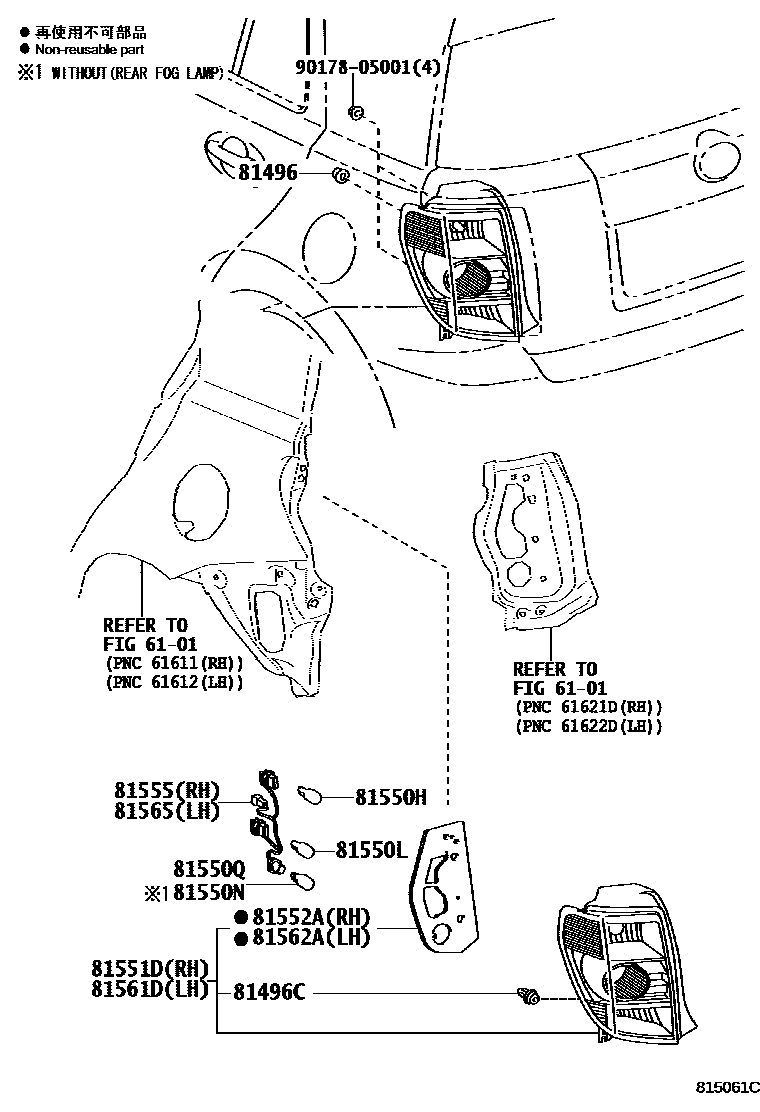

REAR COMBINATION LAMP

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iNLP11#,NSP110200901

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-12050iNLP11#,NSP110200901

81550HBULB, TAIL & STOP LAMP

main90981-13044iNLP11#,NSP110200901

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iNLP11#,NSP110200901

81550NBULB, BACK UP LAMP

main90981-11059iNLP11#,NSP110200901

REAR FOG LAMP-WITHOUT

main90981-11059iNLP11#,NSP110200901

12V 16W

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iNLP11#,NSP110..RHD200901-201405

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52670iNLP11#,NSP110..LHD200901

main81551-52680iNLP11#,NSP110..RHD200901-201405

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-52670iNLP11#,NSP110200901

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-52670iNLP11#,NSP110..LHD200901

main81555-52680iNLP11#,NSP110..RHD200901-201405

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52600iNLP11#,NSP110..RHD200901-201405

main81561-52720iNLP11#,NSP110..LHD200901

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-52600iNLP11#,NSP110200901

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-52670iNLP11#,NSP110..RHD200901-201405

main81555-52680iNLP11#,NSP110..LHD200901

9017805001

main90178-05001

14 parts on this diagram · 1 diagram in section
