REAR SEAT & SEAT TRACK

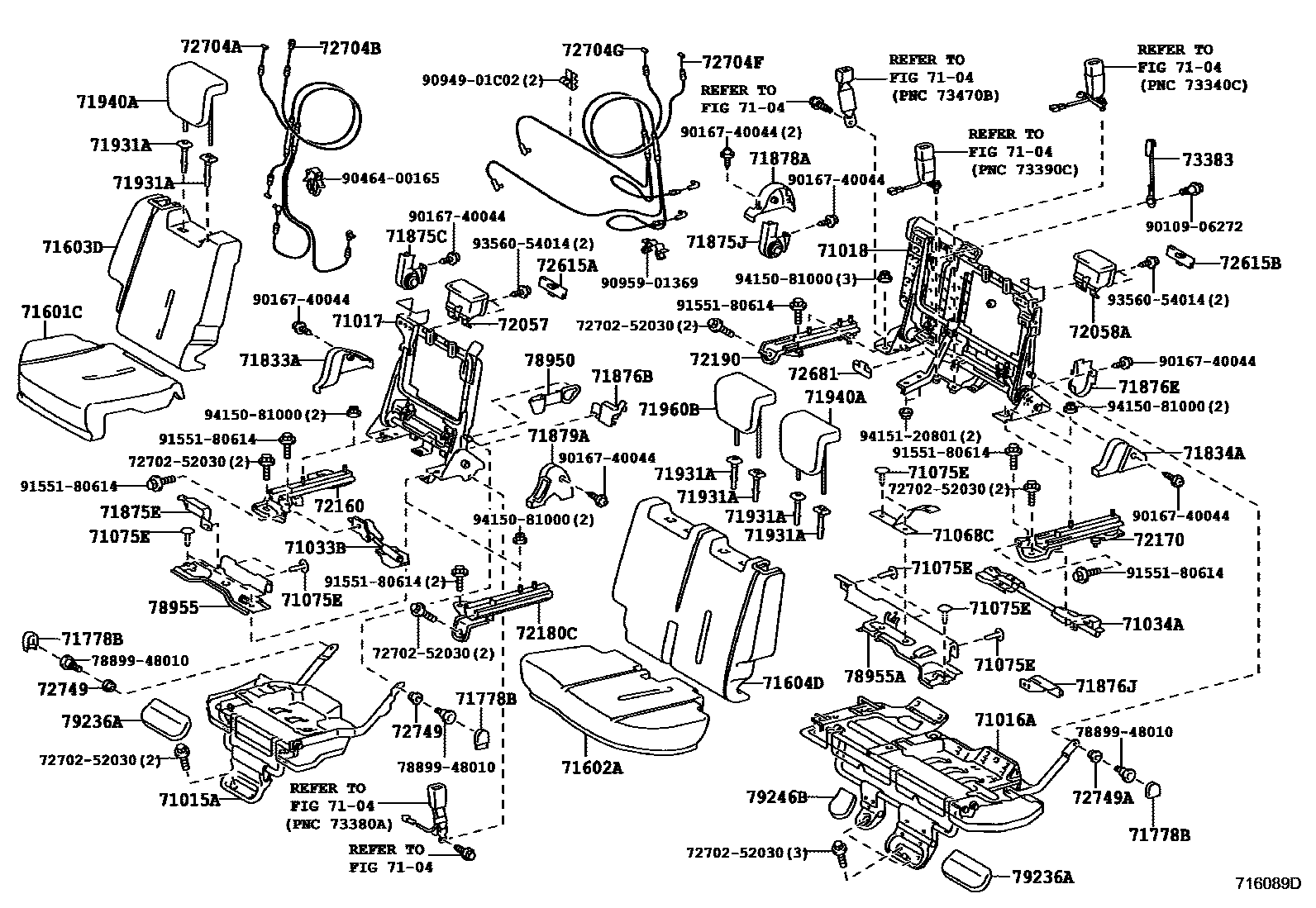

Parts diagram
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
main71015-52400i200902-201405
main71015-52410i200901
71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH
main71016-52060i200901
main71016-52140i200902-201405
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-52550i200901
main71017-52560i200902-201405
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-52360i200902-201405
main71018-52420i200901
71033BLEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 RH
main71033-52030i200901-200911
71034ALEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 LH
main71034-52010i200901
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71068CPLATE SUB-ASSY, REAR SEAT LEG, LH
main71068-52010i200901
71075ECLIP(FOR REAR SEAT)
main90467-06085-B2×10i200901-201604
DK.GRAY,TRIM1#
main90467-08104-B2i200902-201405
DK.GRAY,TRIM1#
71601CPAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH
main71601-52G10-B0i200901-201008
DK.GRAY,TRIM1#
main71601-52G11-B3i201008-201604
DK.GRAY,TRIM1#
main71601-52L40-B0i200902-201008
DK.GRAY,TRIM1#
main71601-52L41-B1i201008-201405
DK.GRAY,TRIM1#
main71601-52L51-B1i201008-201108
GRAY,TRIM1#
main71601-52L61-B1i201008-201108
GRAY,TRIM1#
main71601-52Q20-B1i201108-201604
GRAY,TRIM1#
main71601-52Q40-B1i201108-201405
GRAY,TRIM1#
main71601-52F90-B0supersedes 71601-52L50-B0i200901-201008
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE,DK.GRAY,TRIM1#
main71601-52F91-B2i201008-201108
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE,GRAY,TRIM1#
main71601-52L70-B0i200902-201008
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-T125/70D17,DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17),DK.GRAY,TRIM1#; SOL PACKAGE,DK.GRAY,TRIM1#
main71601-52L71-B1i201008-201108
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-T125/70D17,GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17),GRAY,TRIM1#; SOL PACKAGE,GRAY,TRIM1#
71602APAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH
main71602-52460-B0i200901-201008
DK.GRAY,TRIM1#
main71602-52461-B3i201008-201604
DK.GRAY,TRIM1#
main71602-52620-B0i200902-201008
DK.GRAY,TRIM1#
main71602-52621-B1i201008-201405
DK.GRAY,TRIM1#
main71602-52631-B1i201008-201108
GRAY,TRIM1#
main71602-52641-B1i201008-201108
GRAY,TRIM1#
main71602-52820-B1i201108-201604
GRAY,TRIM1#
main71602-52840-B1i201108-201405
GRAY,TRIM1#
main71602-52440-B0supersedes 71602-52630-B0i200901-201008
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE,DK.GRAY,TRIM1#
main71602-52441-B2i201008-201108
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE,GRAY,TRIM1#
main71602-52650-B0supersedes 71602-52640-B0i200902-201008
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-T125/70D17,DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17),DK.GRAY,TRIM1#; SOL PACKAGE,DK.GRAY,TRIM1#
main71602-52651-B1i201008-201108
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-T125/70D17,GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17),GRAY,TRIM1#; SOL PACKAGE,GRAY,TRIM1#
71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH
main71603-52Q01-B2i201008-201108
GRAY,TRIM1#
main71603-52Q60-B1i200901-201008
DK.GRAY,TRIM1#
main71603-52Q61-B2i201008-201604
DK.GRAY,TRIM1#
main71603-52V70-B1i201108-201604
GRAY,TRIM1#
main71603-52Q70-B1i200902-201008
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE,DK.GRAY,TRIM1#
main71603-52Q71-B2i201008-201108
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE,GRAY,TRIM1#
main71603-52Q80-B1i200901-201008
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE,DK.GRAY,TRIM1#
main71603-52Q81-B2i201008-201108
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE,GRAY,TRIM1#
main71603-52Q90-B0i200902-201008
SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SPARE TIRE-T125/70D17,DK.GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17),DK.GRAY,TRIM1#
main71603-52Q91-B1i201008-201405
SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SPARE TIRE-T125/70D17,DK.GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17),DK.GRAY,TRIM1#
main71603-52R00-B0i200902-201008
SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SPARE TIRE-T125/70D17,DK.GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17),DK.GRAY,TRIM1#
main71603-52R01-B1supersedes 71603-52Q11-B2i201008-201108
SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SPARE TIRE-T125/70D17,GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17),GRAY,TRIM1#
main71603-52R10-B0i200902-201008
SOL PACKAGE&SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-T125/70D17,DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17),DK.GRAY,TRIM1#
main71603-52R11-B1i201008-201108
SOL PACKAGE&SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-T125/70D17,GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17),GRAY,TRIM1#
main71603-52V90-B1i201108-201405
SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SPARE TIRE-T125/70D17,GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17),GRAY,TRIM1#
71604DPAD SUB-ASSY, REAR SEATBACK W/COVER, LH
main71604-52F10-B1i200901-201008
DK.GRAY,TRIM1#
main71604-52F11-B2i201008-201604
DK.GRAY,TRIM1#
main71604-52M11-B2i201008-201108
GRAY,TRIM1#
main71604-52Q70-B1i201108-201604
GRAY,TRIM1#
main71604-52E80-B0supersedes 71604-52M20-B0i200902-201008
SOL PACKAGE&SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-T125/70D17,DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17),DK.GRAY,TRIM1#
main71604-52E81-B1i201008-201108
SOL PACKAGE&SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-T125/70D17,GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17),GRAY,TRIM1#
main71604-52L80-B0supersedes 71604-52M10-B0i200901-201008
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE,DK.GRAY,TRIM1#
main71604-52L81-B2i201008-201108
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE,GRAY,TRIM1#
main71604-52L90-B0i200902-201008
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SOL PACKAGE,DK.GRAY,TRIM1#
main71604-52L91-B2i201008-201108
SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SOL PACKAGE,GRAY,TRIM1#
main71604-52M60-B0i200902-201008
SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SPARE TIRE-T125/70D17,DK.GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17),DK.GRAY,TRIM1#
main71604-52M61-B1i201008-201405
SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SPARE TIRE-T125/70D17,DK.GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17),DK.GRAY,TRIM1#
main71604-52M70-B0i200902-201008
SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SPARE TIRE-T125/70D17,DK.GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17),DK.GRAY,TRIM1#
main71604-52M71-B1supersedes 71604-52M21-B2i201008-201108
SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SPARE TIRE-T125/70D17,GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17),GRAY,TRIM1#
main71604-52Q90-B1i201108-201405
SPARE TIRE-T125/70D17&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SPARE TIRE-T125/70D17,GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D17),GRAY,TRIM1#
71778BCOVER, REAR SEAT SIDE HINGE MALE, RH
main71778-52010-B0×3i200901-201604
DK.GRAY,TRIM1#
71833ACOVER, REAR SEAT RECLINING, NO.1 RH
main71833-52050-B1i200902-201405
DK.GRAY,TRIM1#
main71833-52060-B1i200901-201604
DK.GRAY,TRIM1#
71834ACOVER, REAR SEAT RECLINING, NO.1 LH
main71834-52050-B1i200902-201405
DK.GRAY,TRIM1#
main71834-52060i200901-201108
main71834-52060-B1i200901-201604
DK.GRAY,TRIM1#
71875CCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-52121-B0i200901-201604
DK.GRAY,TRIM1#
71875ECOVER, RECLINING ADJUSTER INSIDE, RH
main71875-52130-B0i200901-201604
DK.GRAY,TRIM1#
main71875-52230-B0i200902-201405
DK.GRAY,TRIM1#
71875JCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-52141i200901-201108
main71875-52141-B0i201108-201604
DK.GRAY,TRIM1#
71876BCOVER, RECLINING ADJUSTER INSIDE, LH
main71876-52140-B0i200901-201604
DK.GRAY,TRIM1#
main71876-52200-B0i200902-201405
DK.GRAY,TRIM1#
71876ECOVER, RECLINING ADJUSTER INSIDE, LH
main71876-52121i200901-201108
main71876-52121-B0i201108-201604
DK.GRAY,TRIM1#
71876JCOVER, RECLINING ADJUSTER INSIDE, LH
main71876-52130i200901-201108
main71876-52130-B0i201108-201604
DK.GRAY,TRIM1#
71878ACOVER, REAR SEAT RECLINING, INNER RH
main71878-52070i200901-201108
main71878-52070-B2i200901-201604
DK.GRAY,TRIM1#
main71878-52140-B0i200902-201405
DK.GRAY,TRIM1#
71879ACOVER, REAR SEAT RECLINING, INNER LH
main71879-52130-B0i200902-201405
DK.GRAY,TRIM1#
main71879-52150-B0i200901-201604
DK.GRAY,TRIM1#
71931ASUPPORT, REAR SEAT HEADREST
main71930-52030-B0×3i200901-201604
W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#
main71931-42020-B4×3i200901-201604
W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#
71940AHEADREST ASSY, REAR SEAT
main71940-52490-B0i200901-201008
DK.GRAY,TRIM1#,LH SEAT
main71940-52491-B0×2i201008-201604
DK.GRAY,TRIM1#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-52320-B0i200901-201008
DK.GRAY,TRIM1#
main71960-52321-B0i201008-201604
DK.GRAY,TRIM1#
main71960-52490-B0i200902-201008
DK.GRAY,TRIM1#
main71960-52491-B0i201008-201405
DK.GRAY,TRIM1#
72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
main72057-52010-B0i200901-201604
DK.GRAY,TRIM1#
main72057-52020-B0i200902-201405
DK.GRAY,TRIM1#
72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
main72057-52020-B0i200902-201405
DK.GRAY,TRIM1#
main72058-52010i200901-201108
main72058-52010-B0i200901-201604
DK.GRAY,TRIM1#
72160TRACK ASSY, REAR SEAT, OUTER RH
main72160-52060i200901-200911
main72160-52080i200911
72170TRACK ASSY, REAR SEAT, OUTER LH
main72170-52060i200901-200911
main72170-52070i200911
72180CTRACK ASSY, REAR SEAT, INNER RH
main72160-52070i200901-200911
main72160-52090i200911
72190TRACK ASSY, REAR SEAT INNER, LH
main72170-52020i200911-201305
main72170-52050i200901-200911
main72170-52080i201306
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
main72615-52070-B0i200901-201604
DK.GRAY,TRIM1#
72615BCOVER, REAR SEAT LOCK STRIKER, RH
main72615-52070-B0i200901-201604
DK.GRAY,TRIM1#
72681HOOK, REAR SEATBACK LOCK, LOWER
main72681-52010i200901
72704ACABLE, REAR SEAT RECLINING CONTROL
main72704-52150i200901
72704BCABLE, REAR SEAT RECLINING CONTROL, NO.2
main72704-52170i200901
72704FCABLE, REAR SEAT RECLINING CONTROL, NO.3
main72704-52160i200901
72704GCABLE, REAR SEAT RECLINING CONTROL, NO.4
main72704-52180i200901
72749SPACER, REAR SEAT RECLINING
main72749-48010×2i200901
72749ASPACER, REAR SEAT RECLINING
main72749-48010i200901
73383HOOK, RR SEAT BELT
main73383-33020i200901
78950BAND ASSY, FOLD SEAT STOPPER, NO.1
main78950-52030i200901
78955COVER, REAR SEAT UNDER TRAY RH
main78955-52010i200901
78955ACOVER, REAR SEAT UNDER TRAY
main78955-52020i200901
79236ACOVER, NO.2 SEAT LEG
main79236-52020-C0×2i200901-201604
BLACK,TRIM1#
79246BCOVER, NO.2 SEAT LEG, B
main79246-52020-C0i200901-201604
BLACK,TRIM1#
7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52030
7889948010BOLT, FRONT SEAT
main78899-48010
9010906272
main90109-06272
9016740044
main90167-40044
9046400165
main90464-00165
9094901C02
main90949-01C02
9095901369
main90959-01369
9155180614
main91551-80614
9356054014
main93560-54014
9415081000
main94150-81000
9415120801
main94151-20801

59 parts on this diagram · 2 diagrams in section
